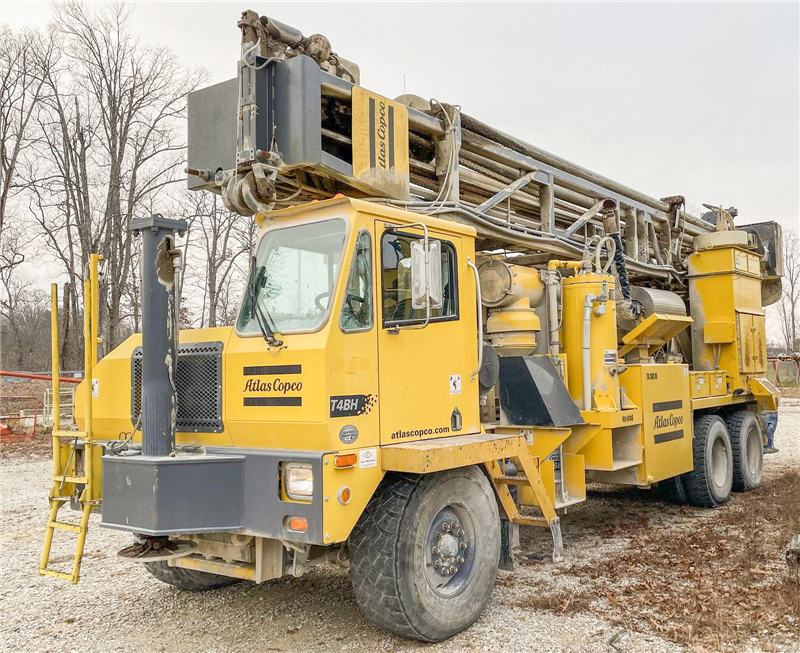

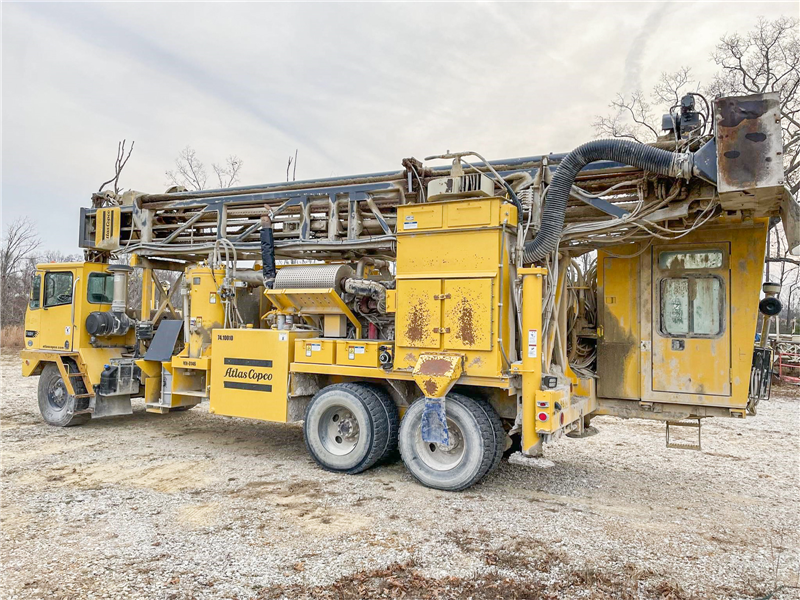

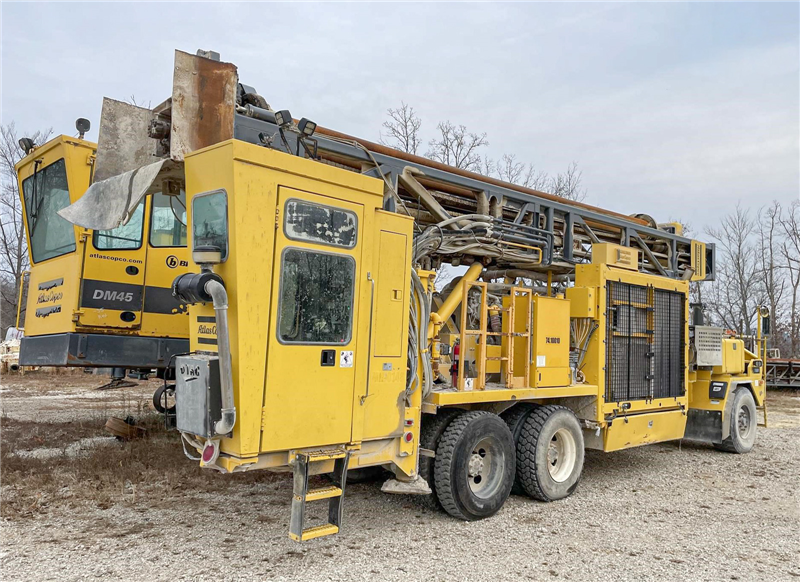

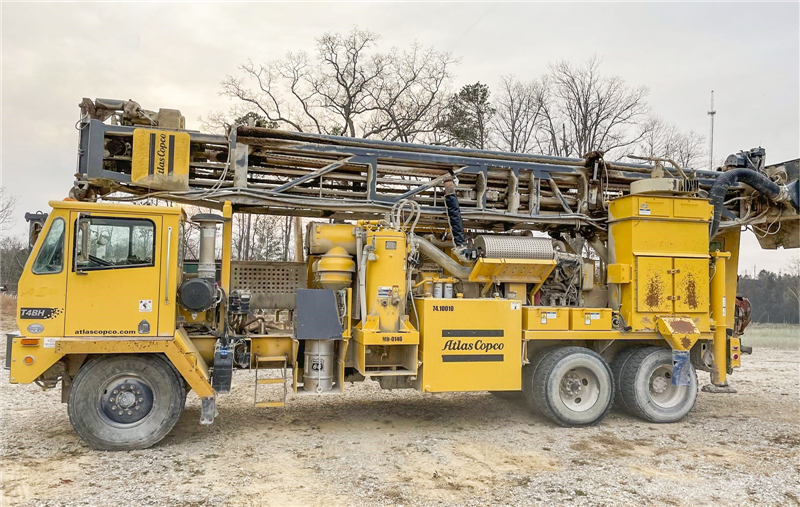

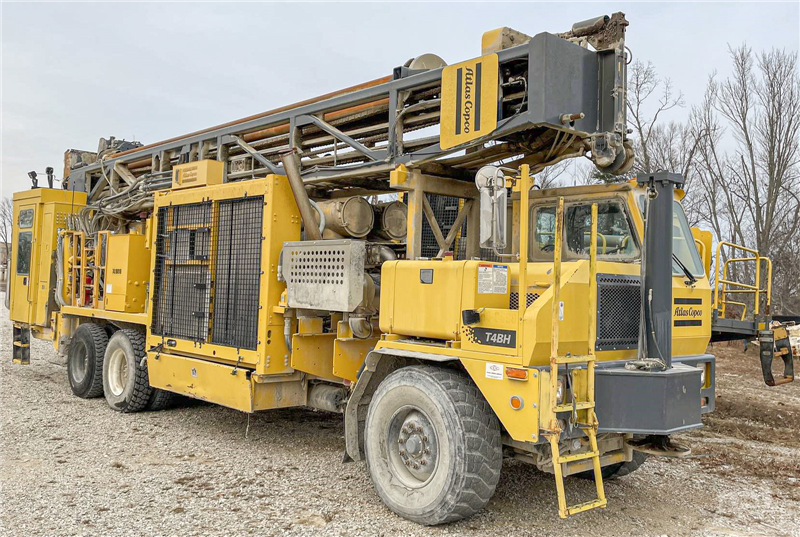

2014 Atlas Copco T4BH Blast Hole Drill Rig

2014 Atlas Copco T4BH Blast Hole Drill Rig – Multi-Pass DTH/Rotary

Key Specs:

• Drilling: DTH or Rotary – Multi-Pass
• Hole Diameter: 5-5/8" To 9-7/8" (143–251 Mm)
• Max Depth W/ 25-Ft Tower: 147 Ft 6 In (45 M)
• Set Up For 5" X 25' Drill Rod
• 225-gallon (852 L) fuel tank
• Cooling Package rated to 125°F (52°C)
• EARS System

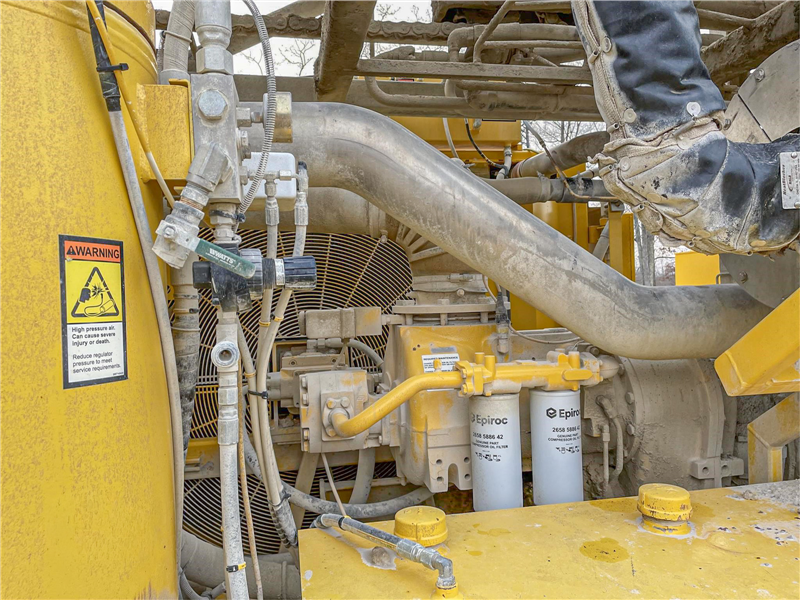

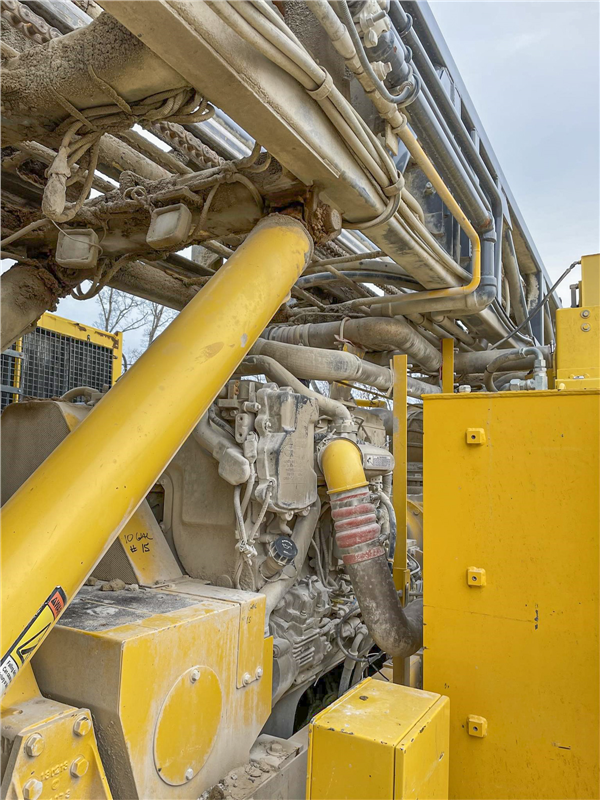

Engine & Air:

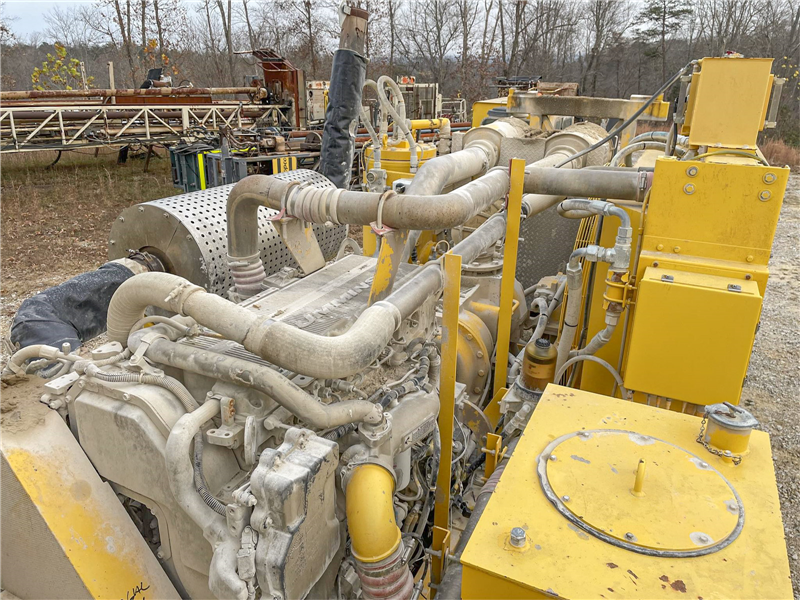

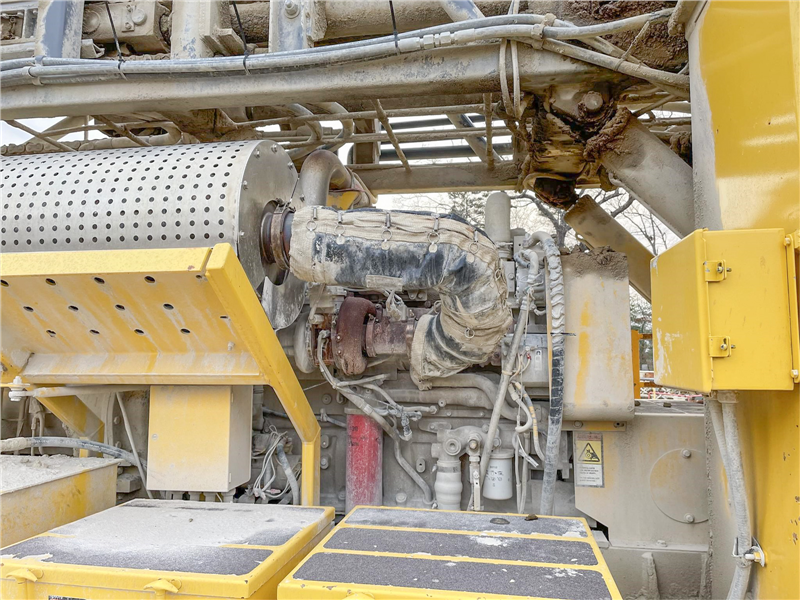

• Cummins QSX15 Tier 4 Diesel Engine
• 1070 CFM / 350 PSI Ingersoll-Rand HR2.5 Air Compressor
• Separate Air Intake Filtration for Engine & Compressor
• Heavy-Duty Engine Silencer / Muffler

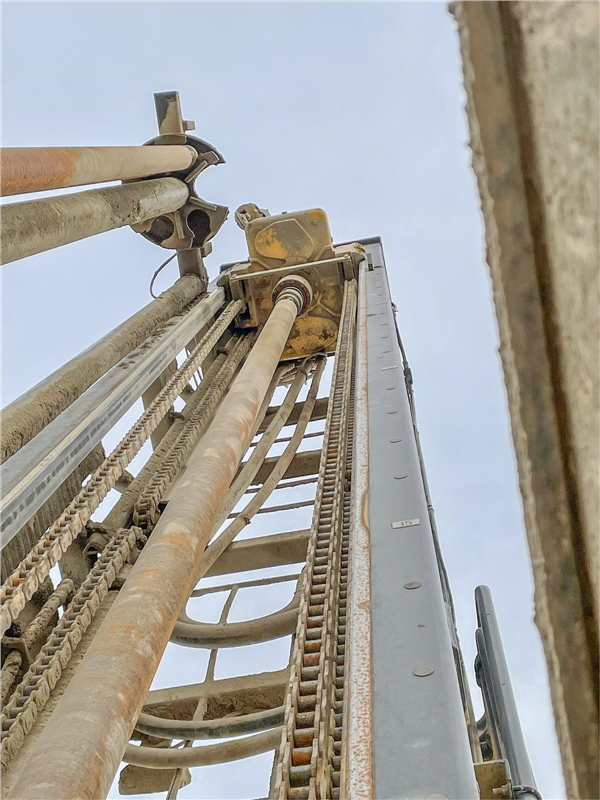

Rotary Head & Feed:

• 4SV-2-10 Spur-Gear, 2-Motor Rotary Tophead
• Speed: 0–160 RPM
• Max Torque: 6,000 lb.-Ft
• Foremost Cushion Sub
• Rebuilt-Ready for Water-Well Conversion Packages (See Upgrade Notes)

Pipe Handling & Tooling:

• 5 Rod Carousel – (5" OD x 25')
• Remote Hydraulic Fork Chuck for Breakout
• Auxiliary Hoist for Pipe & Accessories
• Hydraulically Powered Auxiliary Chain Wrench
• 4,000-lb Winch
• Hammer Lubricator
• Auto-Lube System

Dust Control:

• Tipton FC3600 Dust Collector

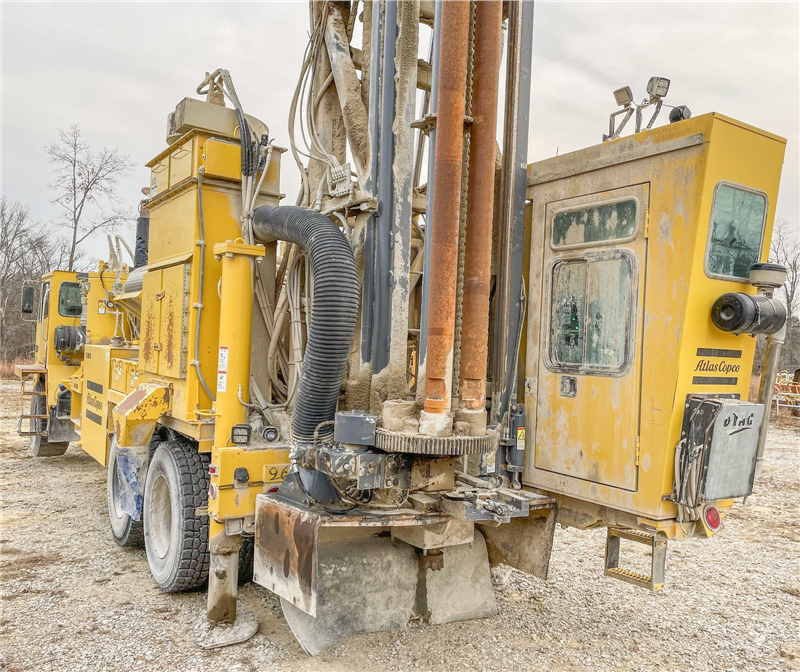

• Rectangular Dust Hood with Skirting Handling Ambient

Cab & Lighting:

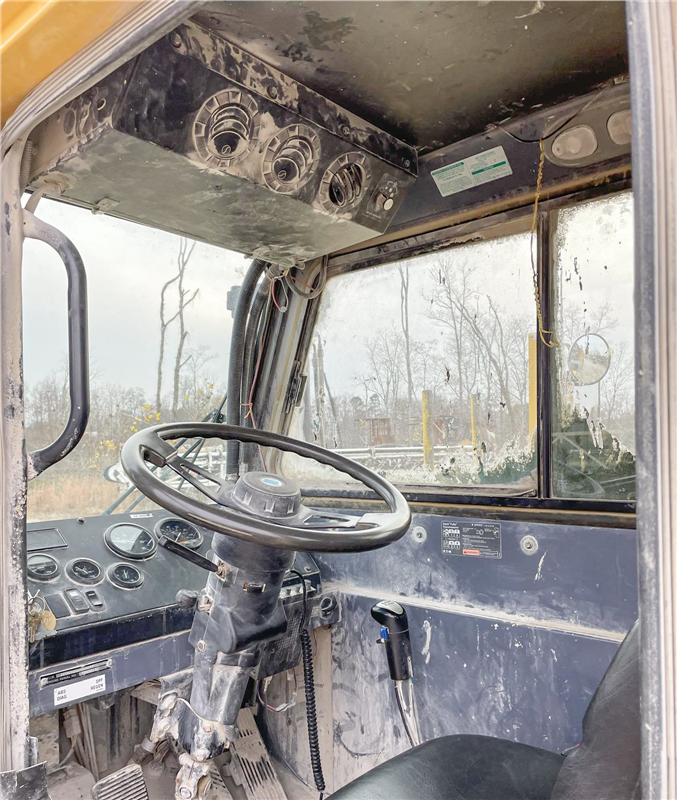

• Spacious, Insulated, Sound-Attenuated Cab (Removable)
• Can Be Converted to Water-Well Style Control Station
• Six Quartz-Halogen Night Work Lights

Leveling:

• Three 48-In (1,219 mm) Stroke Leveling Jacks

Upgrade / Conversion Options (Additional Cost):

This Rig Can Be Retrofitted to T4W or T4W-DH Configuration for:

• Hole Diameters up to 20" (508 mm)
• Depths to 2,000 ft (610 m)

Conversion package options

• Dust Collector Removal
• 7-Rod Carousel + 4-Rod Lazy-Susan
• Dual Jib Booms
• Control Panel Replaced with Water-Well Style Control Station
• Platform Instead of Cab
• New Chain & Rebuilt Feed Cylinders (50k or 70k Pullback)
• Table Reconfigured for Water-Well Drilling
• General Repairs & Service to Ensure Ready-To-Work Condition

Location:

·      Eastern Region, USA
