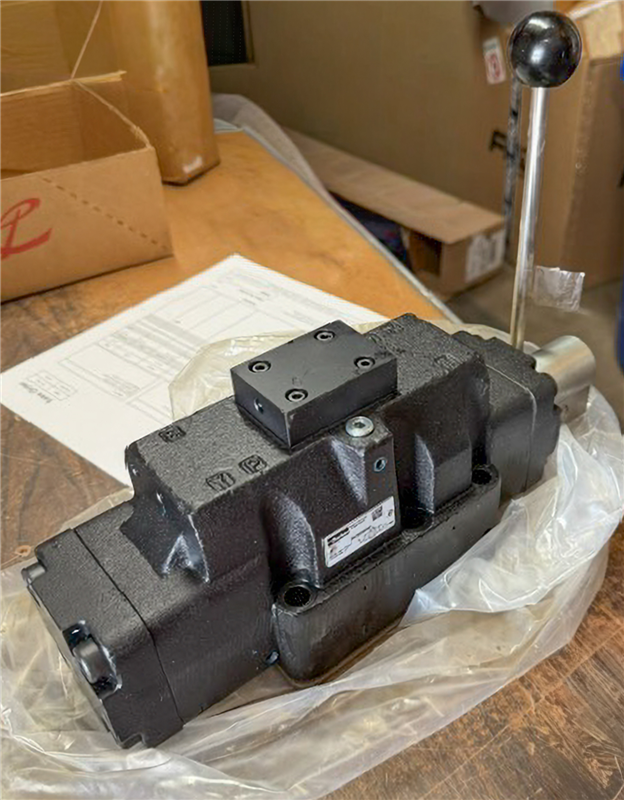

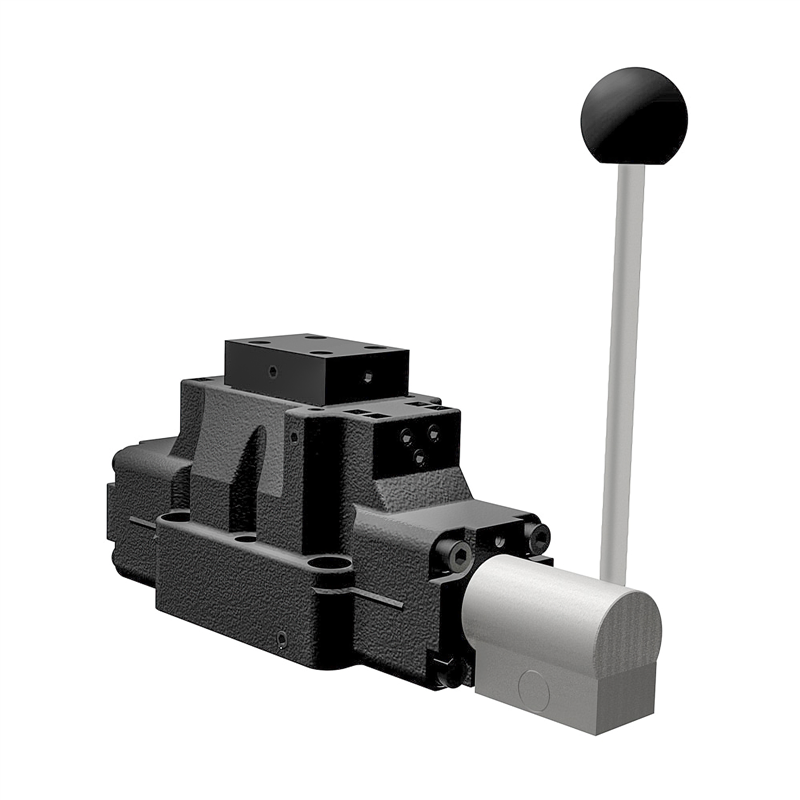

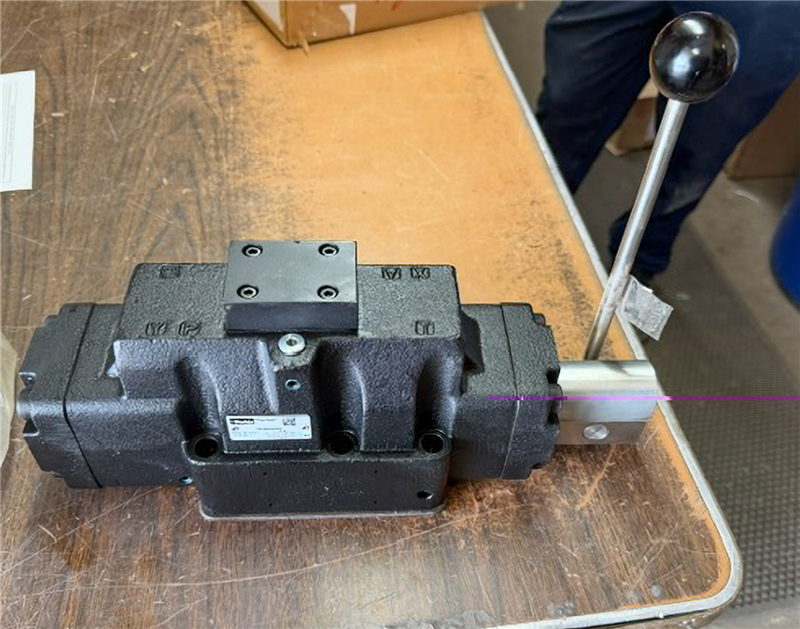

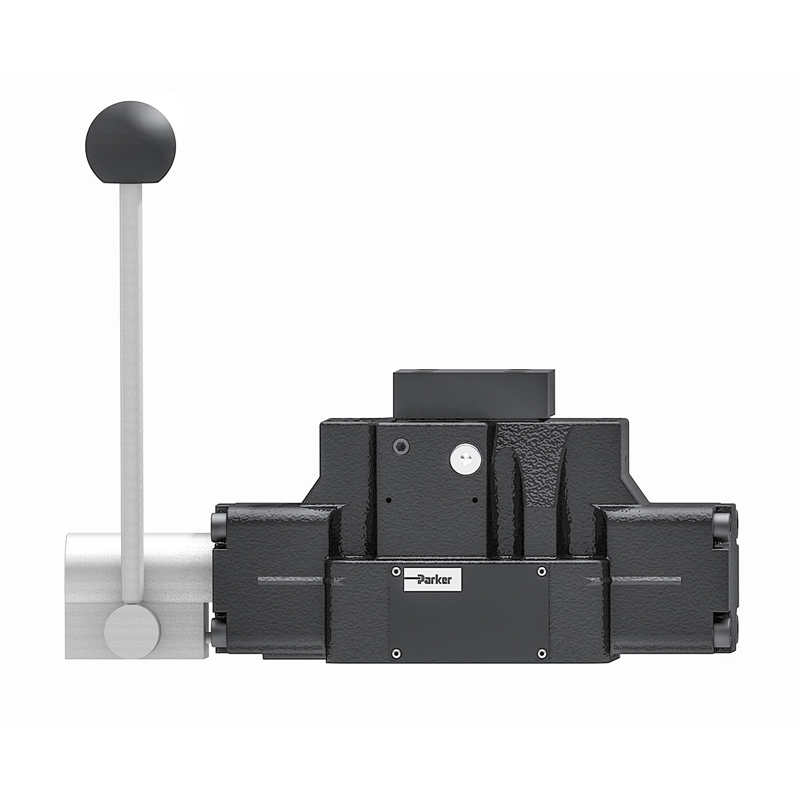

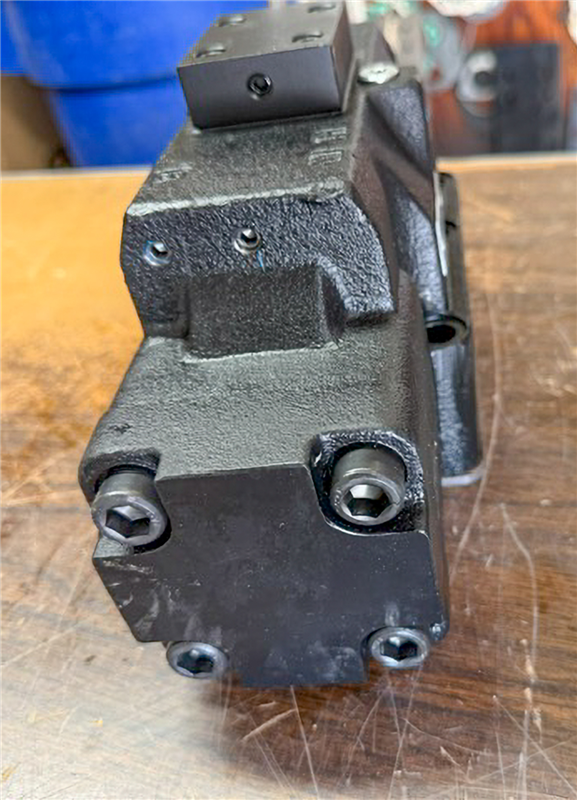

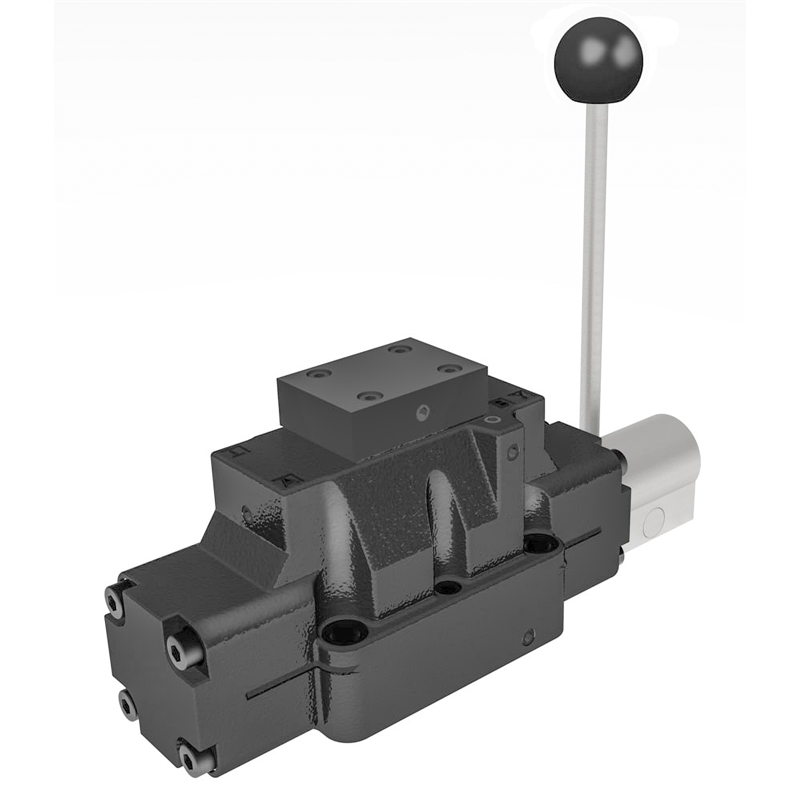

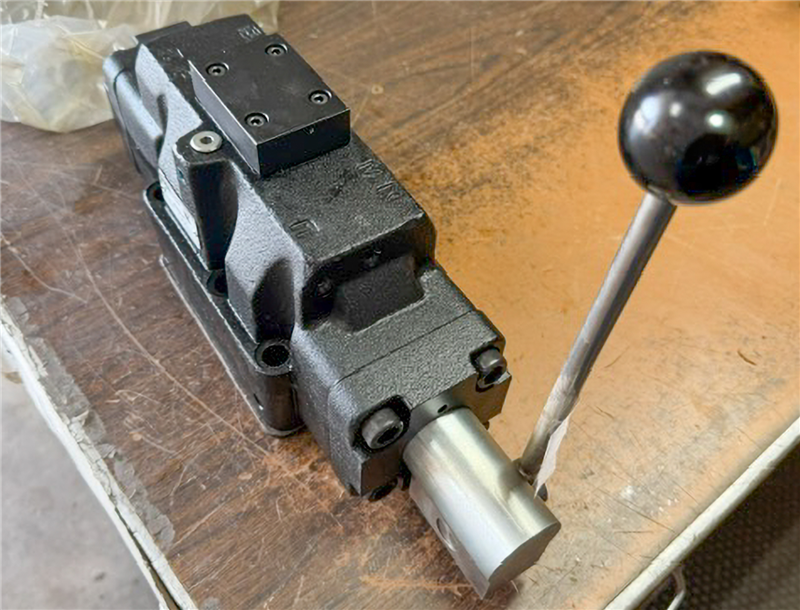

Directional Control Valve – Series D4L / D9L Manual Hydraulic Control Valve

Item No
17359
Condition
New
Manufacturer
Parker
Status
Available
Model Year
0
Model No
D9LB009N2N
Quantity
5
Price
$1,600.00
Description

Directional Control Valve – Series D4L / D9L Manual Hydraulic Control Valve

  • Series D4L (NG16 / CETOP 07 / NFPA D07)
  • Series D9L (NG25 / CETOP 08 / NFPA D08)

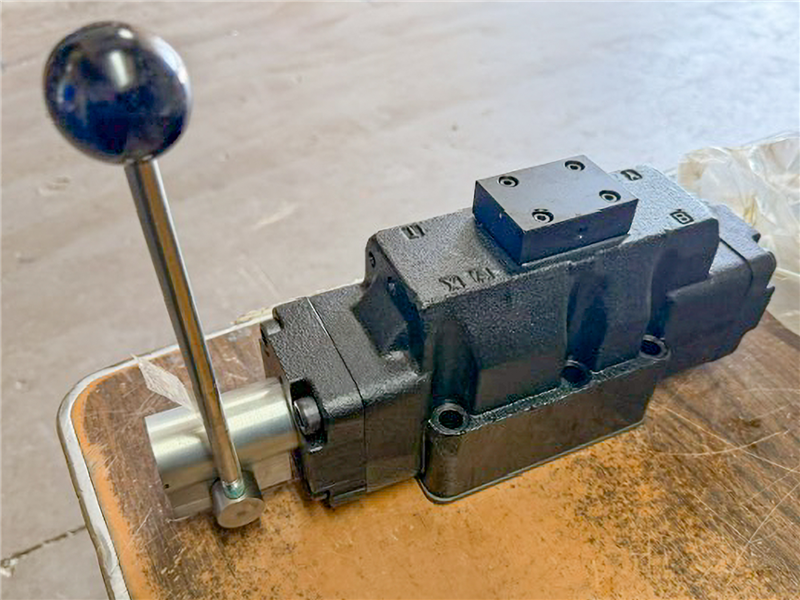

  • Hand Lever Operation
  • Direct Acting Directional Control Valve
  • Subplate Mounting Design
  • Suitable For Unrestricted Mounting Positions (Horizontal Preferred)

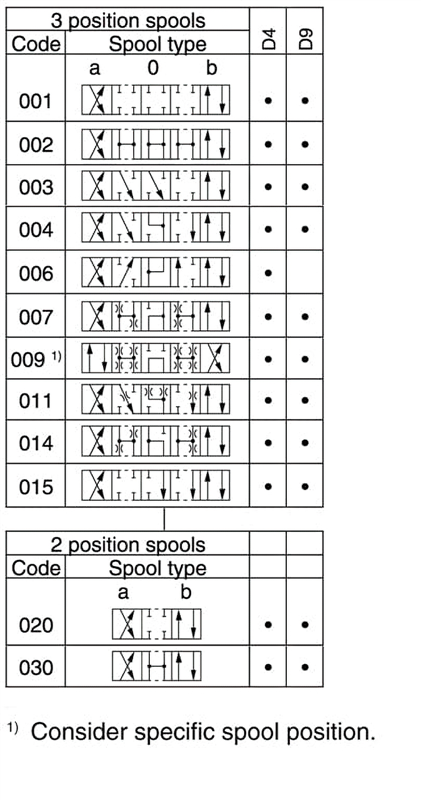

  • Function of 2-Way, 3-Way
  • Manual Actuation Type

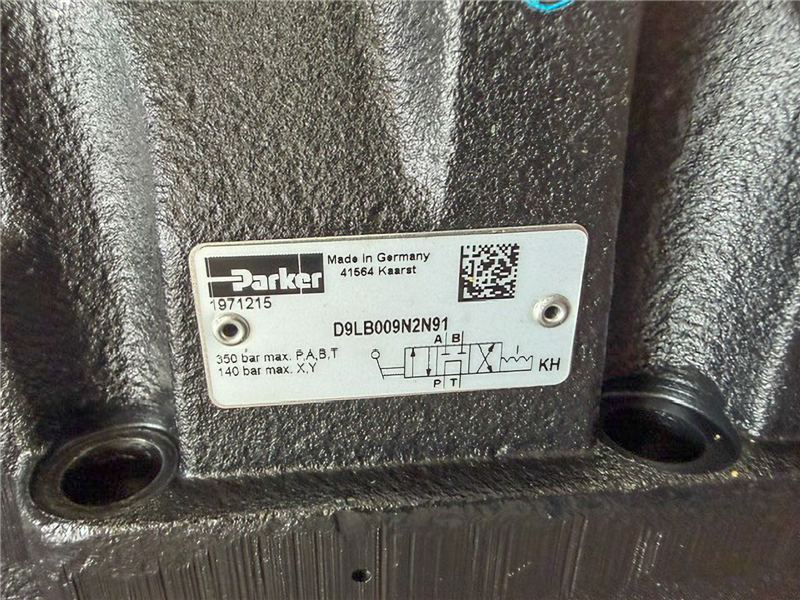

  • Part Number: D9LB009N2N

Performance:

  • Maximum Operating Pressure: 350 bar
  • Maximum Flow Capacity:
  • D4L: 300 L/min
  • D9L: 700 L/min
  • Operating Temperature Range:
  • Minimum: -25°C (-13°F)
  • Maximum: 60°C (140°F)

Fluid Compatibility:

  • Hydraulic Oil According to DIN 51524
  • Water Glycol Fluid

Construction:

  • Cast Iron Body
  • Seal Material:
  • NBR
  • FPM

Weights:

  • D4L: 9.0 kg (19.8 lbs)
  • D9L: 17.0 kg (37.5 lbs)

Applications:

  • Drill Rigs
  • Hydraulic Power Units
  • Construction Equipment
  • Industrial Machinery
  • Material Handling Equipment
  • Mobile Hydraulic Systems
  • Agricultural Equipment

Location:

Mifflinburg, PA, USA
