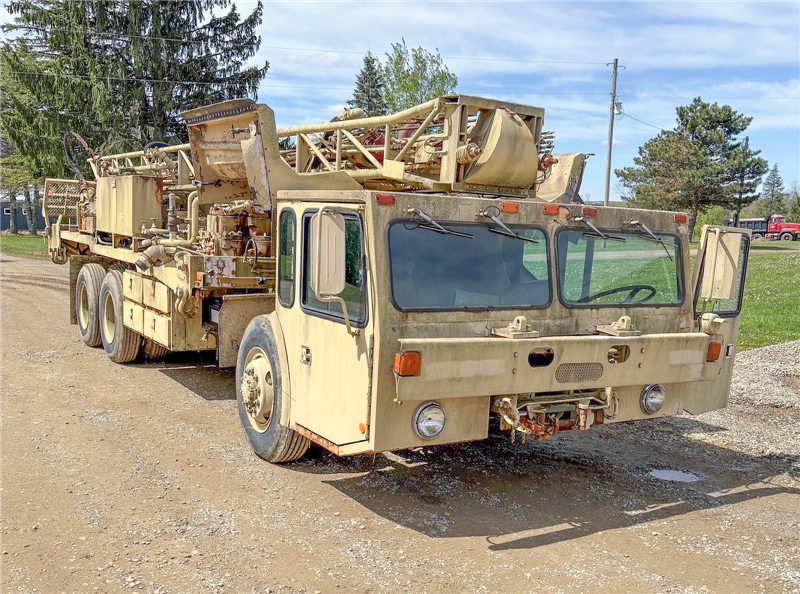

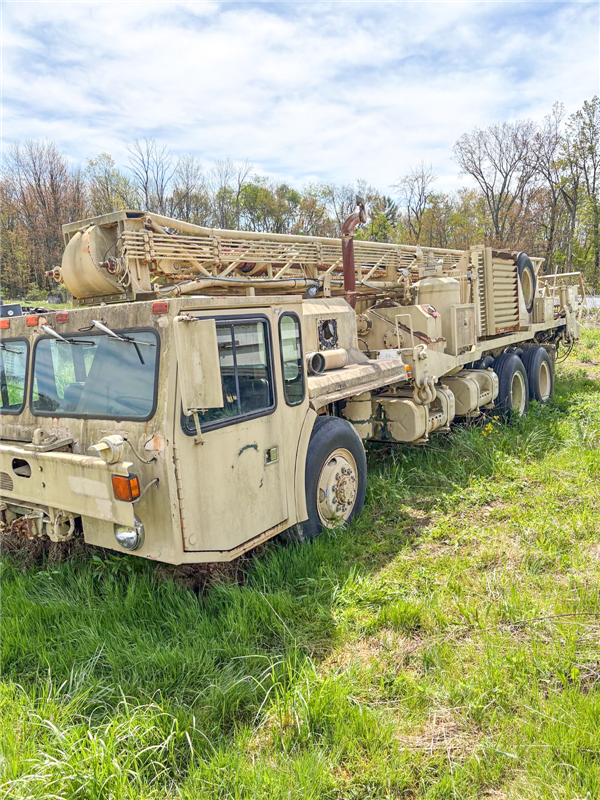

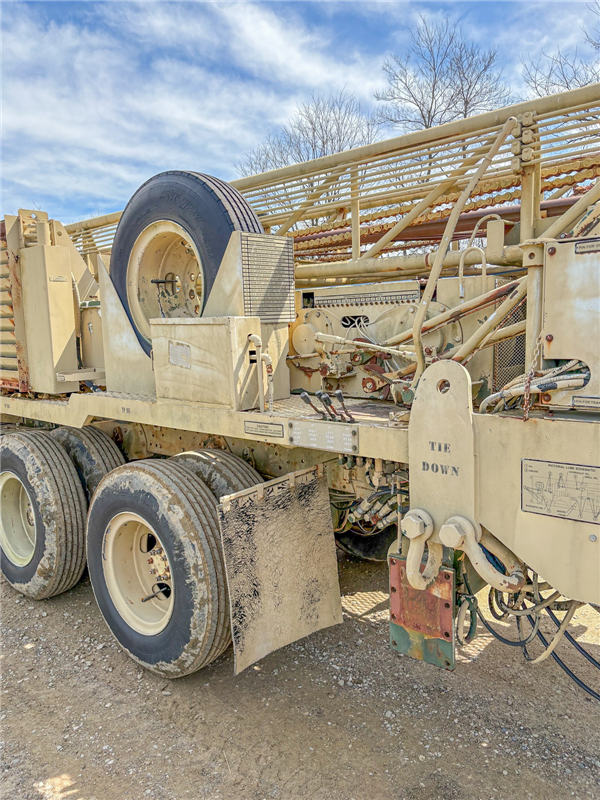

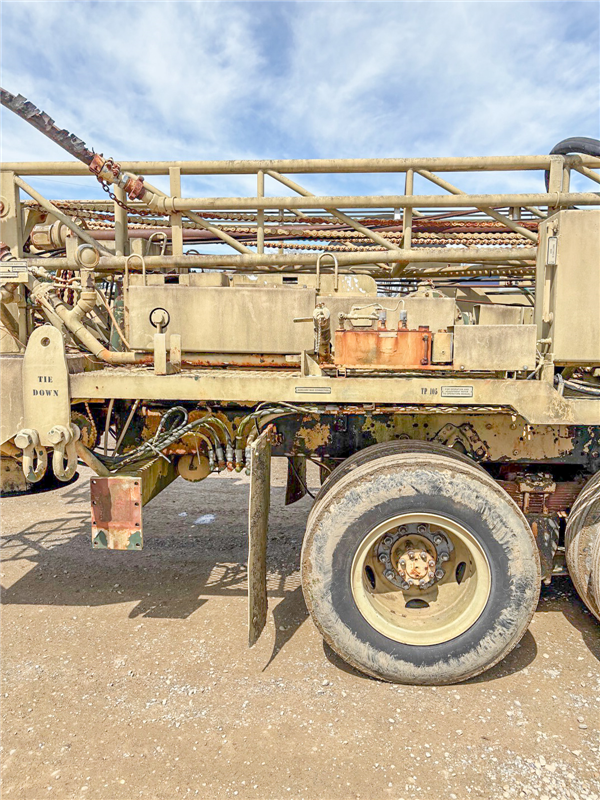

GEFCO LP-12 Low Profile 1200-Foot Rig

GEFCO LP-12 (Low Profile 1200-Foot Rig)

·      LP-12 Is Essentially a Failing Model 1250, but with a Lowered Mast Pivot Point

·      Rated Drilling Depth: 1,500 Ft.

·      Designed For Drilling in All Types of Formations

·      Self-Propelled For Easy Jobsite Mobility

·      Maximum Transport Height: 8 Ft.

·      Mud Pump

·      Air Compressor

·      Foam Injection Pump

·      Water Injection Pump

Low-Profile Advantages:

• Compact 8-Foot Maximum Height Allows Access to Low-Clearance Areas
• Highly Maneuverable in Mountainous Areas, Narrow Streets, Underpasses, and Confined Job Sites
• Low Center of Gravity Improves Stability on Uneven Terrain

Transportation:

·      The LP (Low Profile) 12 Is A Special Drill Designed to Fit Inside a Large Airplane for Rapid Transport to Remote Sites.

·      It Is Also Transportable by Highway, Rail, Marine

Rated Capacity:

• 1500 Ft (457.2 M) Holes
• With 4½ In. (114.3 Mm) Aluminum Drill Pipe
• Designed To Handle Casing Loads Up To 30,000 Lbs. Using a Single Sheave Block

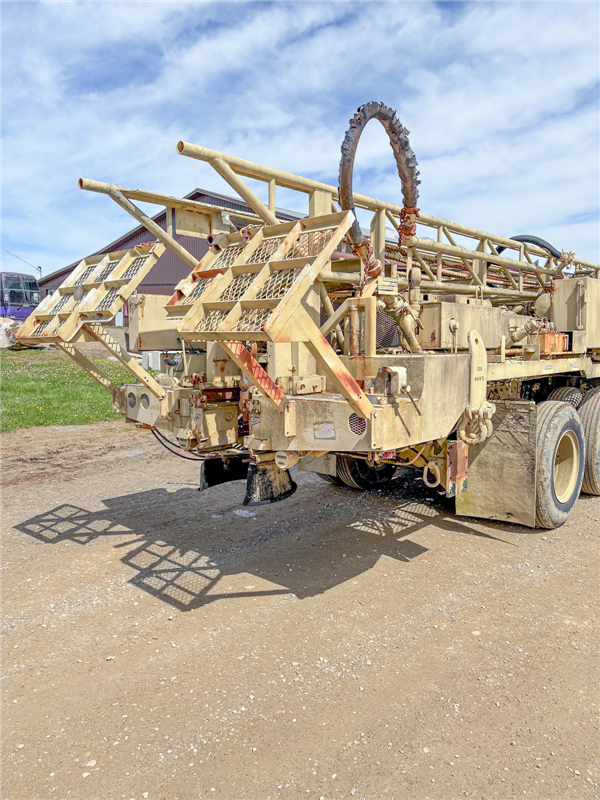

Mast:

• Electrically Welded from Cold Drawn Steel Tubing
• Rigid Structural Sections
• Raised And Lowered by Two Double-Acting Hydraulic Cylinders

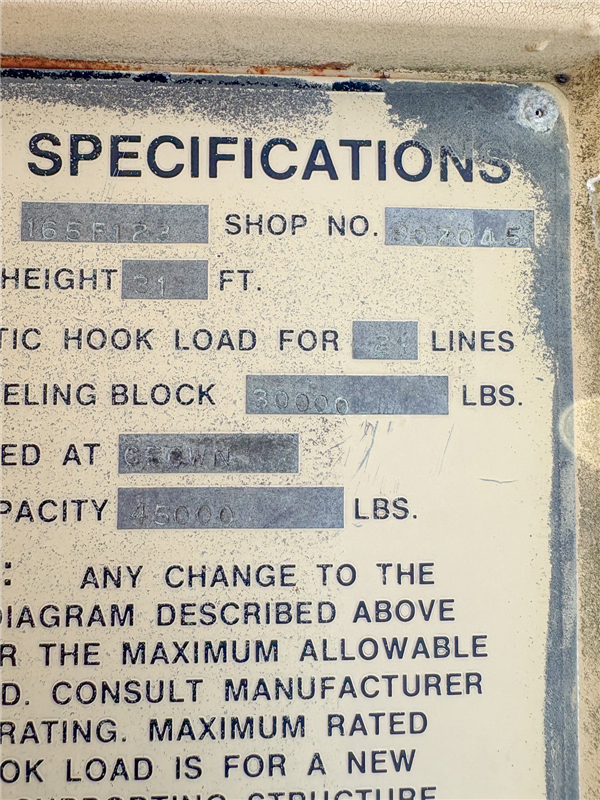

Mast Specifications:

• Height: 31 Ft 6 In (9.61 M)
• Clearance Above Table for Using 20 Ft (6.1 M) Drill Pipe
• Total Gross Capacity: 45,000 Lbs. (20,412 Kg)
• Maximum Hook Capacity: 30,000 Lbs. (13,608 Kg) With Single Sheave Block

Crown:

• 2 Sheaves for Wire Line
• Angled Over Hole and Drums
• Roller Bearing
• 1 Sheave for Third Drum
• Spring Tension Provided in Crown for Each Pulldown Chain

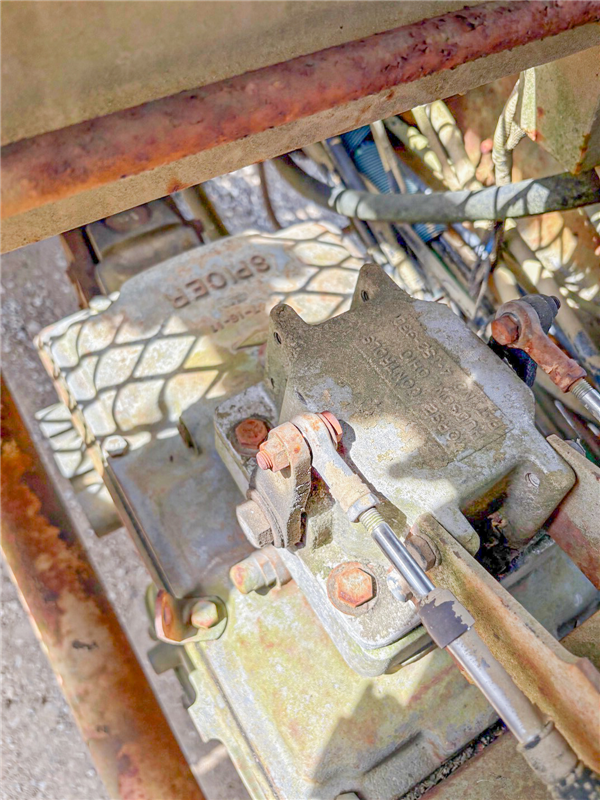

Drawworks:

• Two Identical Drums
• Spiral Bevel Gear Drive
• Oil Bath Lubrication
• Air Clutch on Each Drum
• Third Drum for Sand Reel for Bailing
• Friction Clutch

Main Drums:

• Spool diameter: 7 in. (17.78 cm)
• Spool length: 4½ in. (11.43 cm)
• Maximum Single Line Pull: 15,000 lbs. (6,804 kg)
• Brake: 16 in × 4½ in. Single (40.64 × 11.43 cm)
• Line capacity: ⅝ in × 200 ft (1.27 cm × 61 m)
• Clutches: 14 in. Two-Plate (35.56 cm)

Third Drum:

• Spool diameter: 7 in. (17.78 cm)
• Spool length: 4 1/2 in. (11.43 cm)
• Maximum single line pull: 15,000 lbs (6,804 kg)
• Brake: 16 × 4½ in. single (40.64 × 11.43 cm)
• Clutch: 11 in. 3 Plate (27.94 cm)

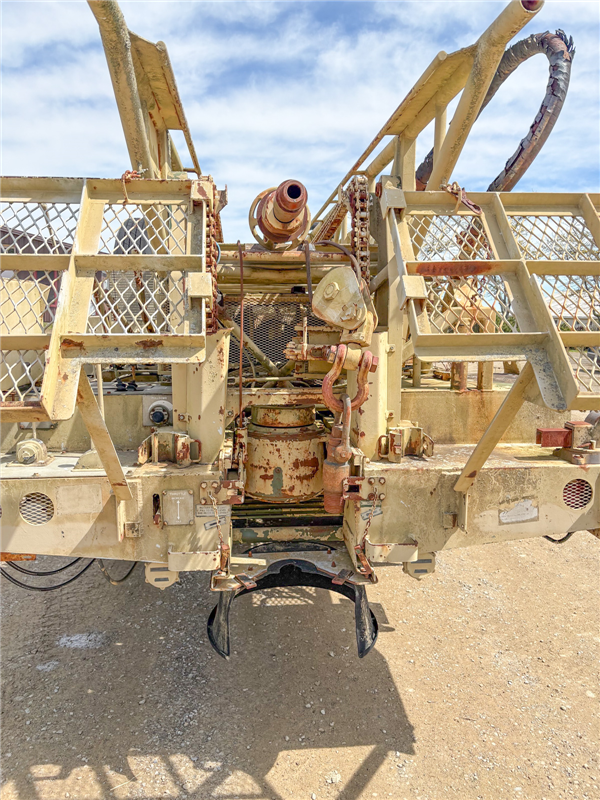

Rotary Table:

• Retractable Hydraulically
• 14 In.
• Spiral Bevel Gears
• Oil Bath Lubrication
• Tapered Roller Bearings Throughout

Opening:

• 7½ in. (19.05 cm)
• 5¼ in. (13.34 cm)
• 8 in. (20.32 cm)

Pulldown:

• Hydraulic Motor Drive
• Two 1½ In. Pitch Chains
• Two-Speed Transmission
• Holdback Feature Optional
• Low gear: 4,600 lbs. per 100 psi hydraulic pressure
• High gear: 2,900 lbs. per 100 psi hydraulic pressure

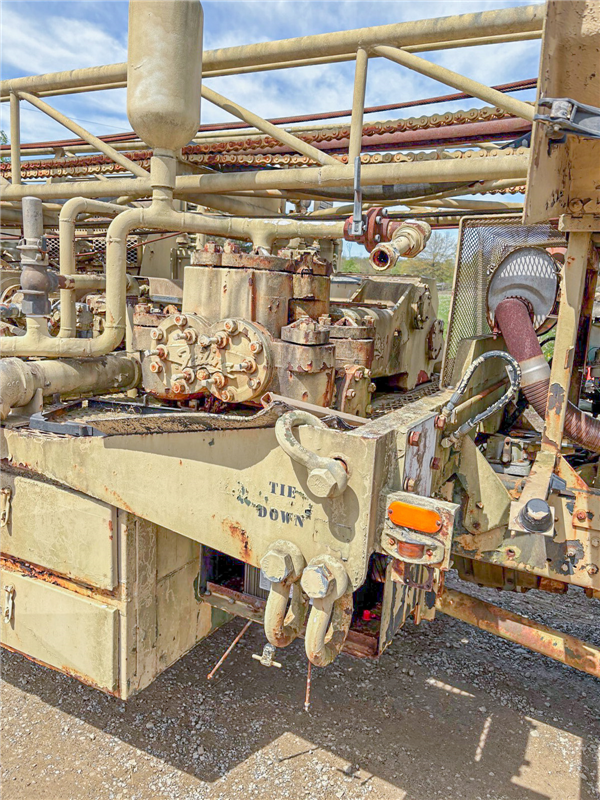

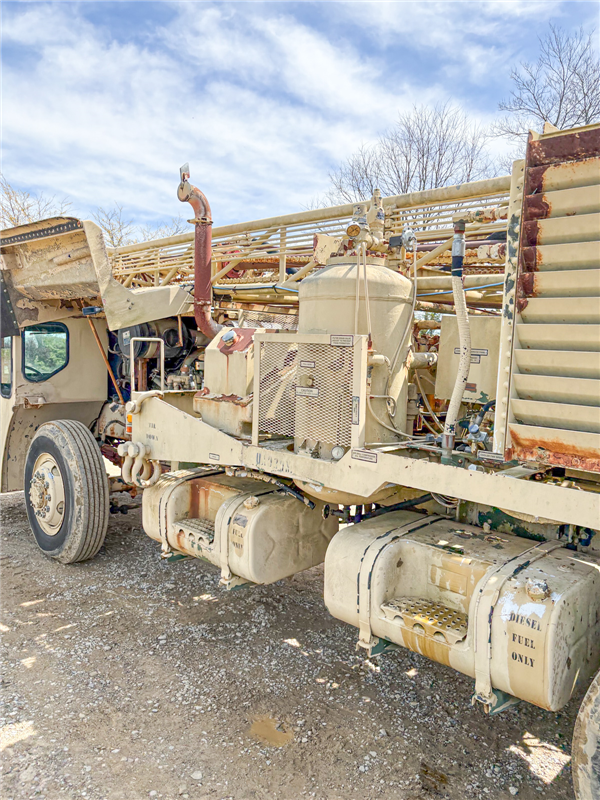

Mud Pump:

• Chain Drive with Air Clutch
• Failing Model FM-45
• 5 × 6 1/2 in. (12.7 × 14.88 cm)
• Duplex Reciprocating Type Power Pump

Air Compressor:

• Single Screw Design
• 350 CFM @ 215 PSI

Hydrostatic Rotary Drive:

• Fluid Motor Flange-Mounted to A 4-Speed Transmission

Performance:

• Rotary speeds: 0 to 113 RPM
• Rotary torque: 12,000 lb.-ft at Stall

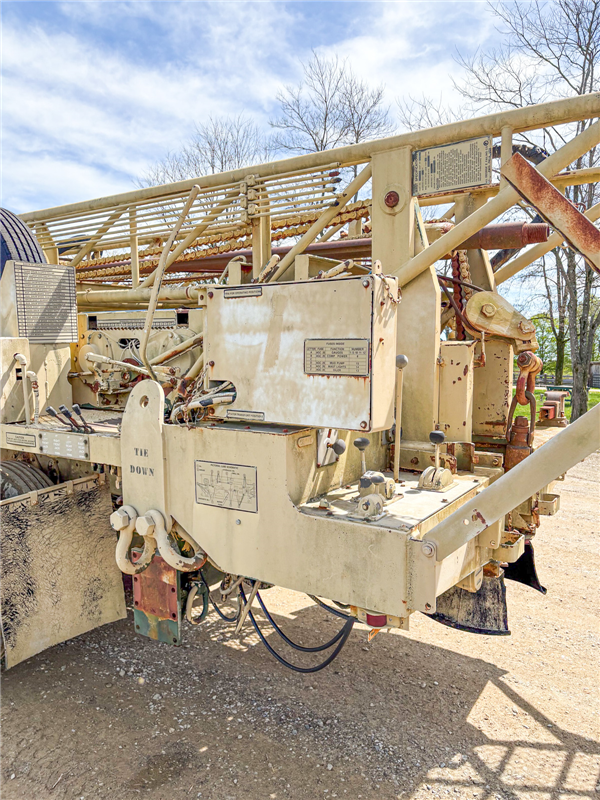

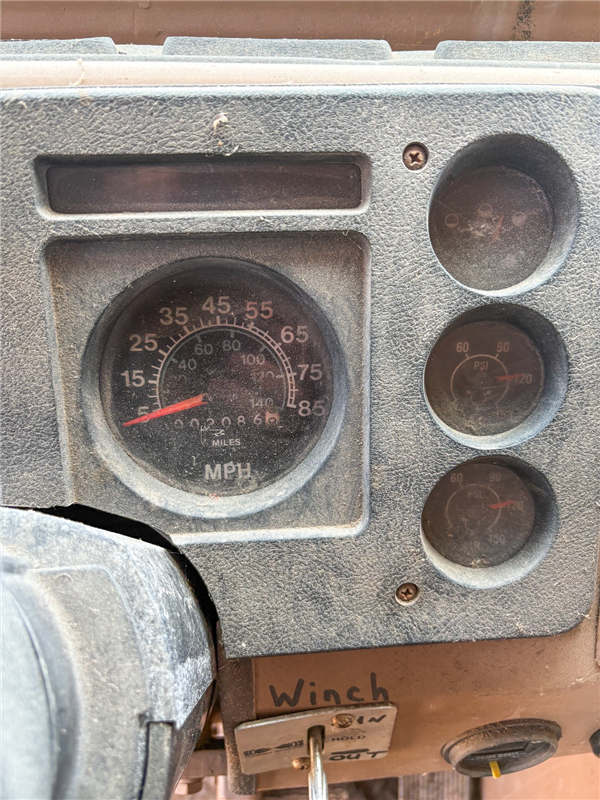

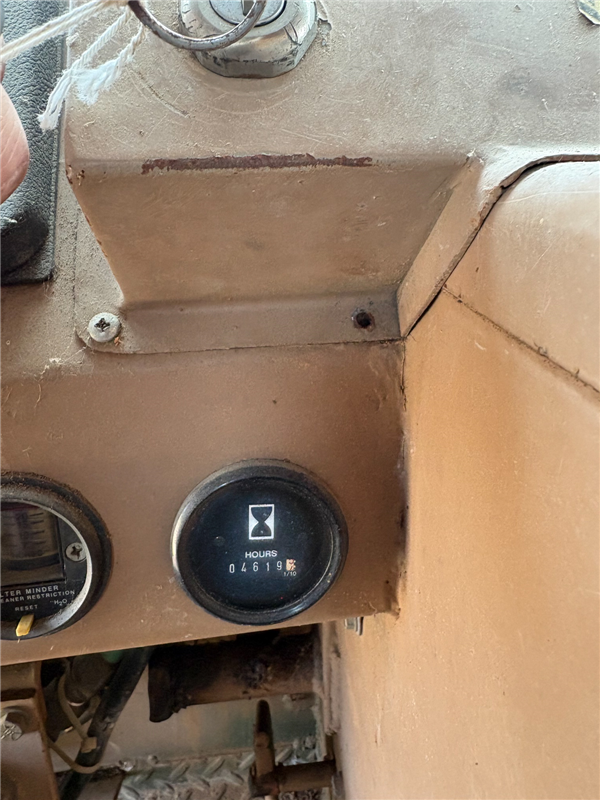

Controls:

• Engineered Design
• Conveniently Grouped at Driller's Station
• Safety Switch
• Engine Starter Button

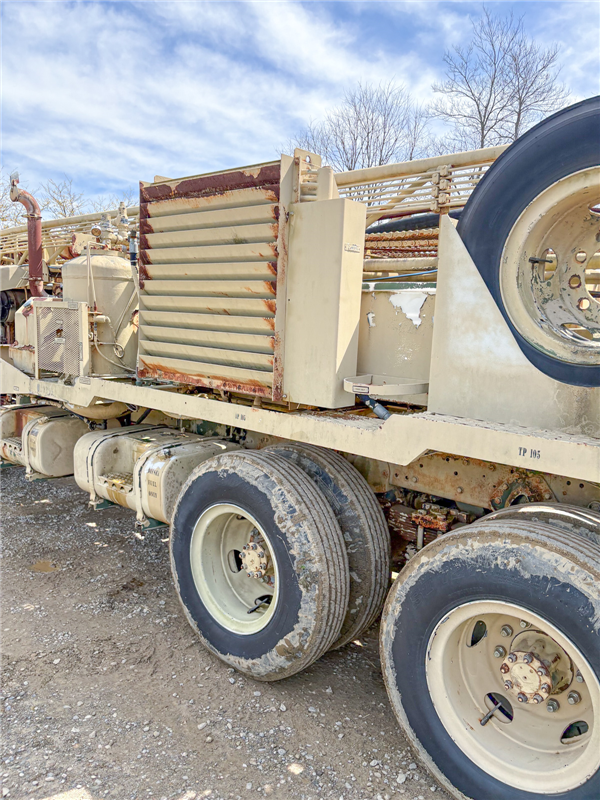

Mounting:

• Low-Profile Design

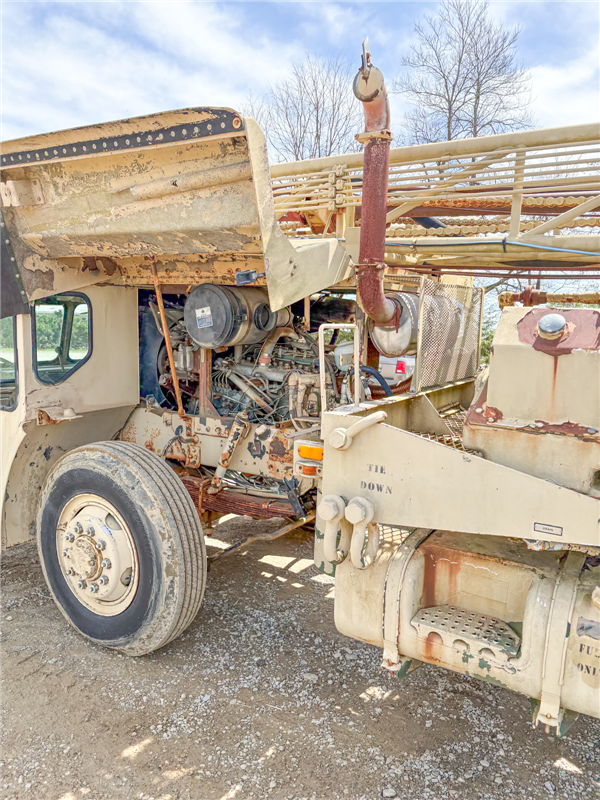

• Truck Engine Powers Rig Through Power Take-Off and Sub-Drive Arrangement

Location:

• Pennsylvania, USA
