2008 Schramm TXD200 Drill Rig

2008 Schramm TXD200 Drill Rig

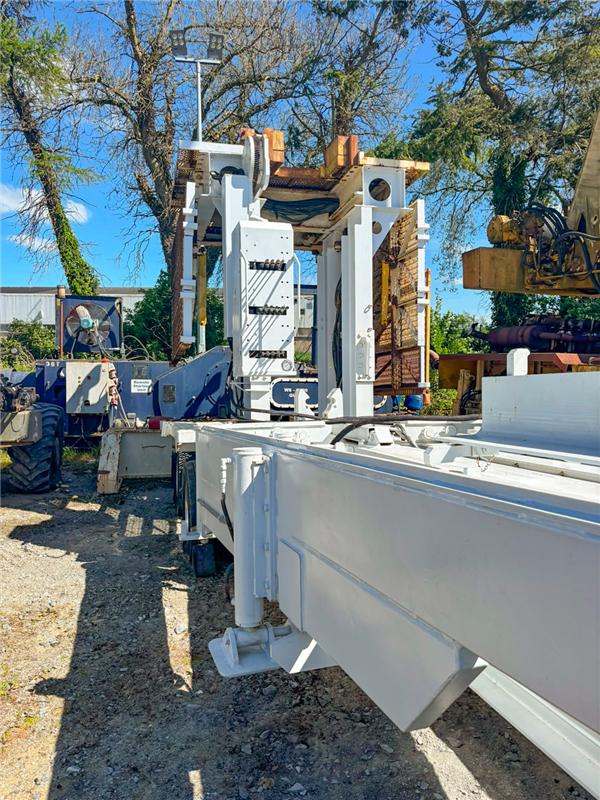

Key Features

• 2008 Schramm TXD 200
• Approximately 8,580 Original Hours
• One-Owner Machine
• Only Drilled 4 Wells Since New
• Stored Indoors for The Past Several Years

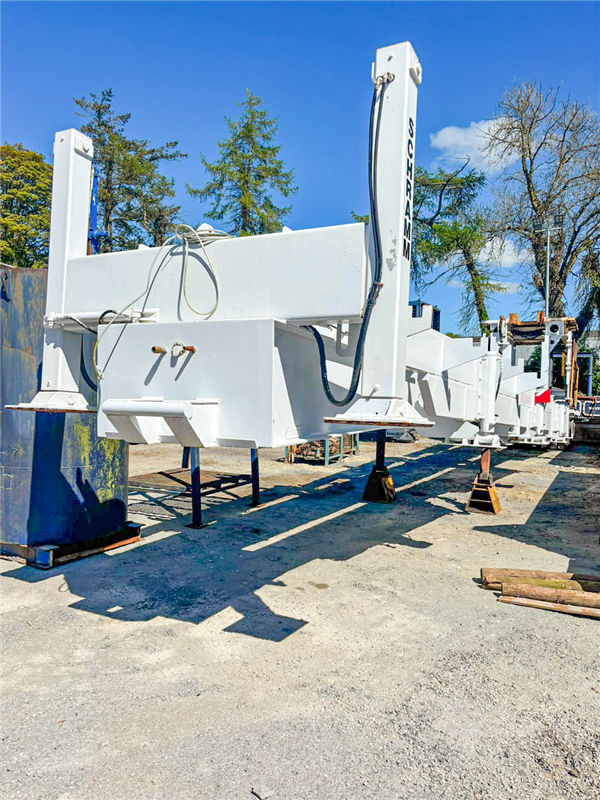

• Schramm Telemast® Telescoping Mast
• Loadsafe® Automated Pipe Handling System
• 200,000 Lb. Hoist Capacity
• 32,000 Lb. Pulldown
• 50 Ft Head Travel
• Range III Tubular Capability
• Heavy-Duty Tilting Top Head Drive

Recently Serviced & Refurbished

An Extensive Refurbishment Has Recently Been Completed, Including:

• Rig And Loadsafe Loader Primed and Painted

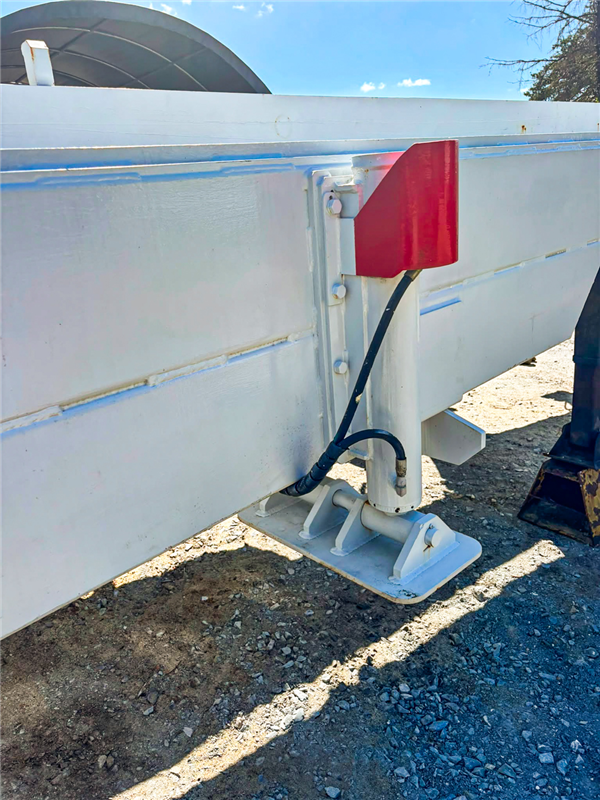

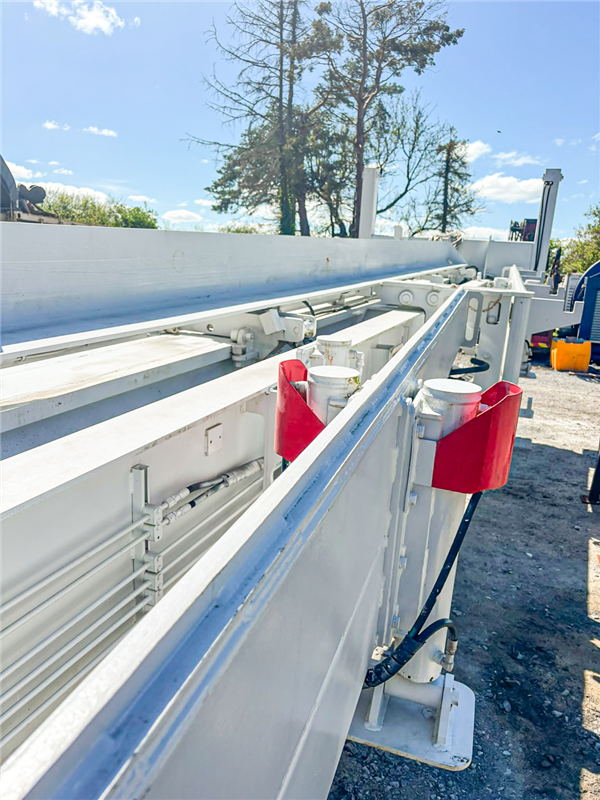

• (10) New Loadsafe Jack Leg Cylinders

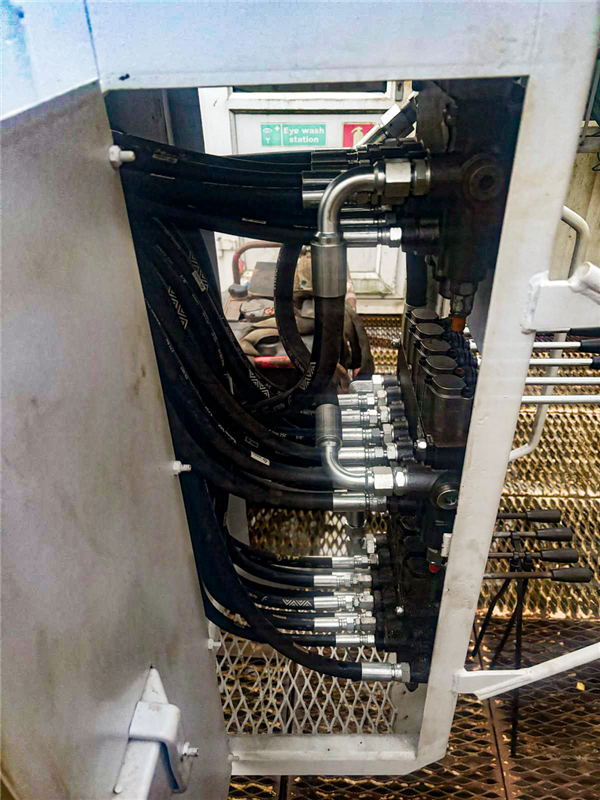

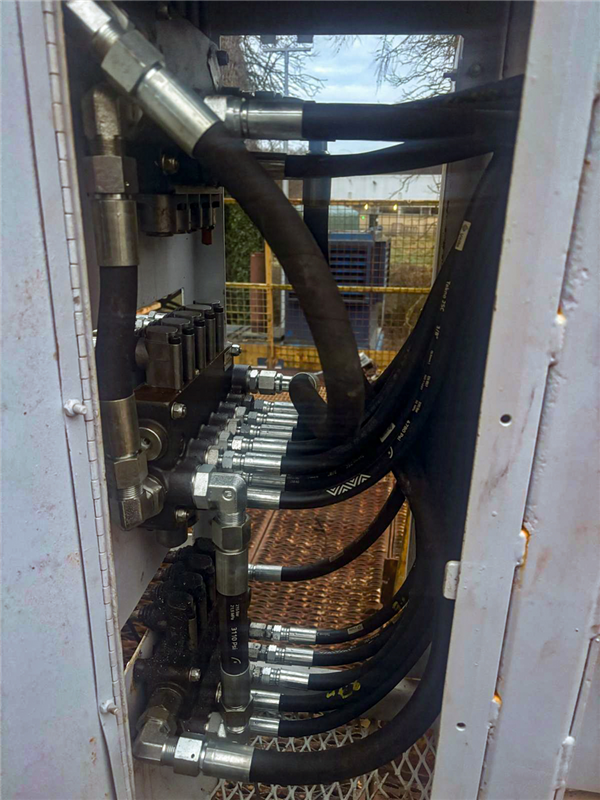

• Loadsafe Control Panel Rebuilt and Rehosed With 3 New Spool Blocks

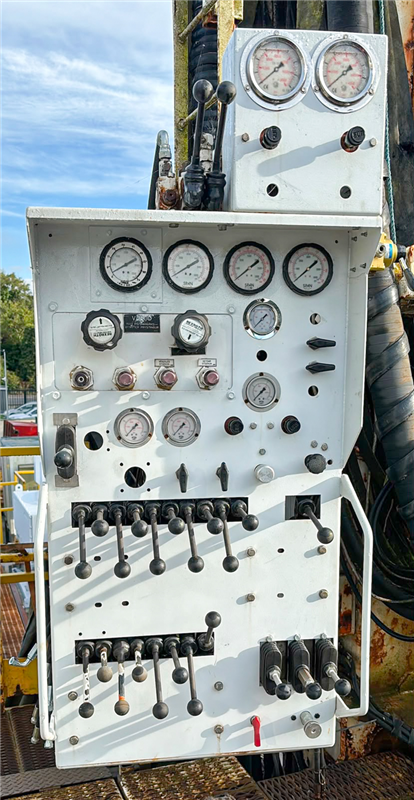

• Complete Rig Control Panel Rebuild
• New Gauges
• New Pilot Control Valves
• New Pressure Regulators
• New Flow Regulators
• New Parker Shut-Off Valves
• New Handle Kits on Spool Blocks
• New Engine Radiator
• New Engine Coolant Piping
• Complete New Exhaust System
• New Exhaust Boxes
• New Doosan Spark Arrestors
• New Slave ECU For Deck Engine
• Deck Engine Turbocharger Rebuilt
• New Genuine Schramm Steel Hydraulic Pipes to Mast

Deck Engine

• Detroit Diesel DDC/MTU 12V-2000TA DDEC Engine

• Rated - 760 BHP (567 KW) @ 1800 RPM

General Specifications:

• Schramm Patented Telemast® for Easy Portability

And Fast Set Up

• Up To 200,000 LBF (890 KN) Hoist Capacity

• Up To 32,000 LBF (142 KN) Pulldown

• Range III Tubular Capability

• Loadsafe® Automated Pipe Handling System Included

• Telescoping Mast Design Permits Long Head Travel And

Working Height, Yet Short Overall Length in Transport Position

• Free-Standing Mast Design

• Hydraulically Operated Adjustable Mast Feet and Slip Box

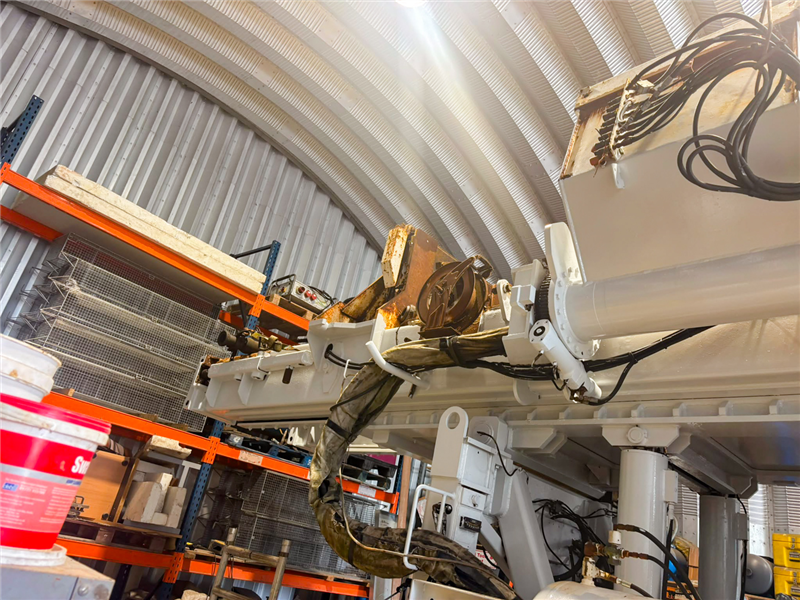

Tilting Top Head Drive

• Heavy Duty, Single Reduction Gearbox With 4 Two-Speed Disc

Valve Type Hydraulic Motors

• Infinitely Variable Rotation Speed Via HRC Control

• Torque: 0-100 Rpm @ 18,700 Ft-Lbs (24,404 N-M) & 0-160

Rpm @ 12,500 Ft-Lbs (16,269 N-M)

• Rotation Speed: 0 - 160 RPM

• Maximum Operating Pressure: 5,000 PSI (344 BAR)

Feed System

• 50 Ft (15.24 M) Head Travel

• 200,000 LBF (890 KN) Hoist Capacity

• 100 Fpm (30.5 M/Min) Hoist Speed

• 32,000 LBF (142 KN) Pulldown

• 200 Fpm (61 M/Min) Pulldown Speed

Drill Table

• Table Opening: 30 Inches (762 MM) Diameter with Table

Retracted

• Hydraulically Retractable Slip Box

Drill Pipe and Casing

• Range Iii Tubular Capability

• 30 Inch (762 MM) Maximum Diameter Through the Slip Box

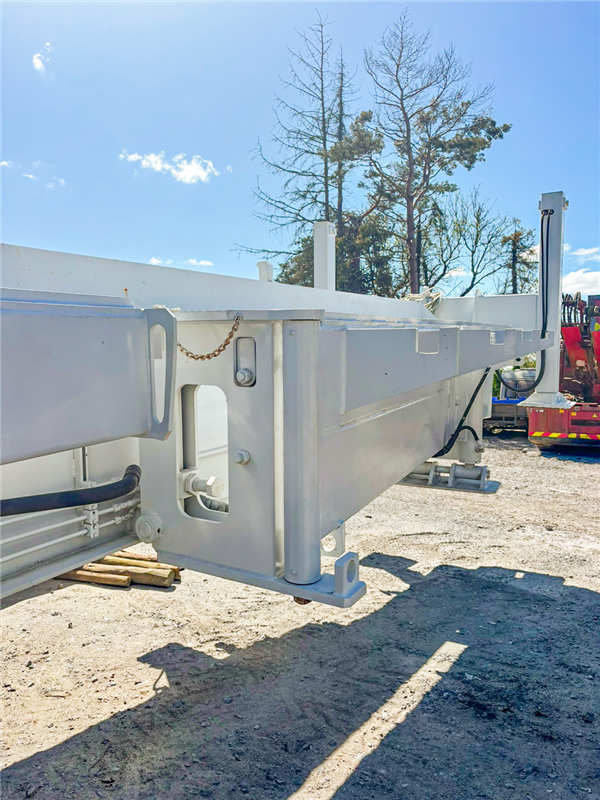

Loadsafe® Automated Pipe Handling System

• Lifts Drill Pipe and Casing from Horizontal Position Into

Alignment With Tilting Top Head

• Racks And Stores Tubulars

• Positions Blowout Preventer

• 47 Ft (14.3 M) Maximum Tubular Length, Range III

• 30 Inch (0.76 M) Maximum Diameter Casing Capability

• 5,000 Lb. (2,268 KG) Tubular Lift Capacity

Winch

• Planetary Design with Spring Applied Hydraulic Release Brake

• 9,600 LBF (42.7 KN) Bare Drum Line Pull

• 150 Fpm (46 M/Min) Bare Drum Line Speed

• Hydraulic Jib Boom Swing and Extend

• Auxiliary Winch Available

Outriggers

• Dual Front - 5 Inch (127 MM) Bore X 36 Inch (0.91 M) Stroke

• Dual Rear - 5 Inch (127 MM) Bore X 41 Inch (1.04 M) Stroke

Hydraulic System

• Open Loop Load Sensing System

• 210 Gallon (795 L) System Capacity

• 7 Micron Filtration

Electrical System

• 24 Volt DC Electrical System

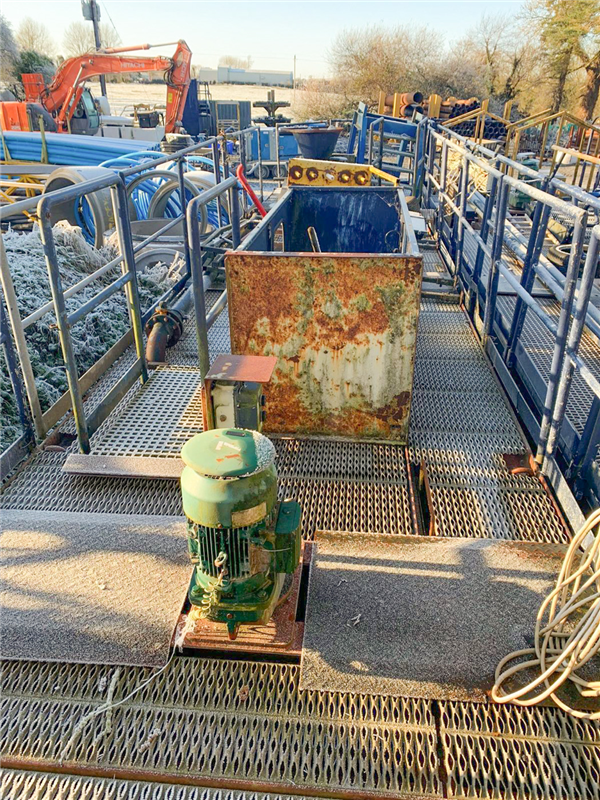

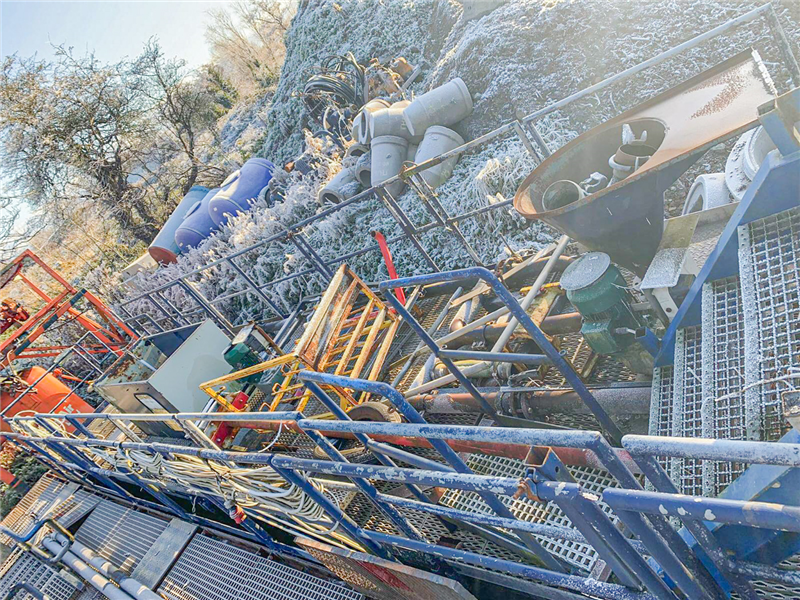

Backyard Also Available,

Machinery List as Follows:

Description                                                   Weight    Load     Dimensions

                                                                                                    W.       H.

• Mechanic Workshop/Hot Works Roof                9t        20'      8'        8'6"     Checked
• Parts Store 1/ Rig & Filter Store                      9t        20'      8'        8'6"     Checked
• Parts Store 2 / Mud Pump Spares                    9t        20'      8'        8'6"     Checked
• Toilet Block/Shower Block                               5t        32'      9'        8'6"     Checked

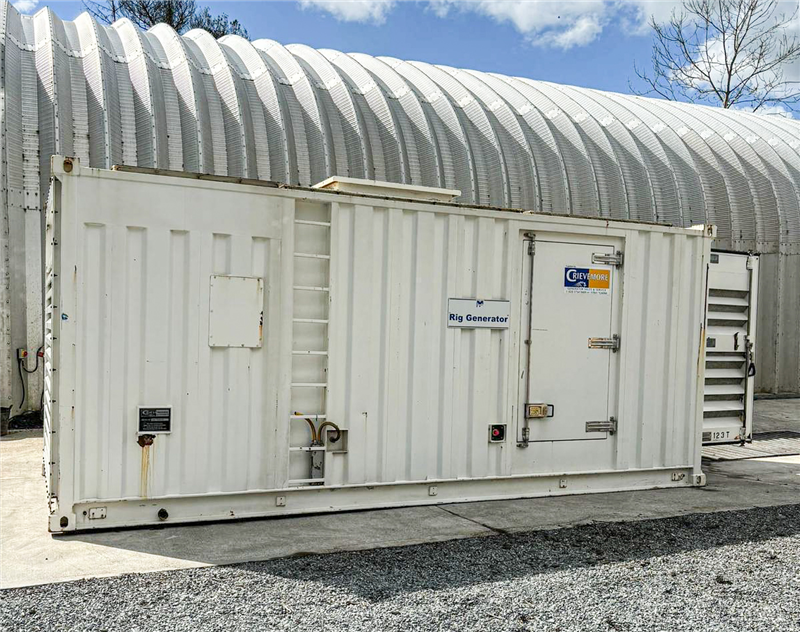

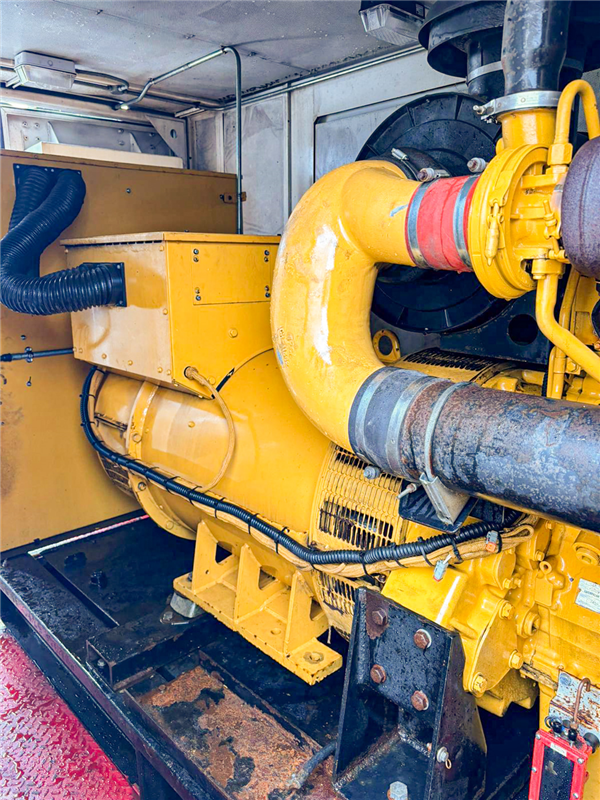

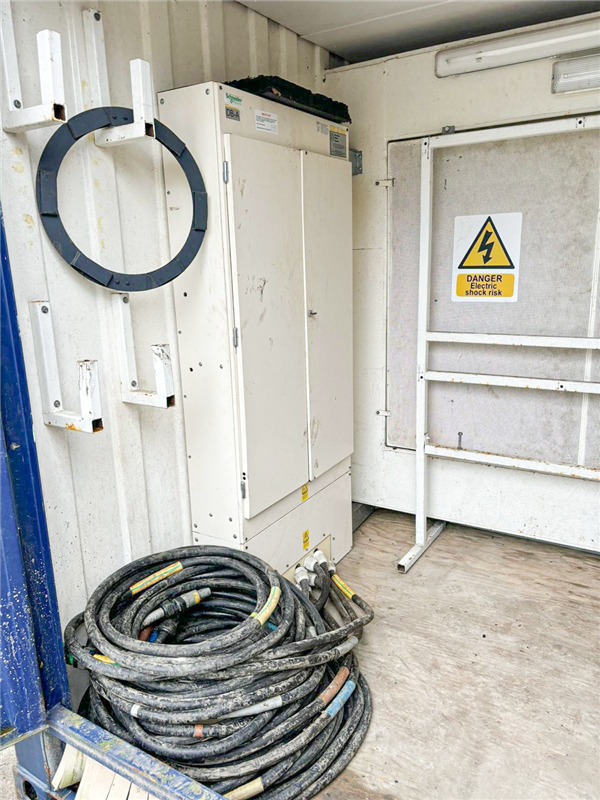

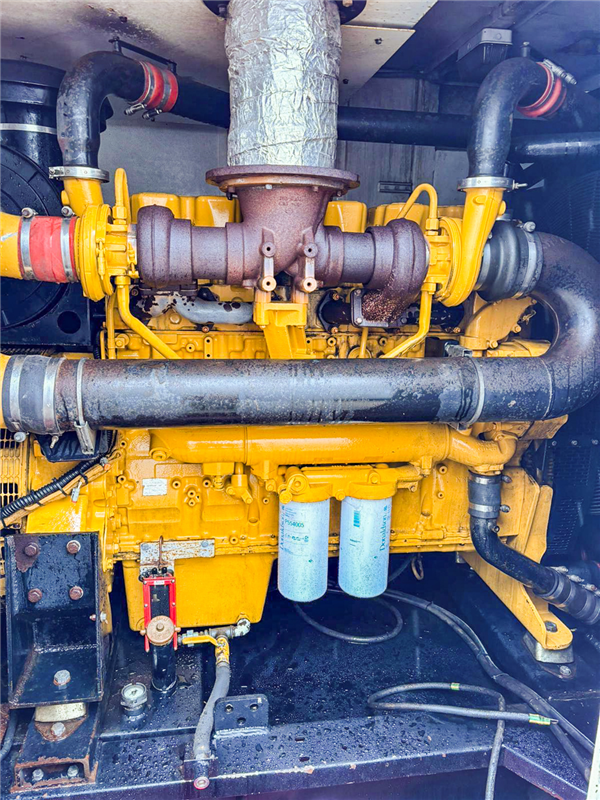

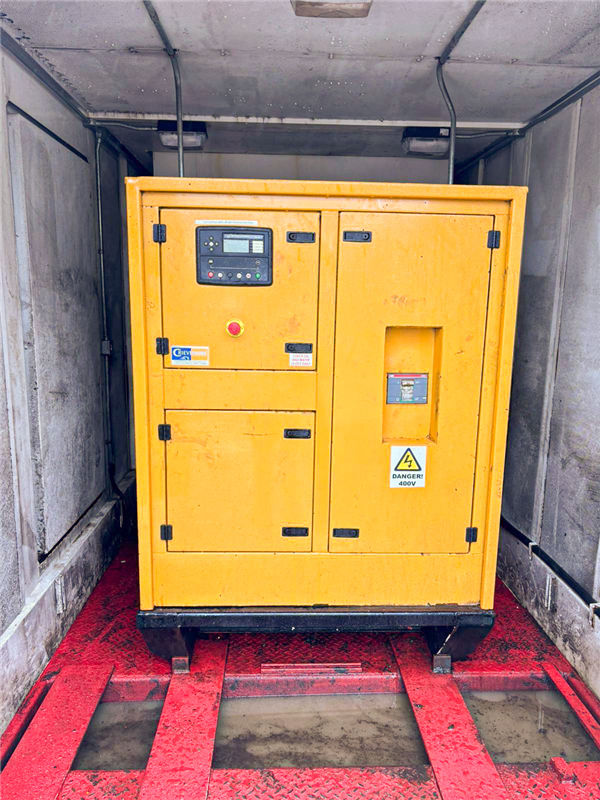

• Rig Generator 650KVA                                    10t      20'      8'        10'      Checked

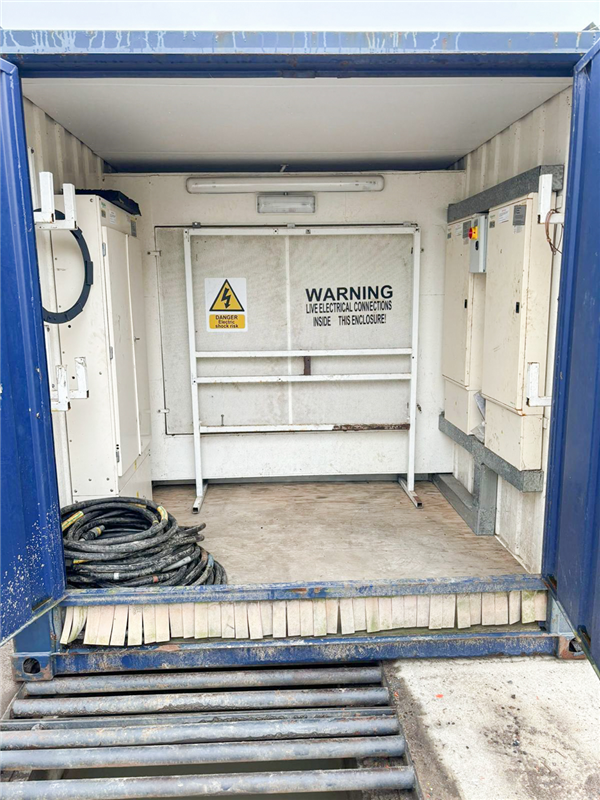

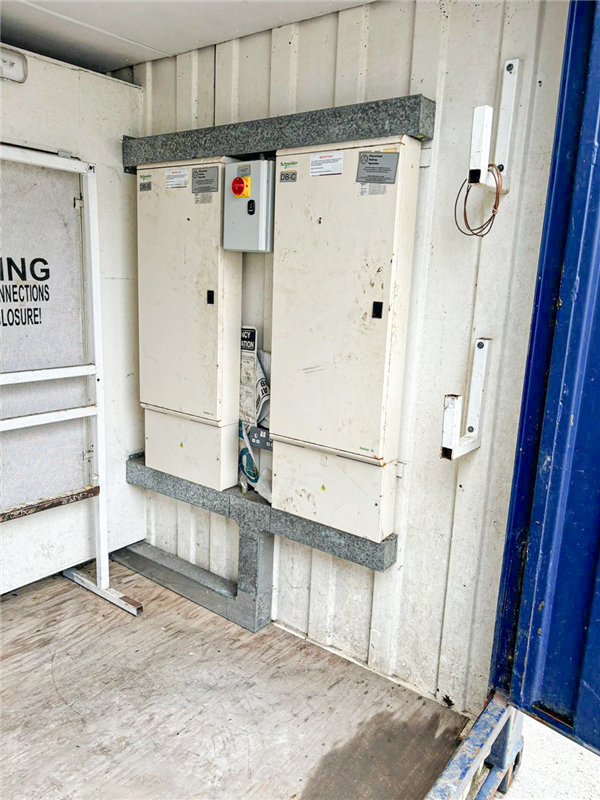

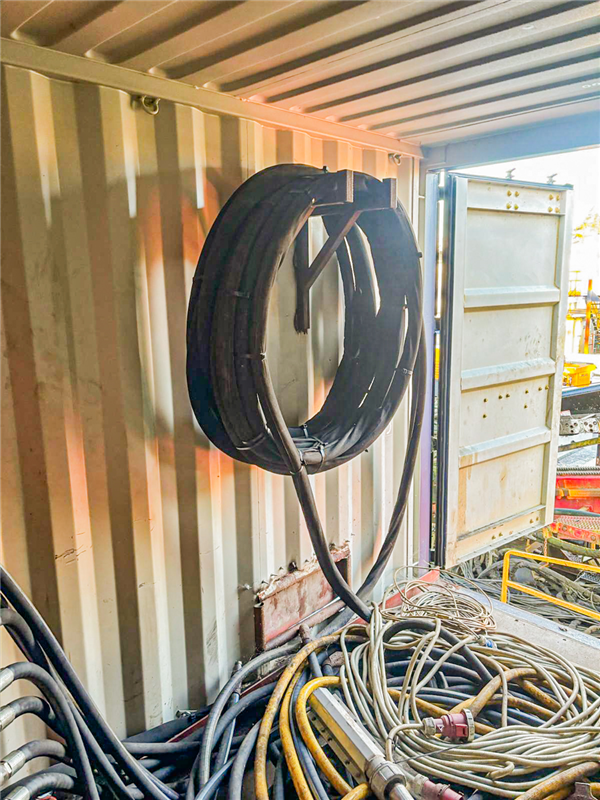

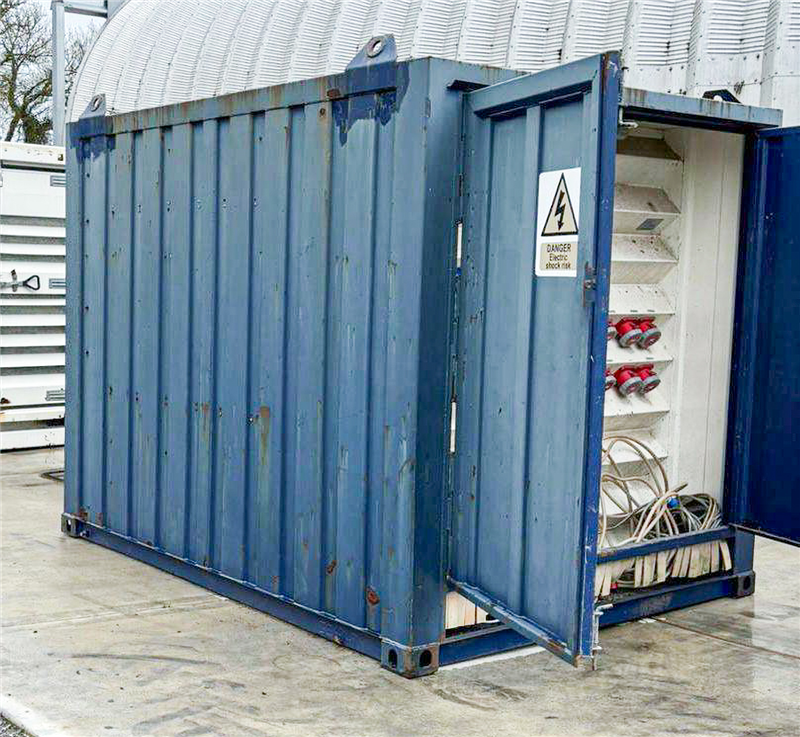

• Electrical Distribution Room & Cables               2.5t     10'      8'        8'6"     Checked

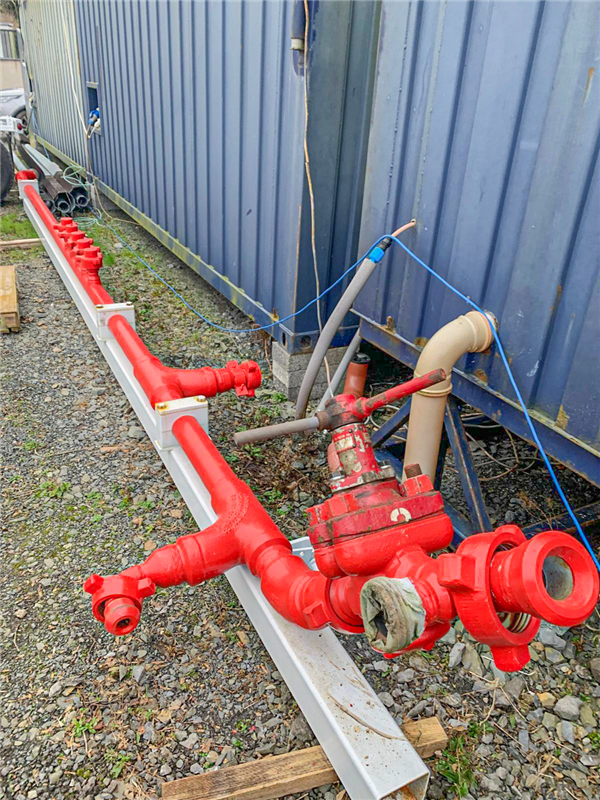

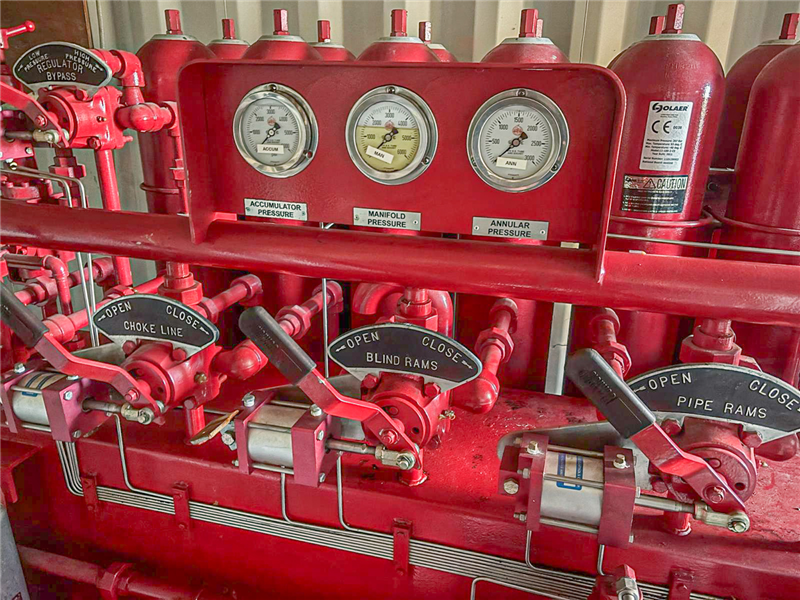

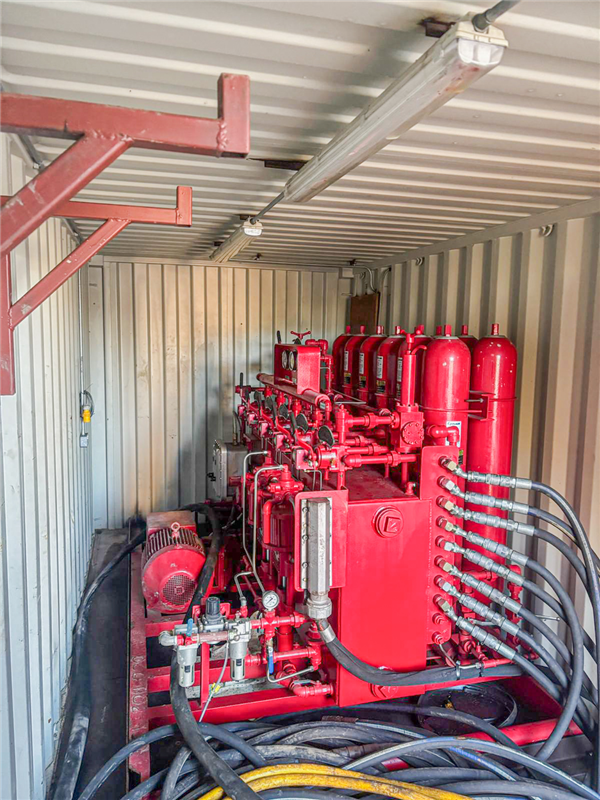

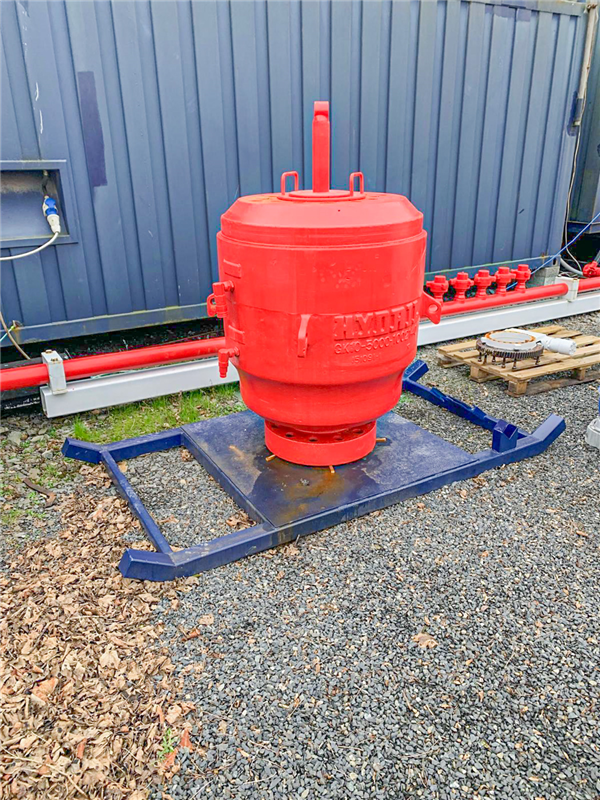

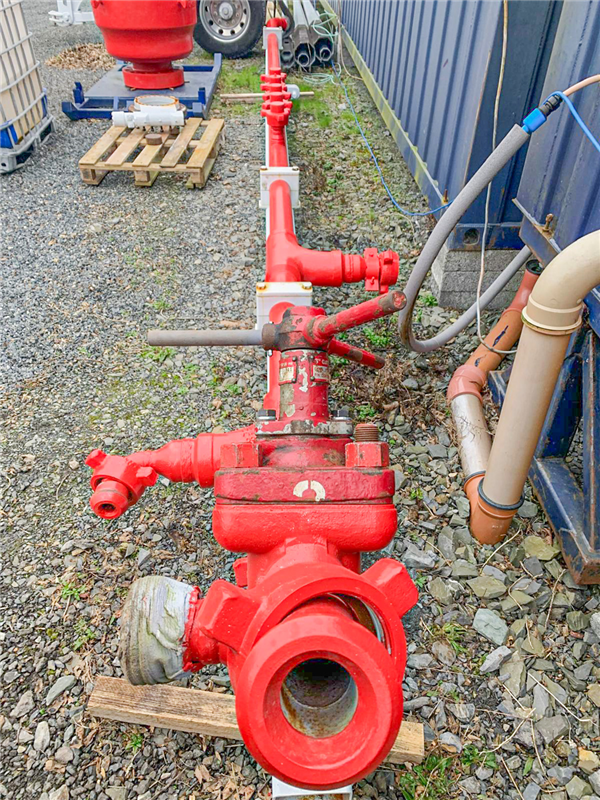

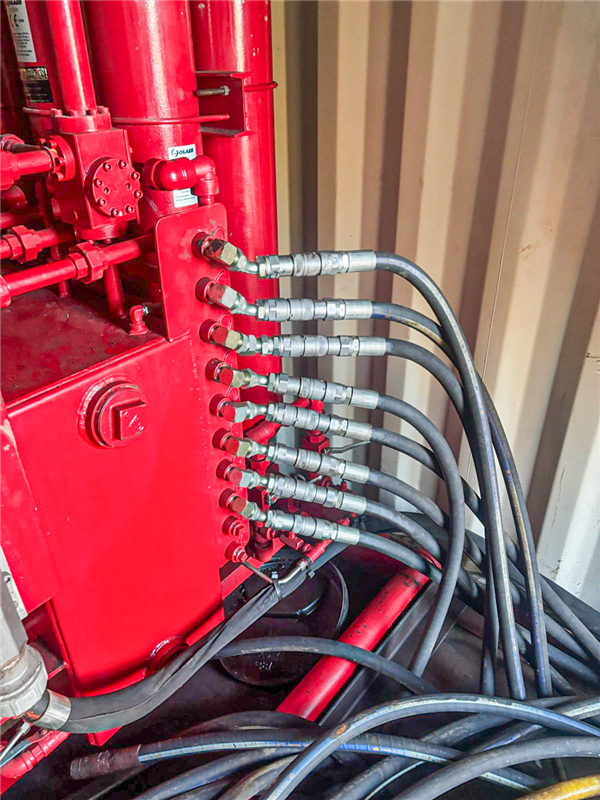

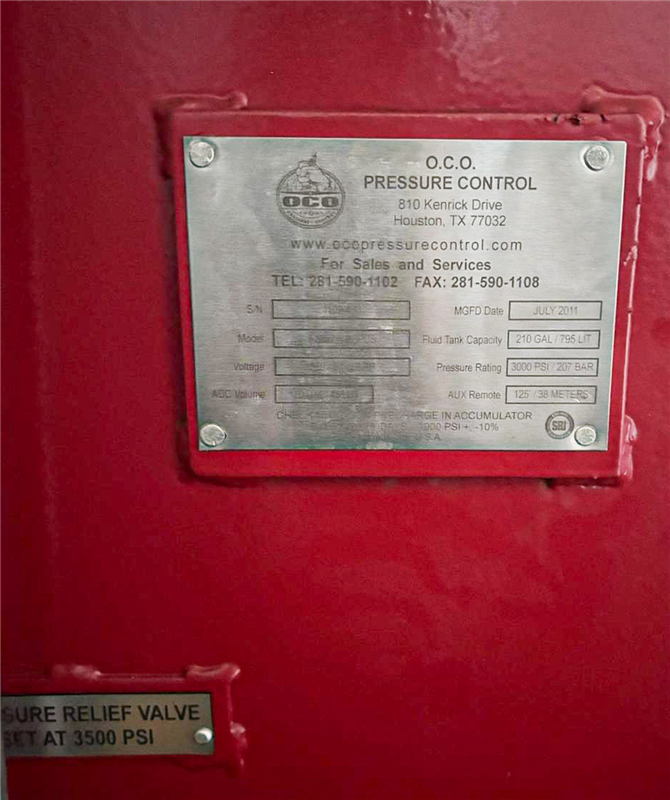

• Kommey Unit, Choke Manifold,
• Annular & Bop                                               7t        20'      8'        8'6"     Checked

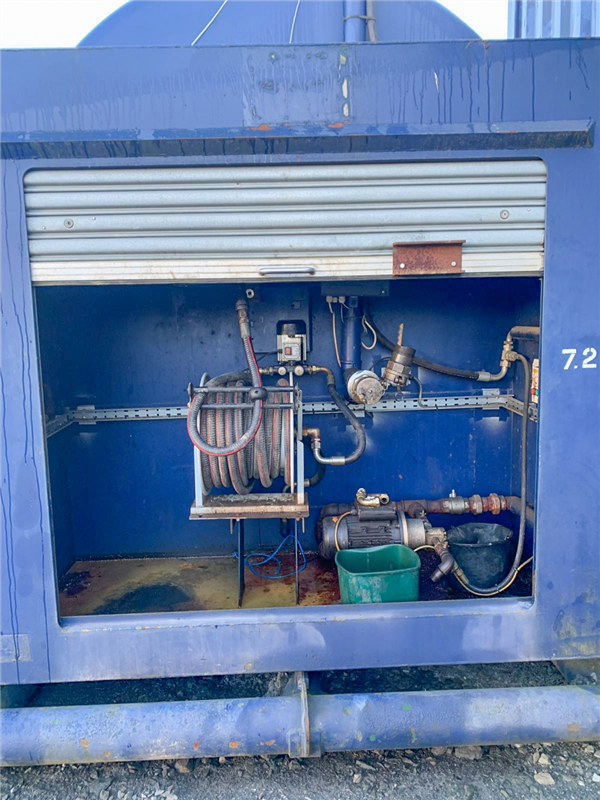

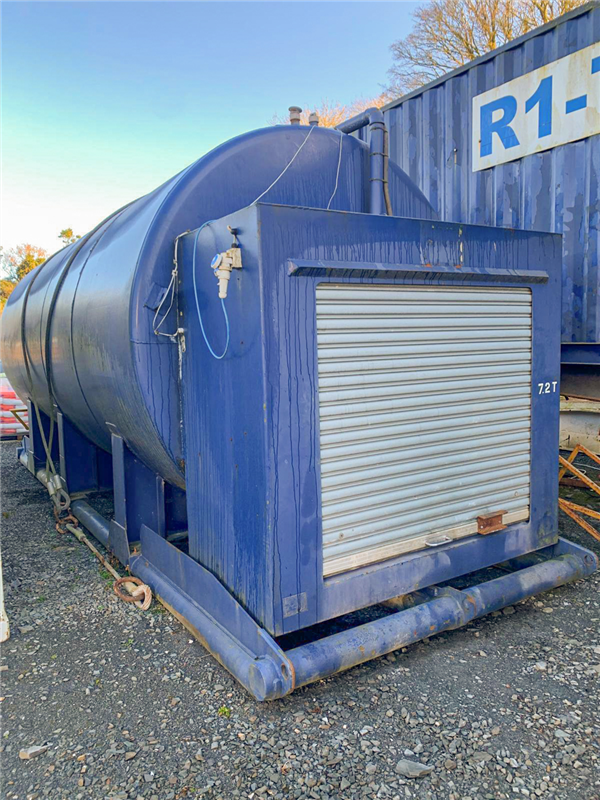

• Fuel Bowser                                                   10t      26'      9'        10'7"   Checked
• Drill Water                                                     5t        14'      9'        10'7"   Checked
• Fire Water                                                     8t        27'      9'        10'7"   Checked

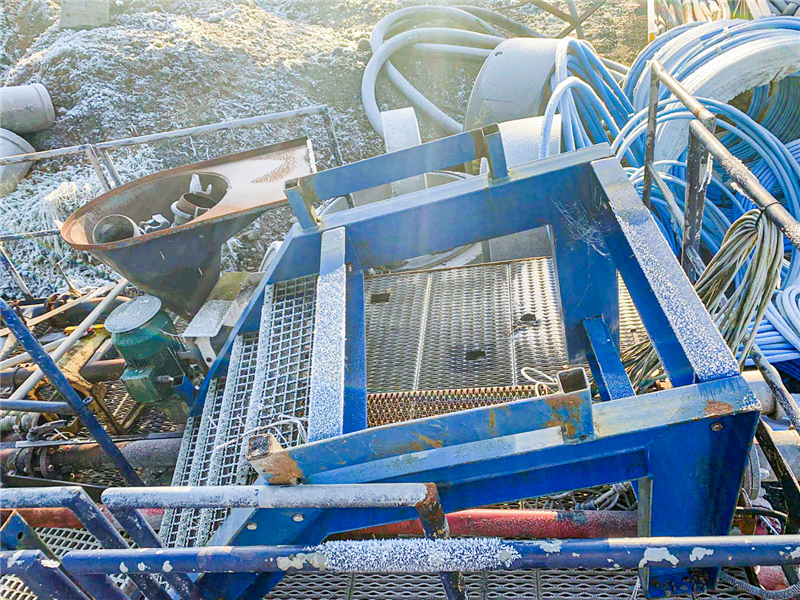

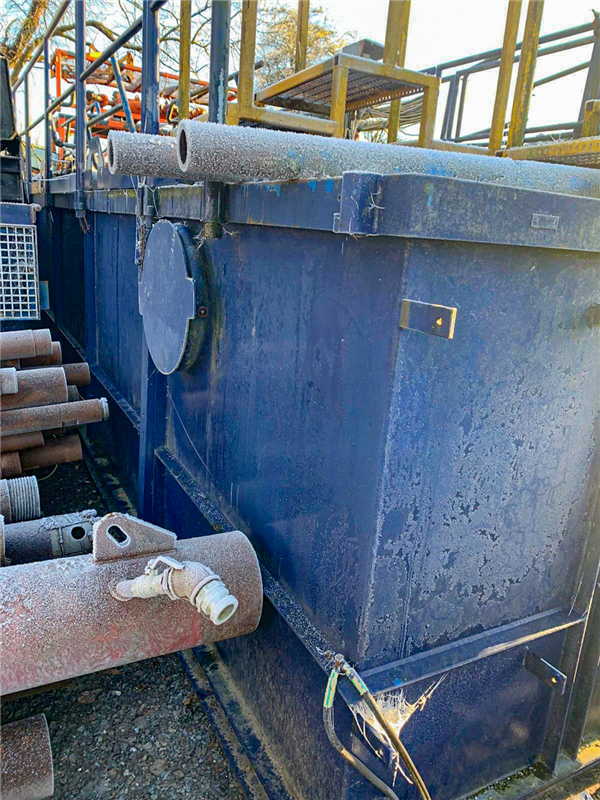

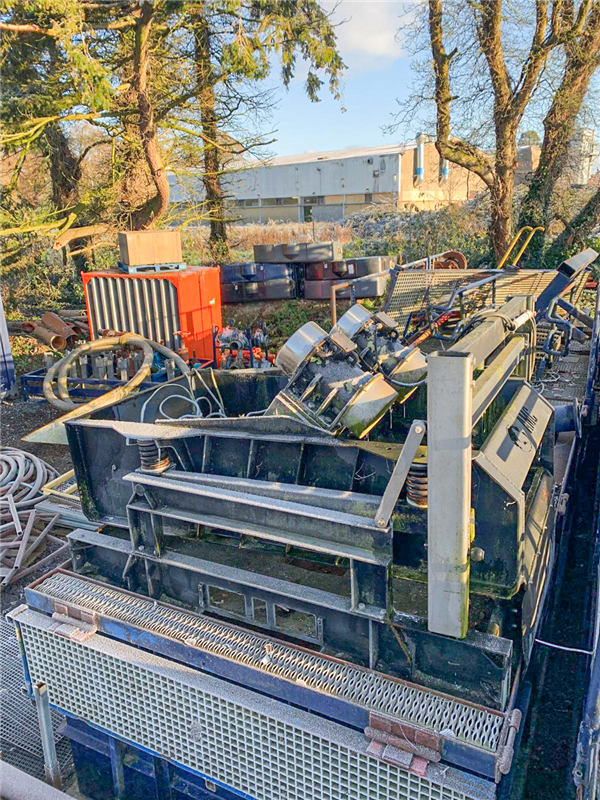

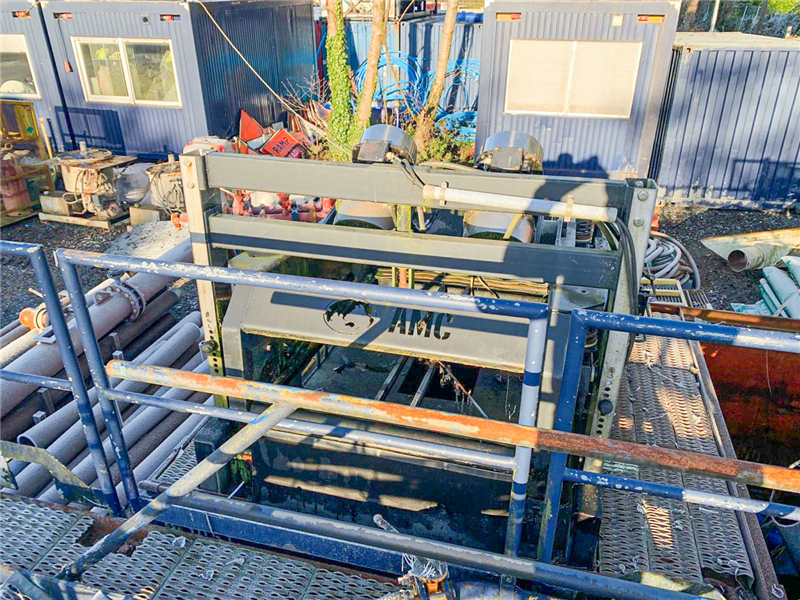

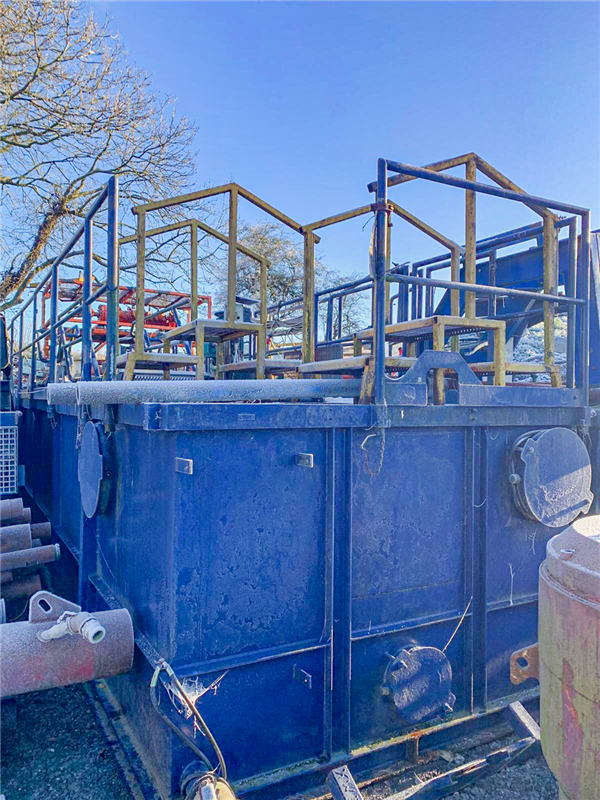

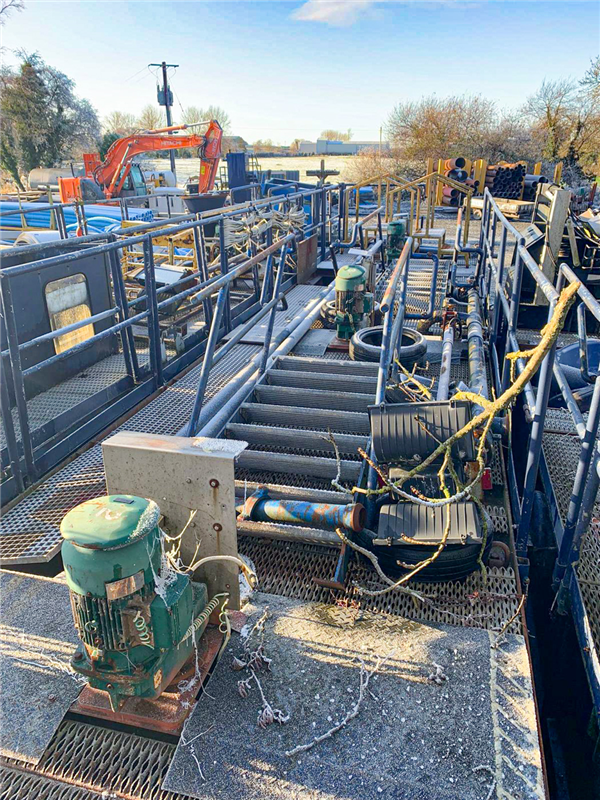

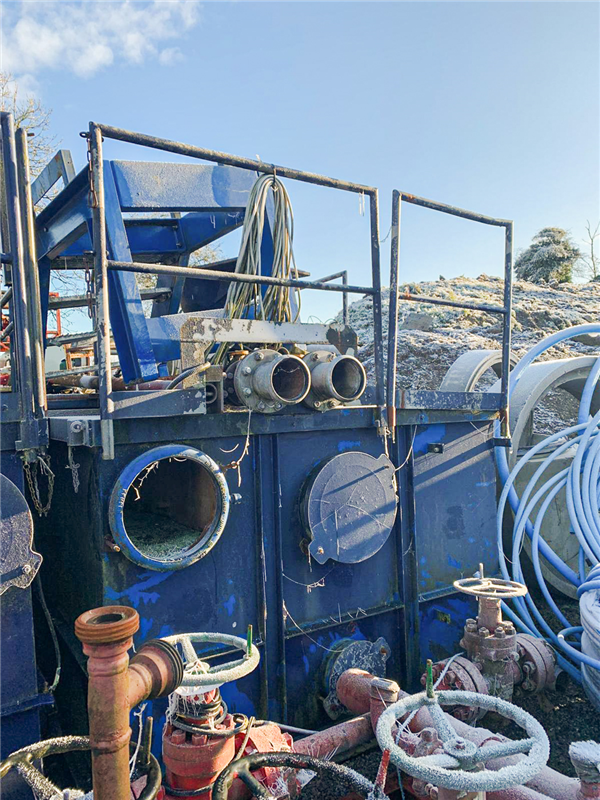

• Shaker Tank & Shakers                                   7t        30'      8'        9'        Checked

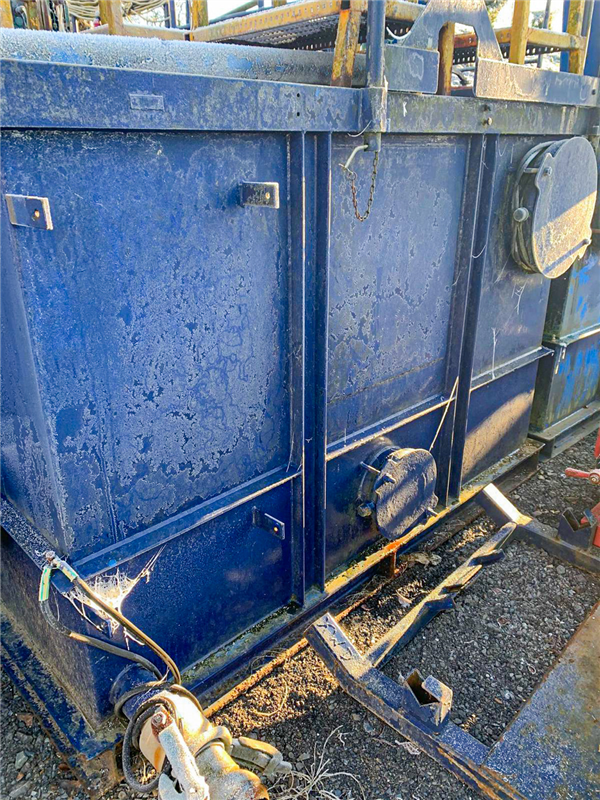

• Active Tank                                                    14t      40'      8'        9'        Checked

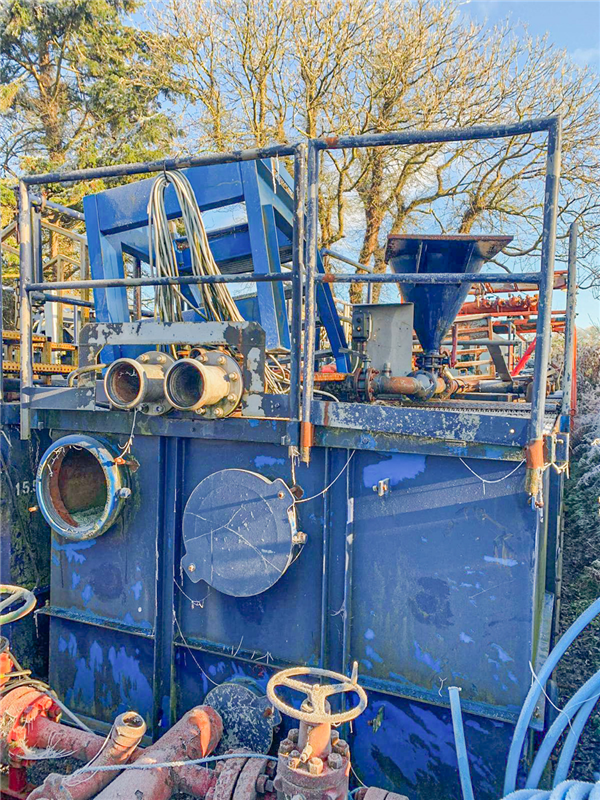

• Mix Tank                                                        14t      40'      8'        9'        Checked
• Trip Tank                                                                                                  Checked
• Charge Pumps & Transfer Pumps                                                                Checked

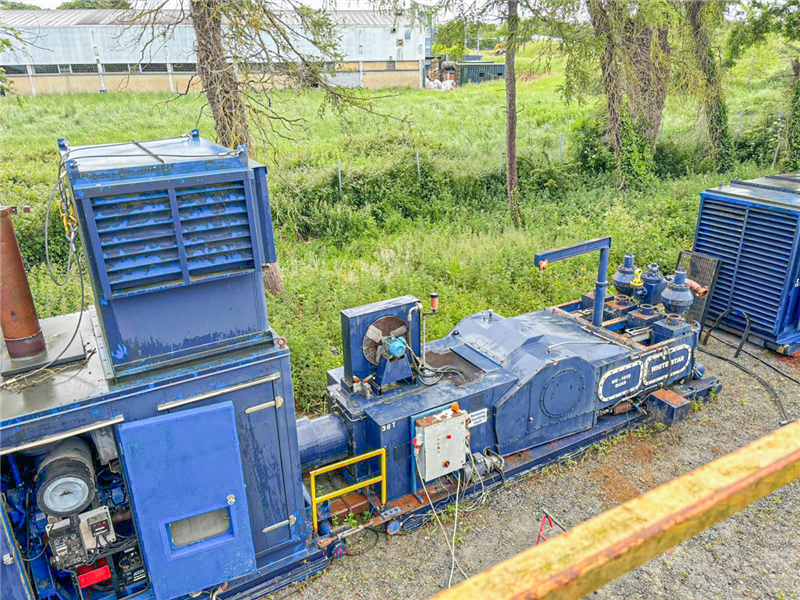

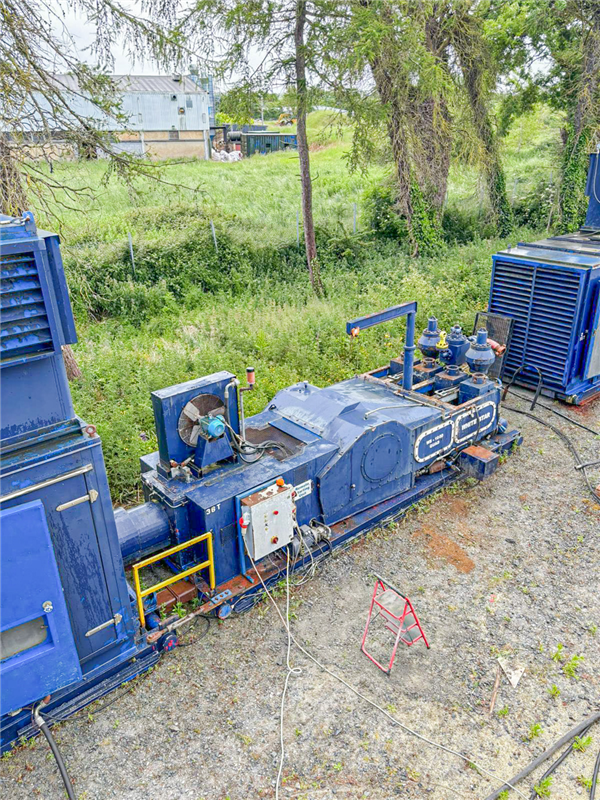

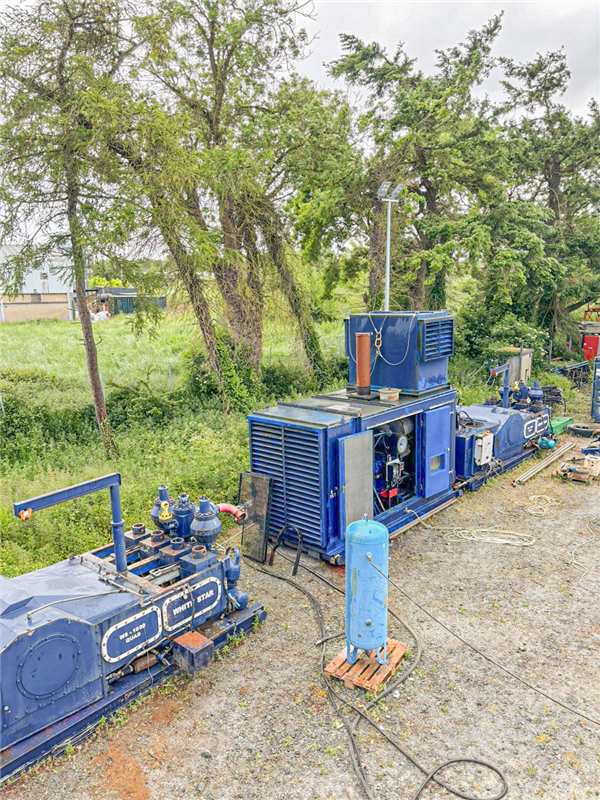

• Mud Pump 1                                                   35.5t   24'      8'        10'      Checked
• Mud Pump 2                                                   35.5t   24'      8'        10'      Checked

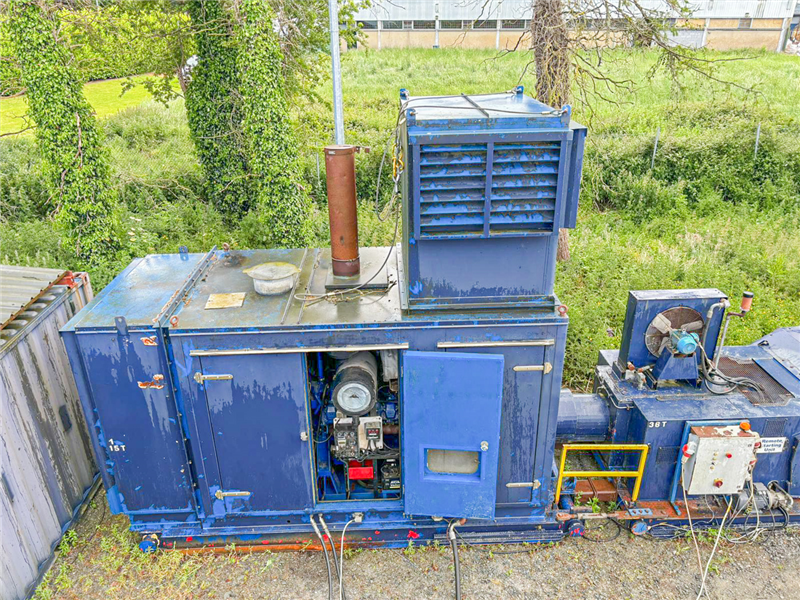

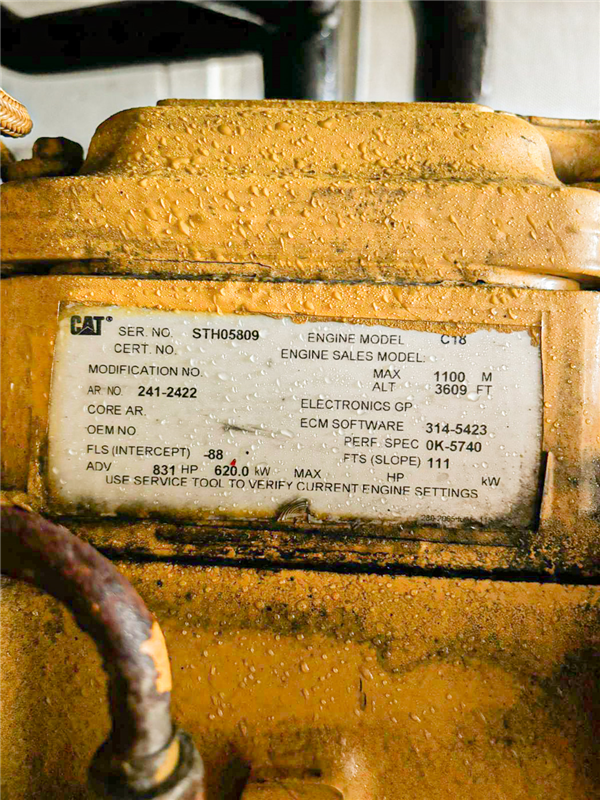

• Mud Pump Engine 1                                        16.5t   18'      8'                   Checked
• Mud Pump Engine 2                                        16.5t   18'      8'                   Checked
• LP & HP Manifolds                                                                                     Checked
• Junk Basket 1                                                12t      20'      8'        3'        Checked
• Junk Basket 2                                                10t      18'      6'6"     2'        Checked
• TXD Rig                                                         51.5t   52'11" 9'9"     13'5"   Checked
• TXD Load Safe                                               19t      61'1"   9'2"     12'5"   Checked

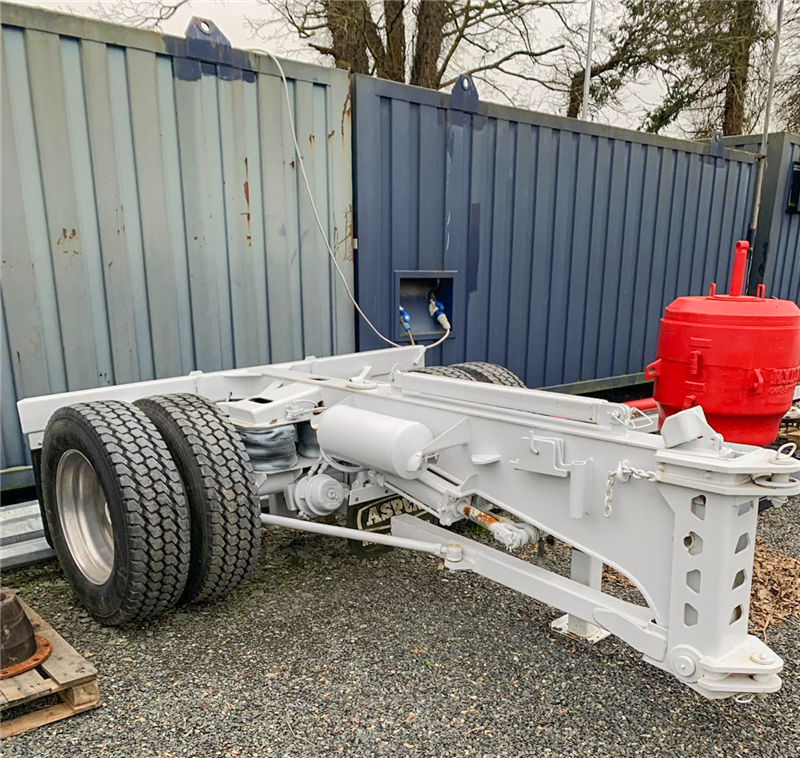

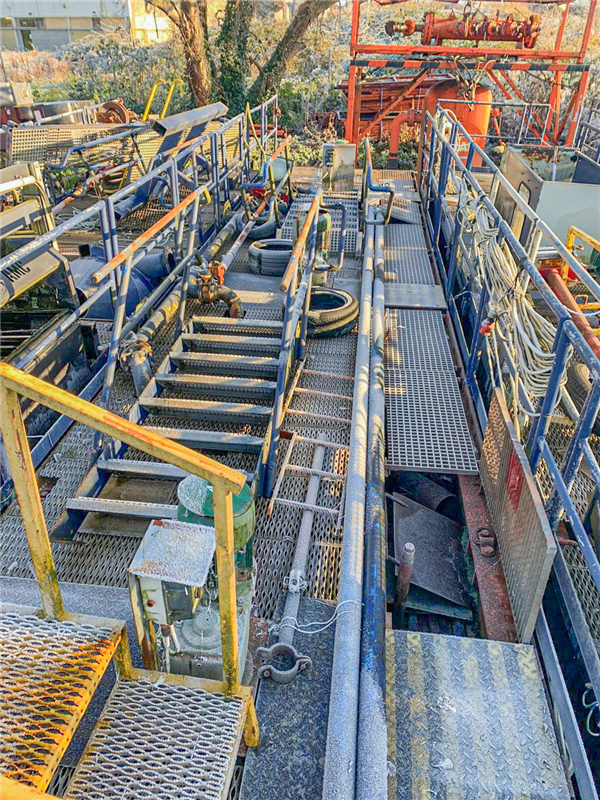

• Sub Base                                                       22t      45'      9'10"   5'        Checked
• Sub Base Ramp                                              4t       12'      9'10"   3'        Checked
• Bop Rail                                                         1t        12"      4"        2"      Checked
• Dog House Trailer Including Container                                                        Checked
•  Muster Station                                                                                        Checked

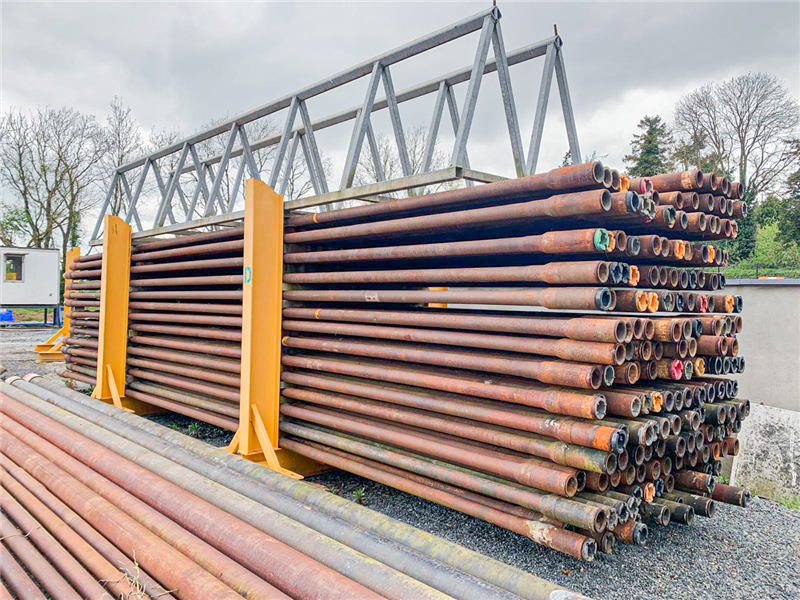

• 3 1/2" Drill Pipe (6500ft)                                                                           Checked
• 3 1/2" HW (X11)                                                                                       Checked
• 4 3/4" Spiral Collars (X13)                                                                         Checked
• 5" HW (X12)                                                                                             Checked
• 6 1/2" Drill Collars (X4)                                                                             Checked
• 8" Drill Collars (X4)                                                                                   Checked
• Small Parts Basket with Sub Savers                                                            Checked

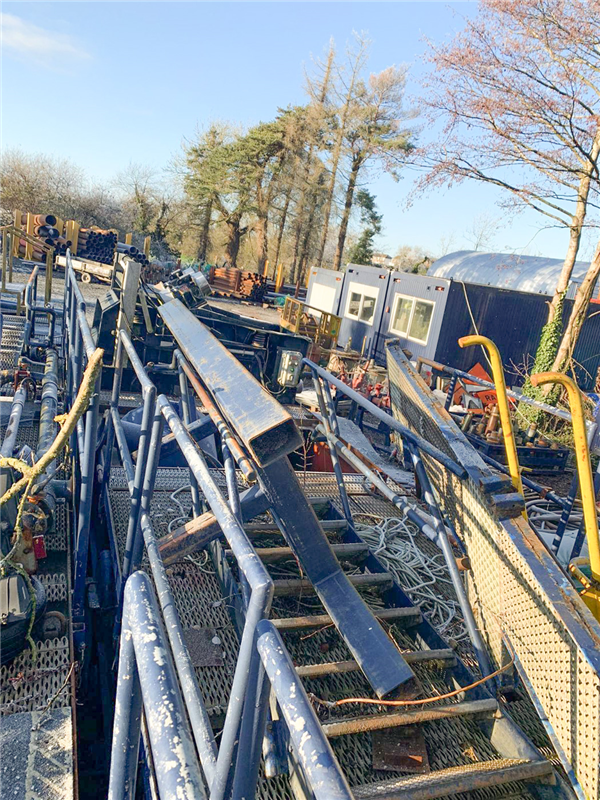

• Handrails & Misc Stepovers                                                                        Checked
• 2 X Septic Tanks                                                                                       Checked

• Drill Spools, Bell Nipples & 2 X Strainer Boxes                                             Checked

Located in Northern Europe
