1988 Simco 5000 Drill Rig

Item No
17379
Condition
Used
Manufacturer
Simco
Status
Available
Model Year
1988
Model No
5000 Drill Rig
Quantity
1
Price
Description

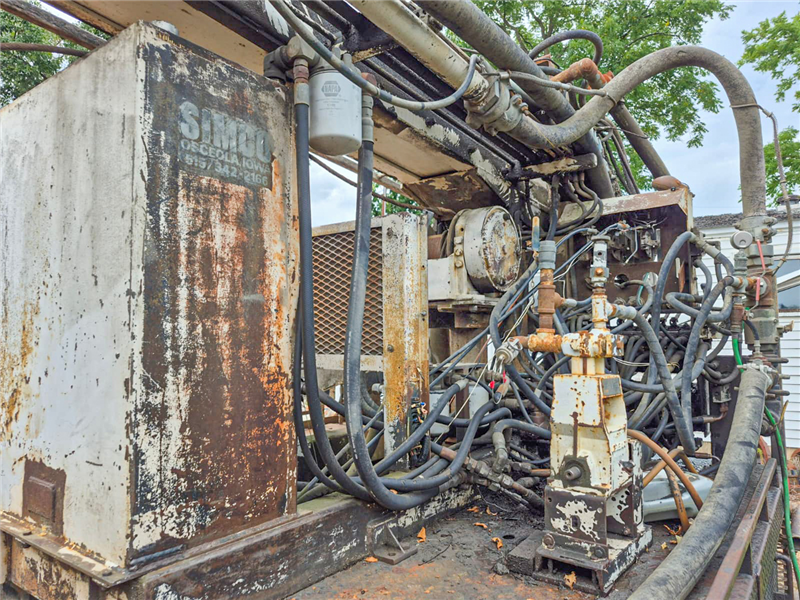

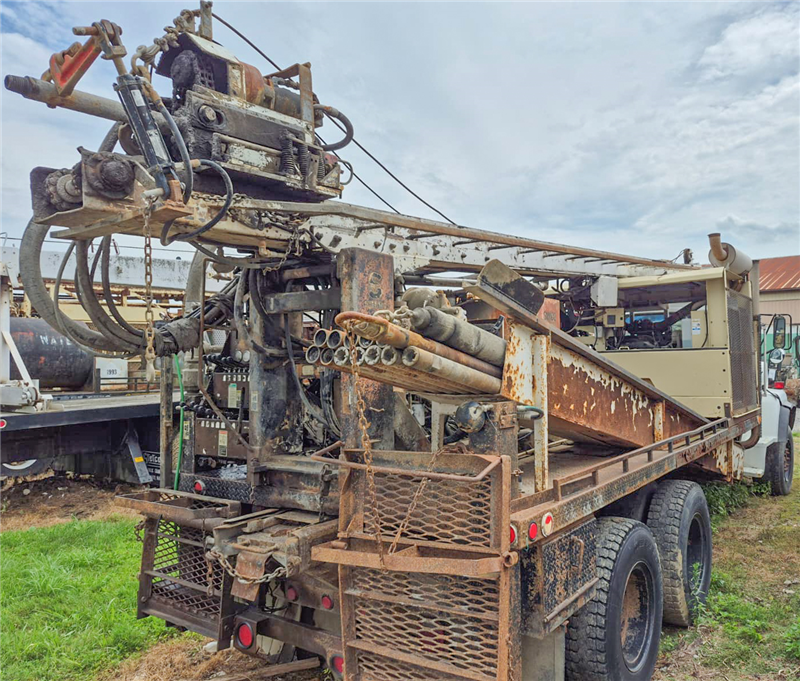

1988 Simco 5000 Drill Rig

Designed primarily for water well drilling, the SIMCO 5000 WS is sized right for many domestic well requirements. The 5000 WS is also suitable for monitoring wells, mineral exploration, and soil sampling work. This all-hydraulic rig combines convenient tool handling with easy operation and low maintenance. Ideal for single rig operations, first time rotary rig users and fleet operators who need to match the right rig to the job.

  • PTO Powered

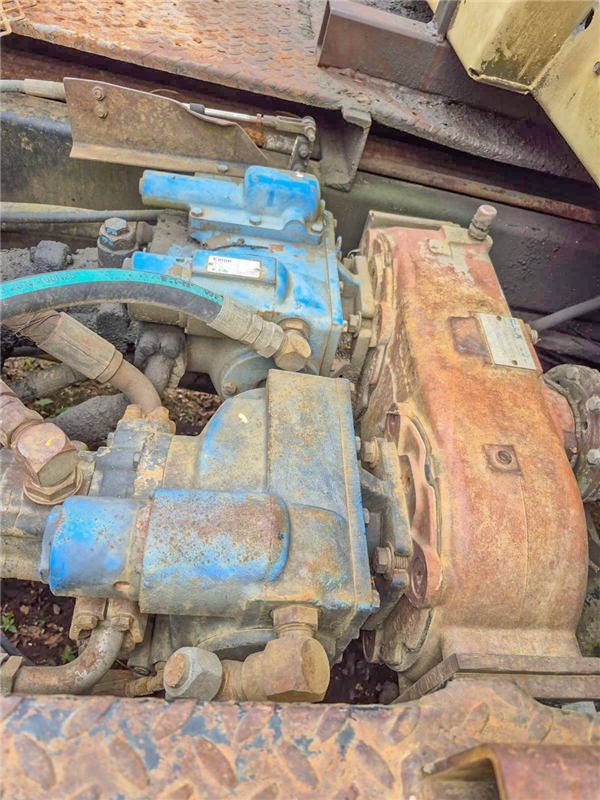

  • Eaton Hydraulic Pump
  • 2-Piston Bean Water Injection Pump
  • Ingersoll-Rand VHP 400 cfm / 200 psi Air Compressor

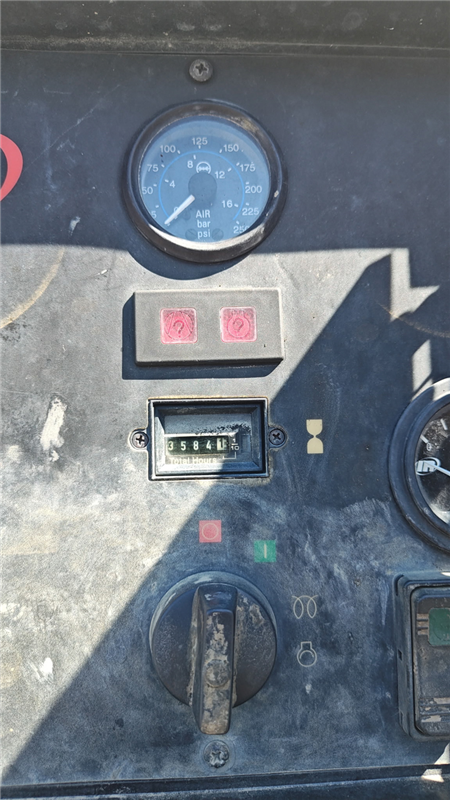

  • 3,584 Hours on Compressor Gauge
  • John Deere Diesel Deck Engine — Powers Compressor Only
  • (12) of 20' x 3" OD x 2-3/8” ID Mayhew Thread Drill Rods included
  • 6" DTH Hammer - Used
  • 6" Stabilizer

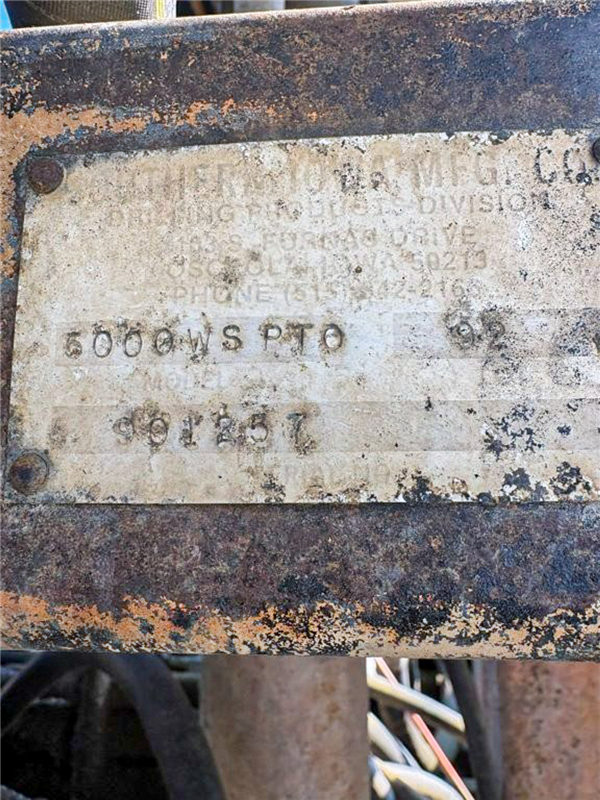

  • Serial Number: 901257.

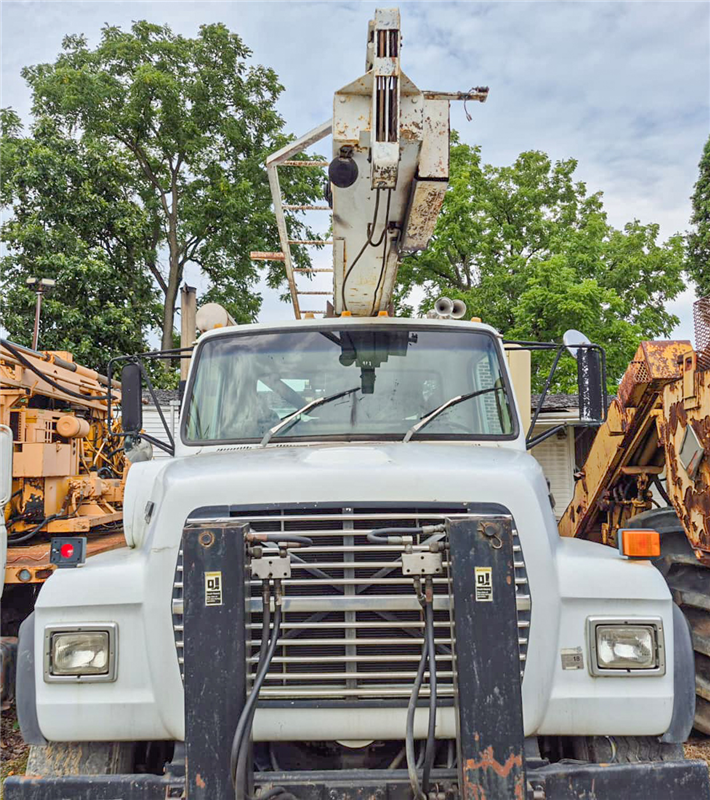

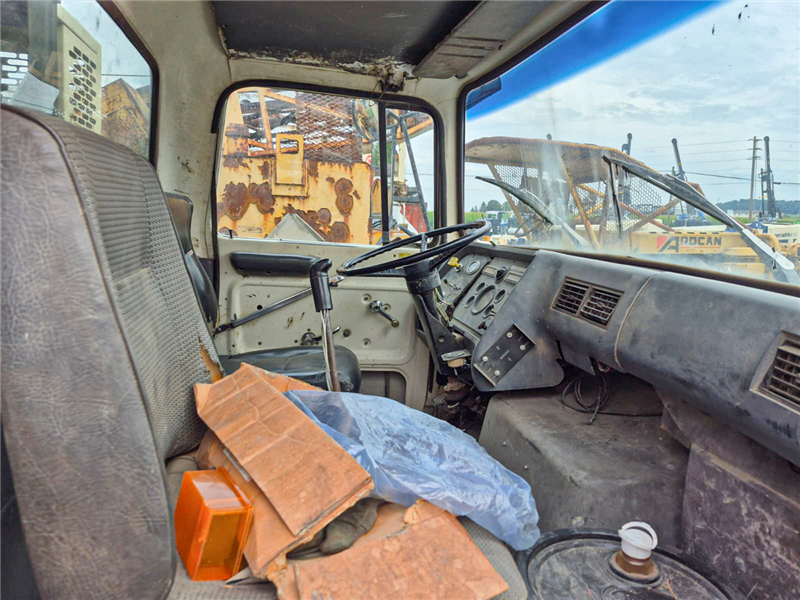

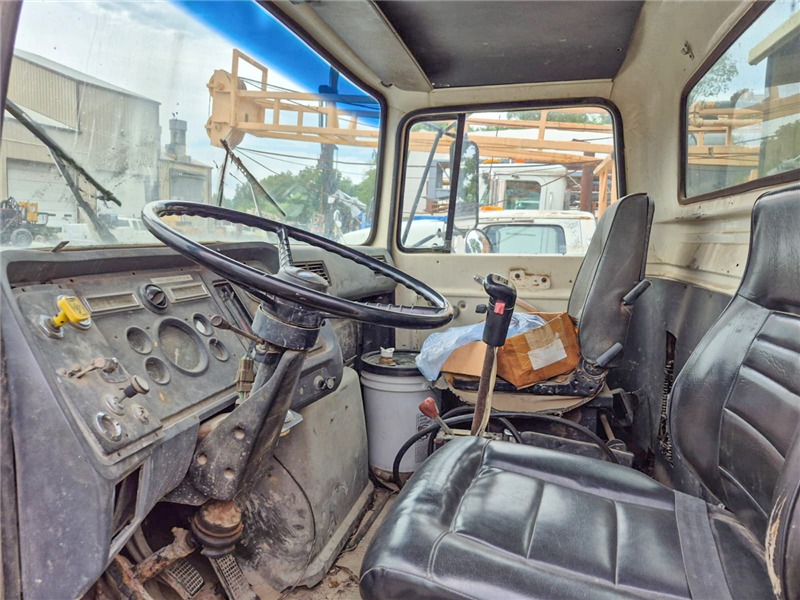

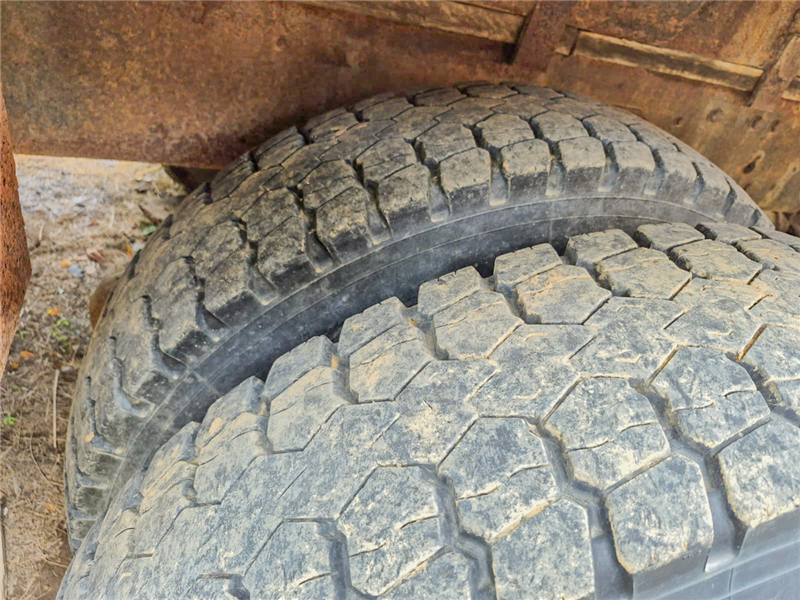

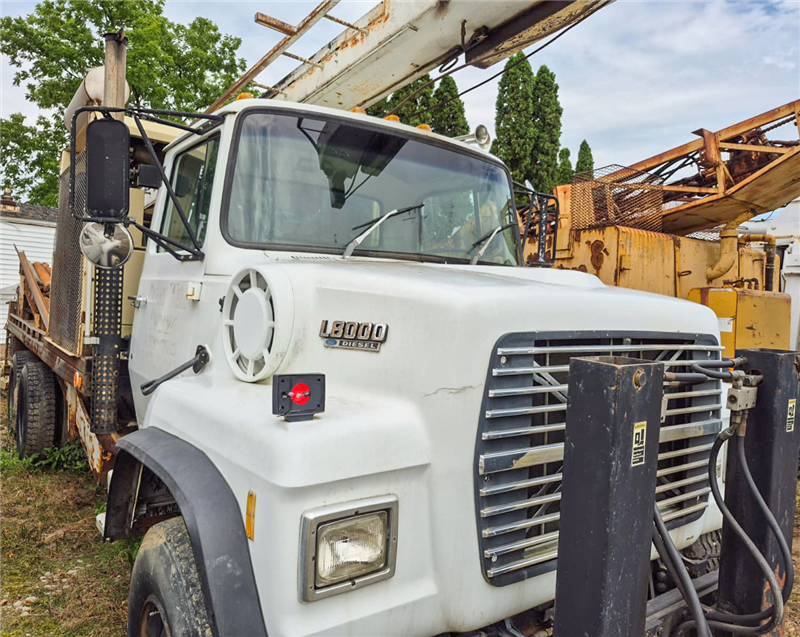

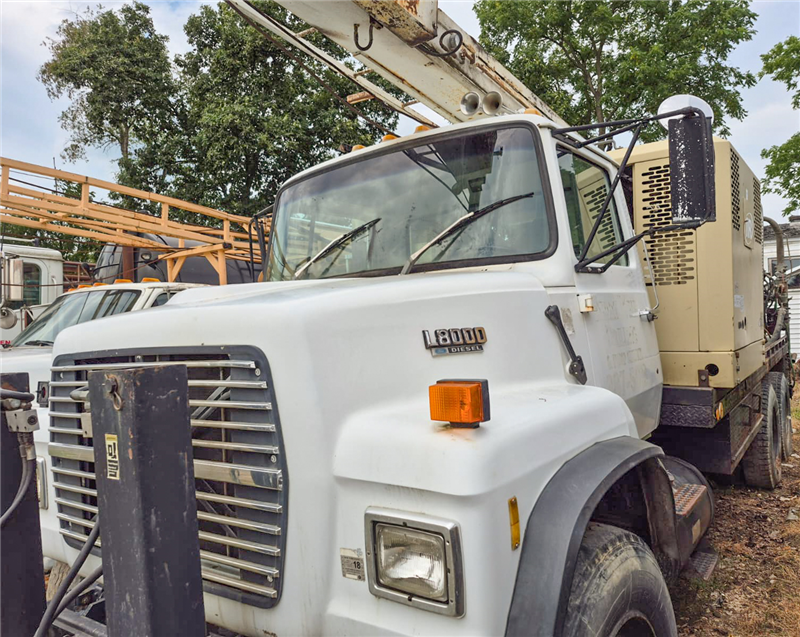

Mounted On a 1989 Ford LNT8000F Tandem-Axle L8000 Truck:

  • Ford 7.8L / 473 CID L6 Turbocharged Diesel Engine
  • 6x4 Drive

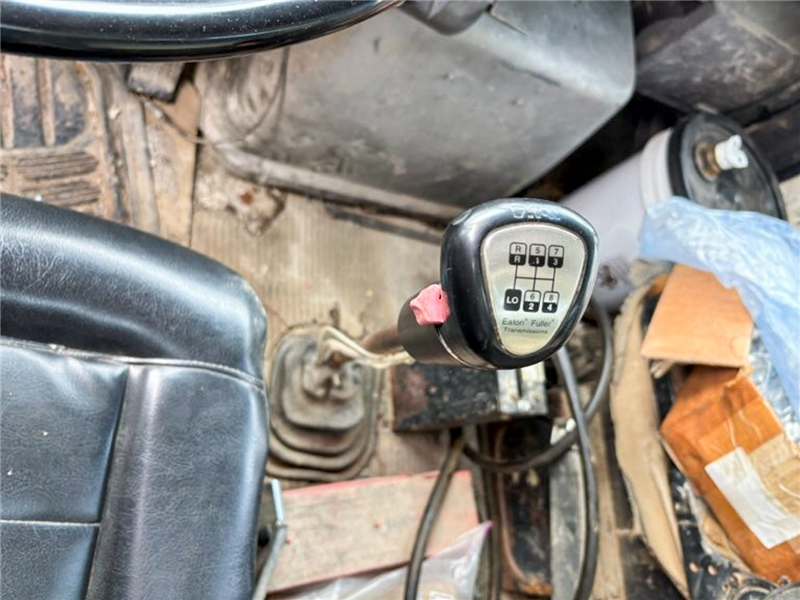

  • Manual Transmission
  • Air Brakes
  • 35,066 Miles
  • VIN: 1FDYW82A3KVA17494
  • No Title — Copy Of Previous New York Registration And Bill Of Sale Only



ROTARY CAPACITY:

  • Up To 400' With 6"-12" Diameter Holes Using A Centrifugal Mud Pump
  • Up To 900' With 3-7/8"-6" Diameter Holes Using A Duplex Mud Pump

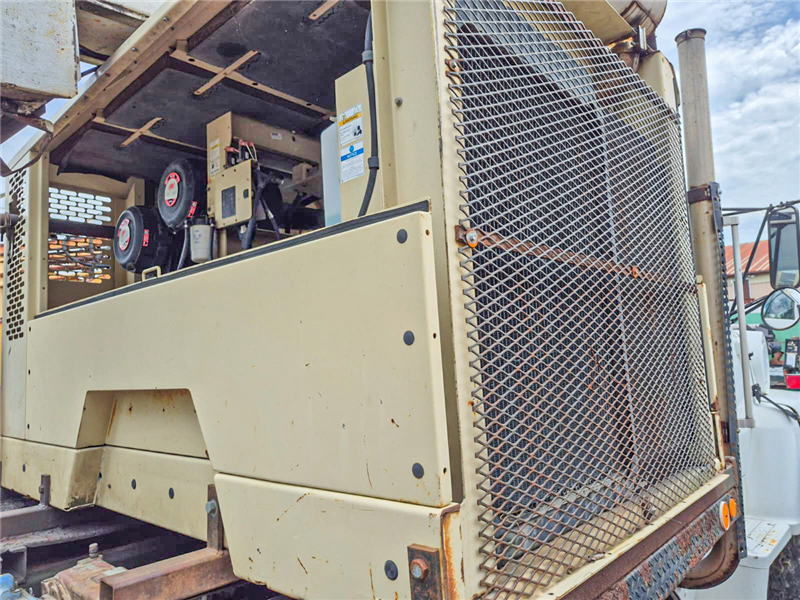

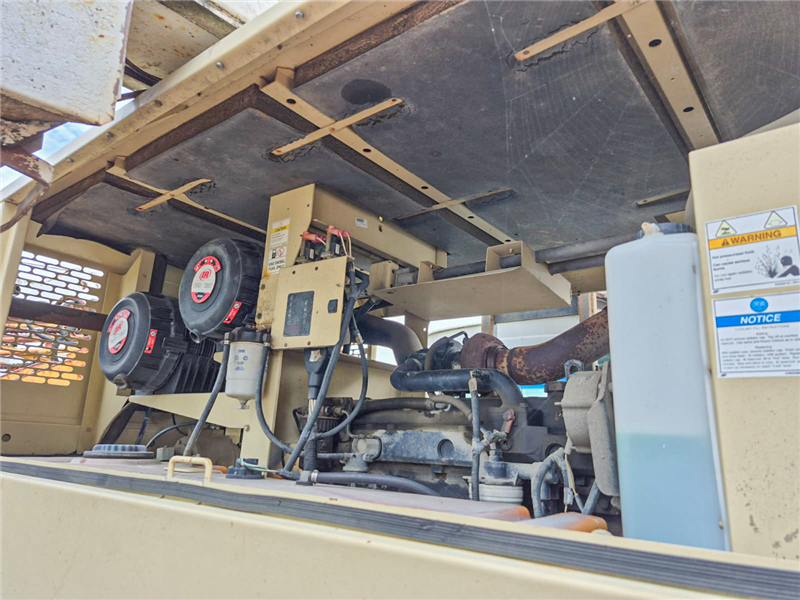

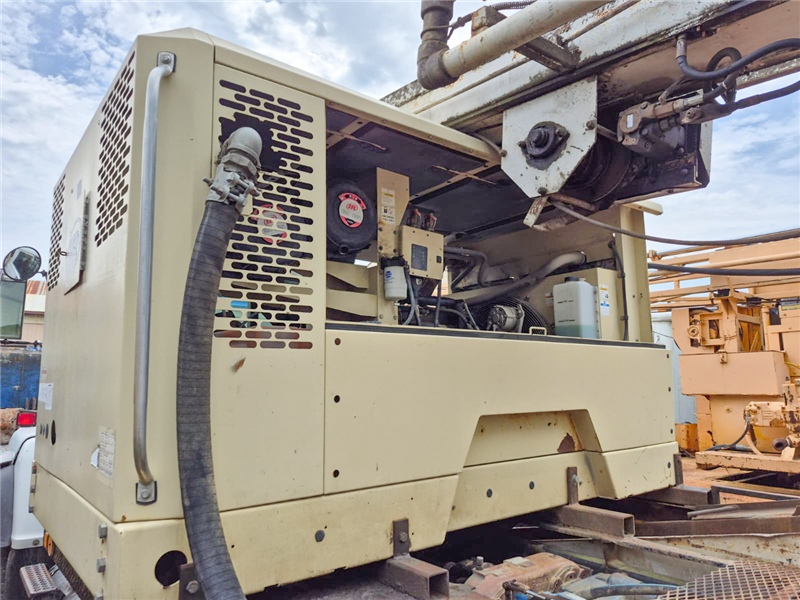

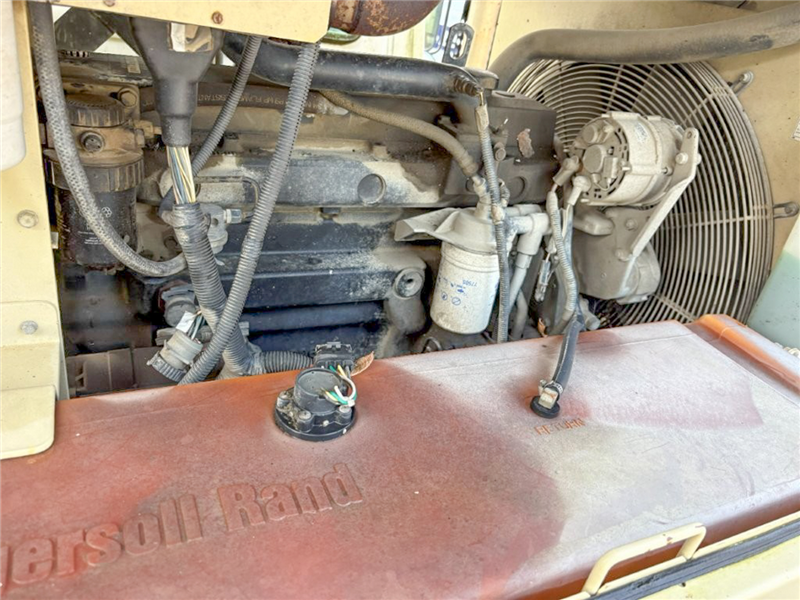

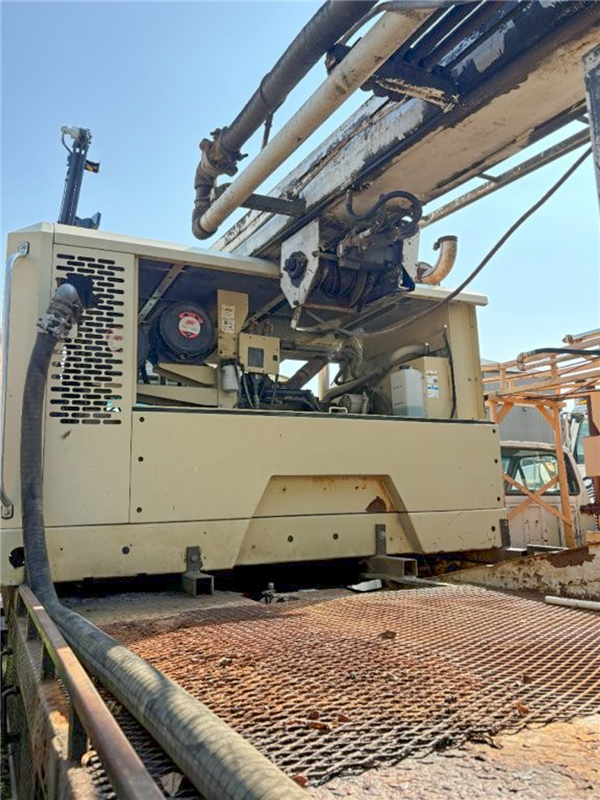

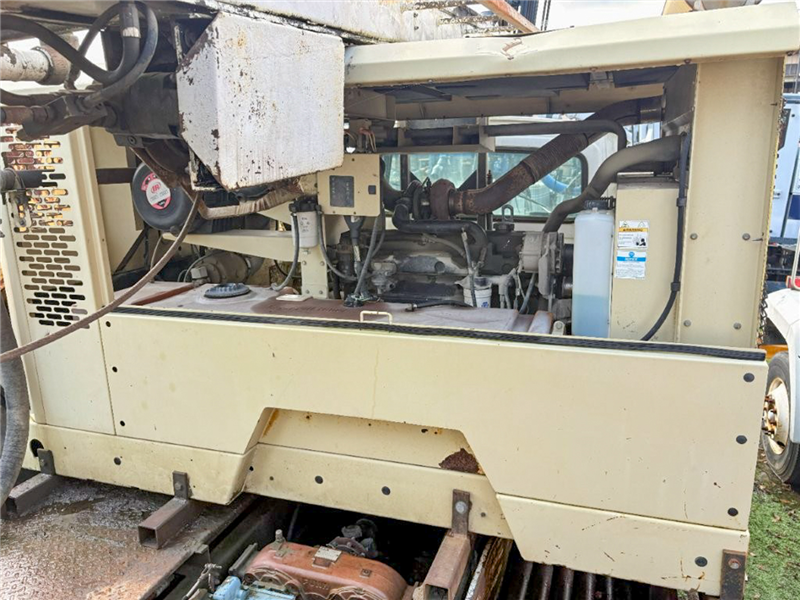

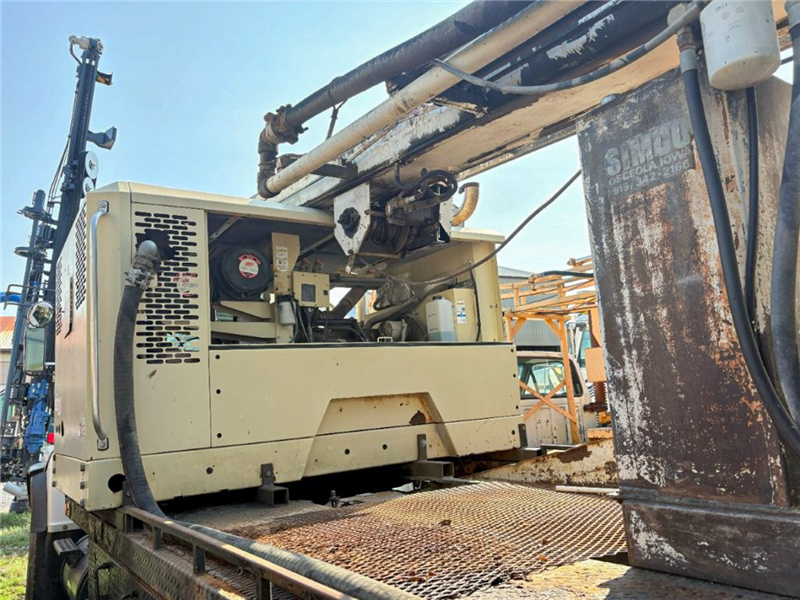

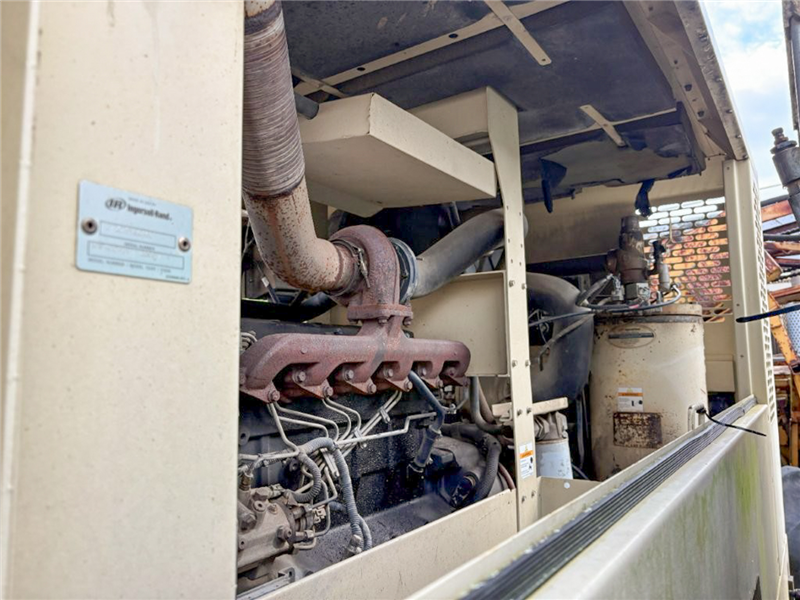

Air Compressor:

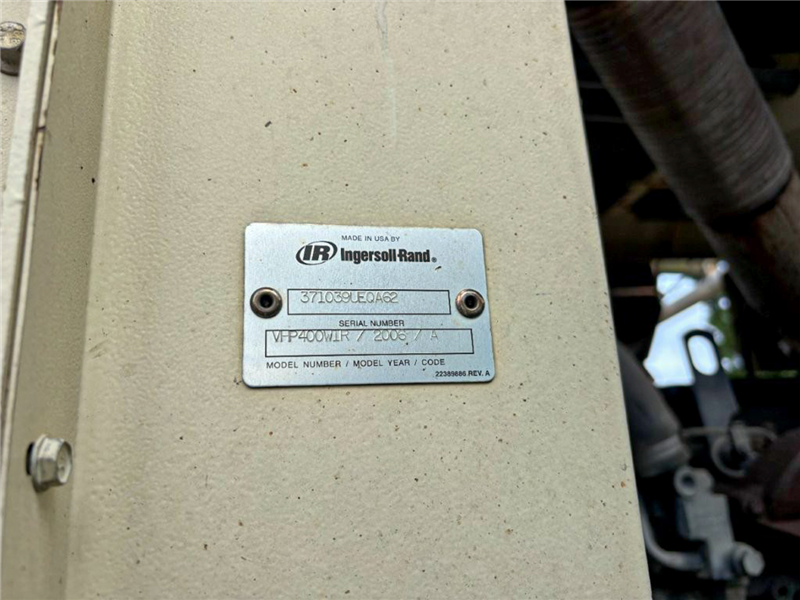

  • 2006 Ingersoll-Rand VHP400WIR
  • 400 CFM

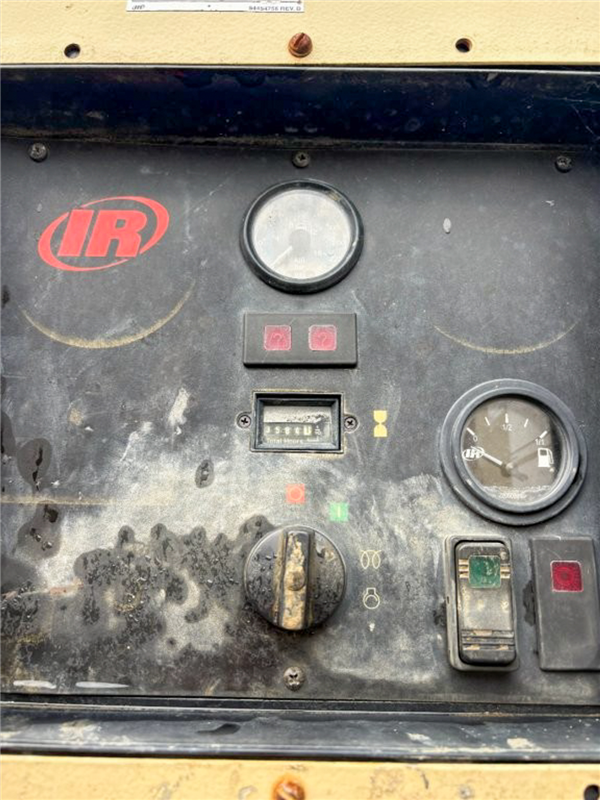

  • 3,584 Hours

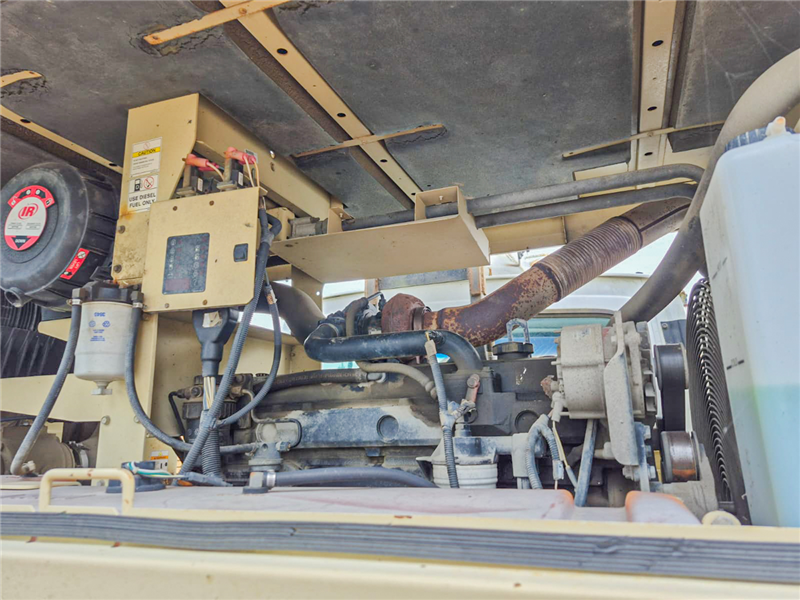

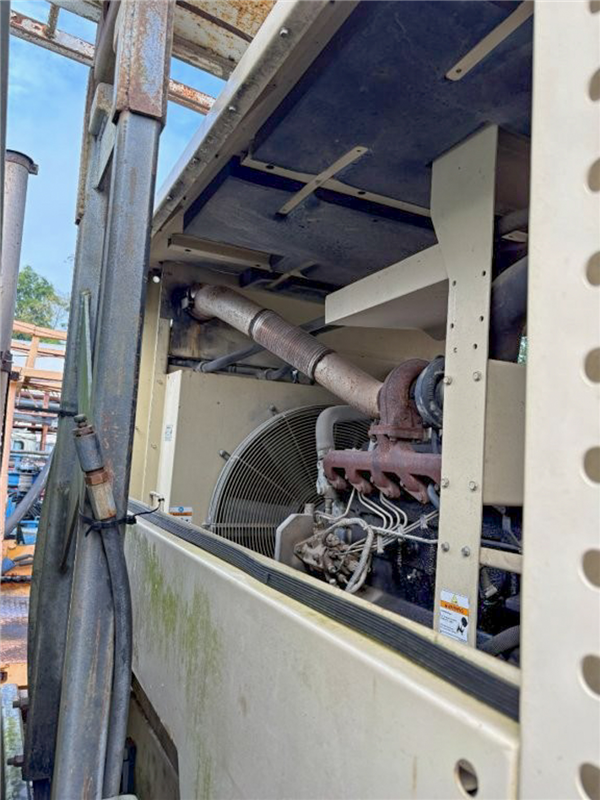

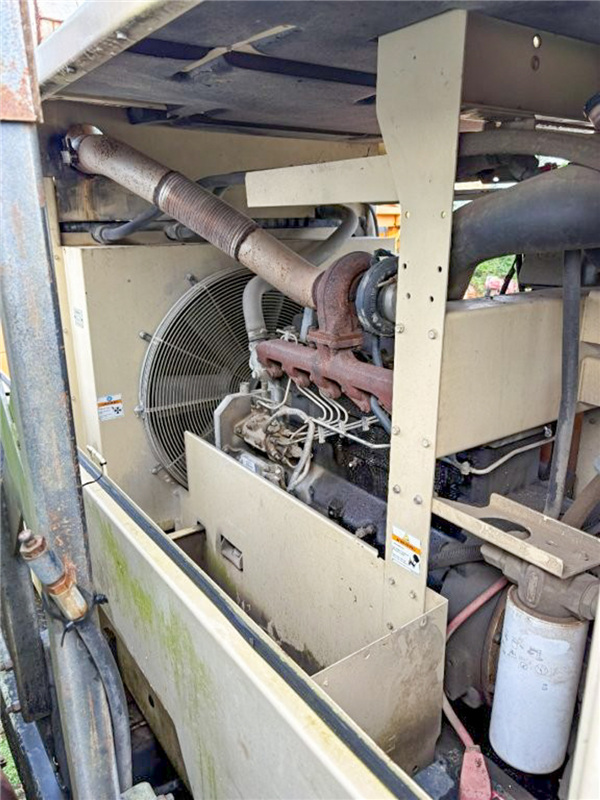

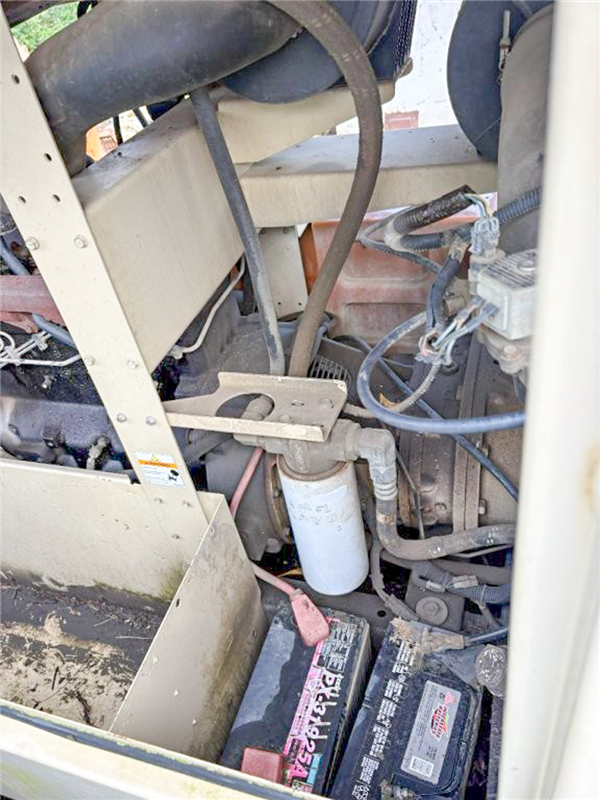

  • John Deere 6.8L Turbocharged Diesel Engine
  • Compressor Serial Number: 371039UEQA62
  • Suitable For Well Development And/Or High-Speed Rock Drilling
  • 200 PSIG Rated Pressure - Capable Of Running A Standard Water Well DTH Hammer



Mud Pump:

  • Optional:  Air-Operated Gardner Denver 5x6 Duplex Piston Pump can be Installed on Deck (Additional Cost).

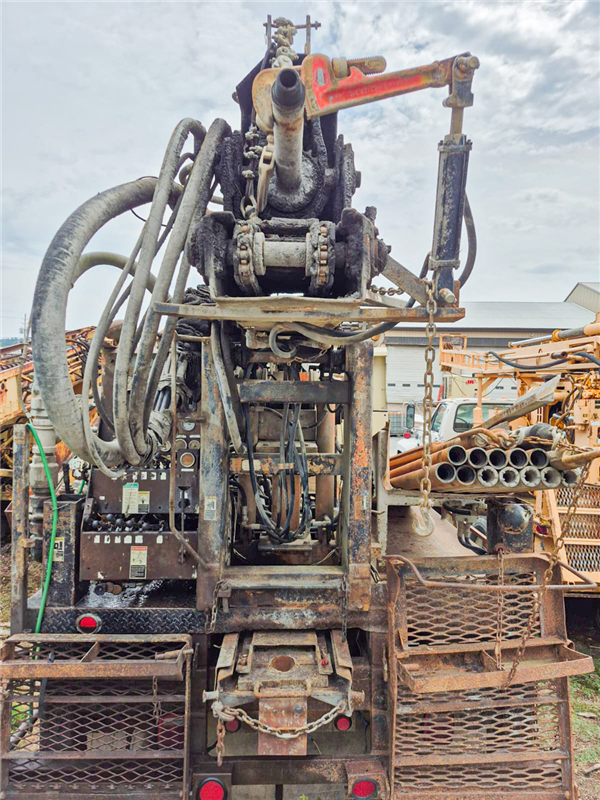

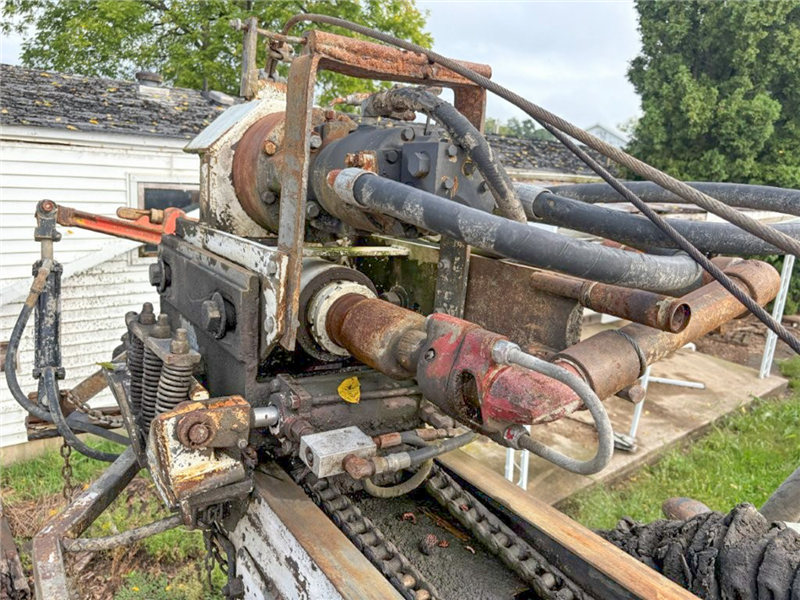

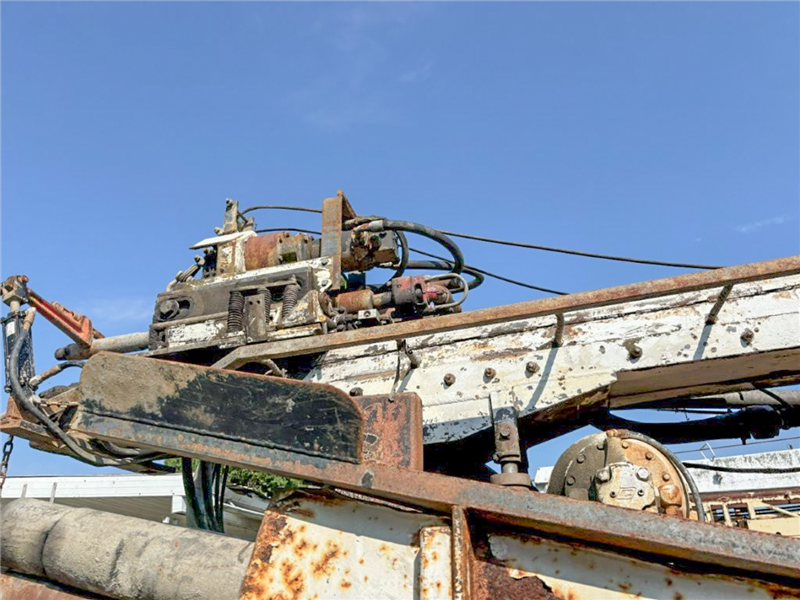

Hydrostatic Tophead Drive:

  • 3,050 Ft/Lbs. @ 235 RPM (Standard)
  • 5,795 Ft/Lbs. @ 0-125 RPM (Optional)



Built-In Floating Drill Head:

  • Makeup Tool Joints Without Adjusting Drill Head Position.



Hydraulic Off-Hole:

  • Remote Controlled; Allows Easy
  • Direct Access To Bore Hole.

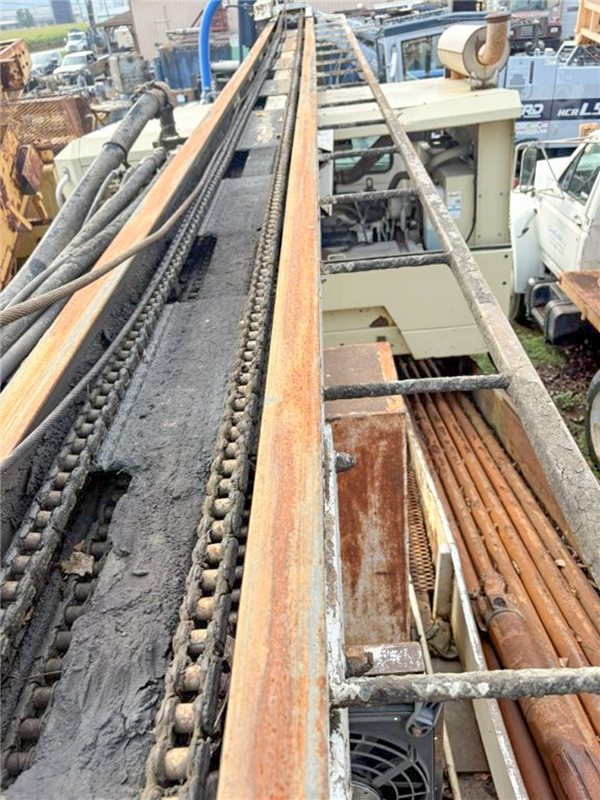

24' Stroke Mast:

  • Handles 20 Ft. Drill Pipe Sections With Ease.

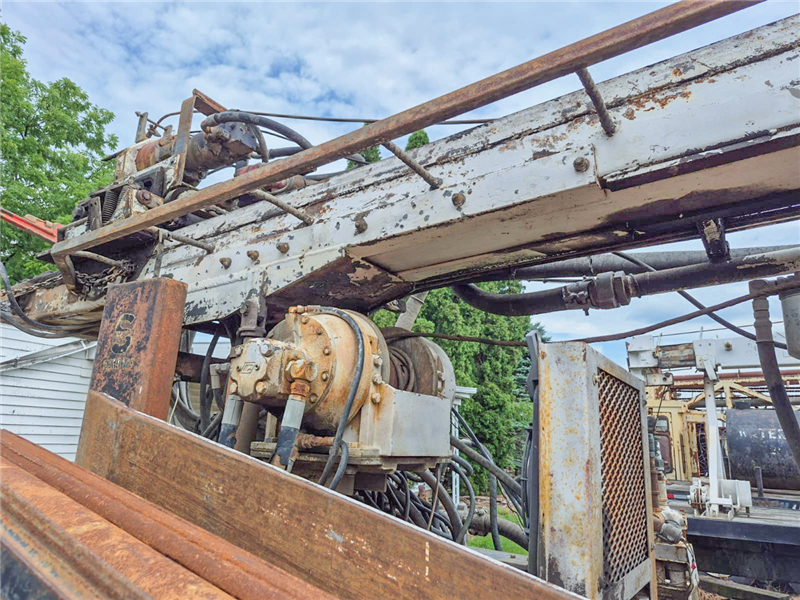

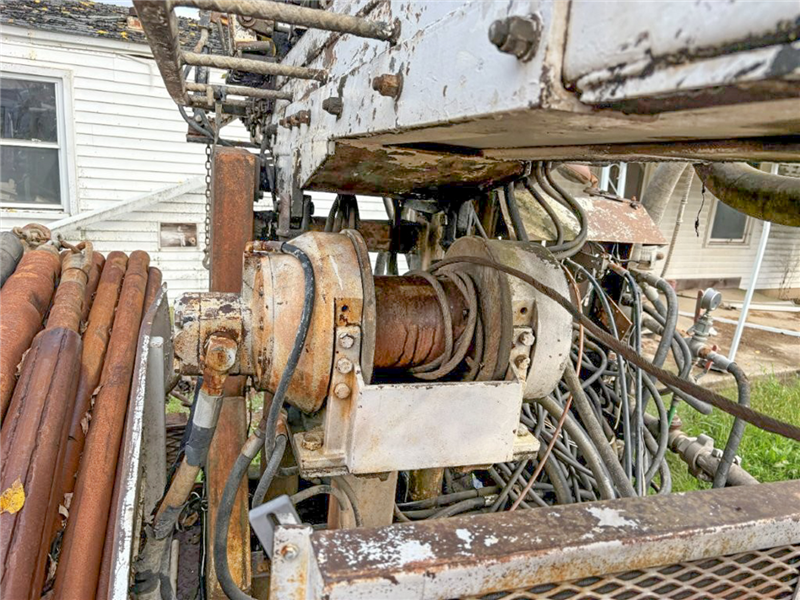

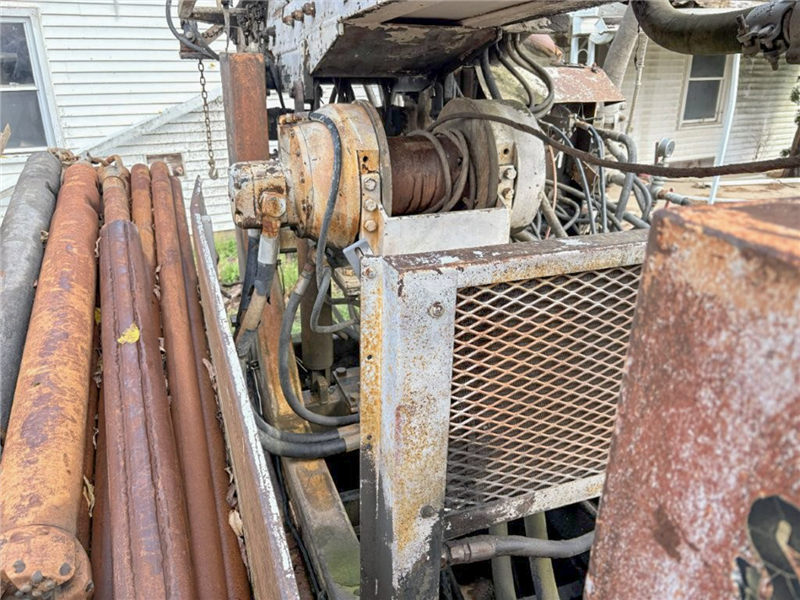

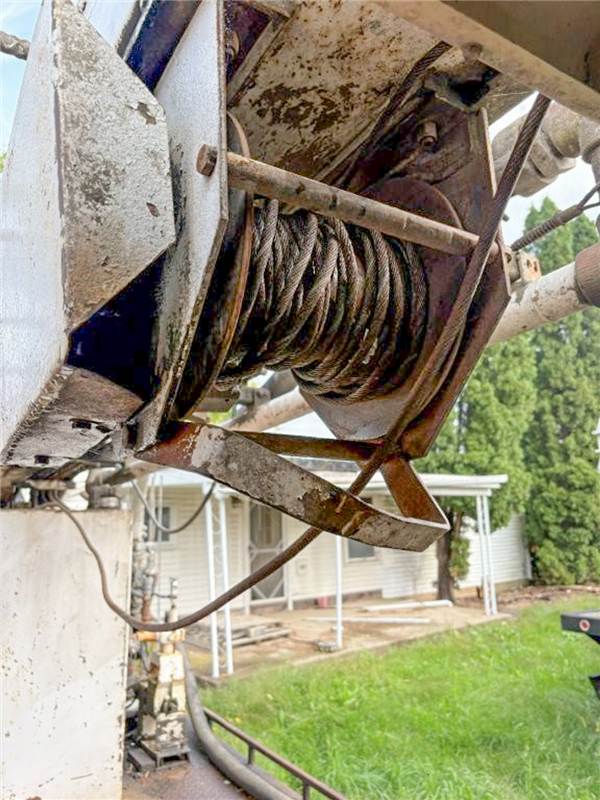

Hydrostatic Hoisting Winch:

  • Pullmaster 12,000Lb. Bare Drum Pull,
  • Infinitely Variable Speed Control Up To 94 Fl./Min.



Hydraulic Pull Up/Pull Down/ Hold Back:

  • Rated At 13,450 Lbs.
  • Infinite Speed Control Allows For Precise Drilling.

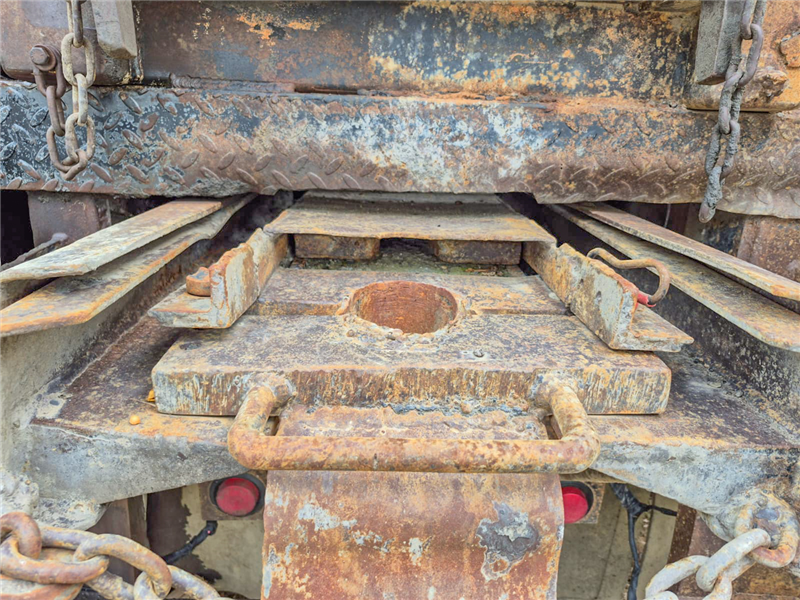

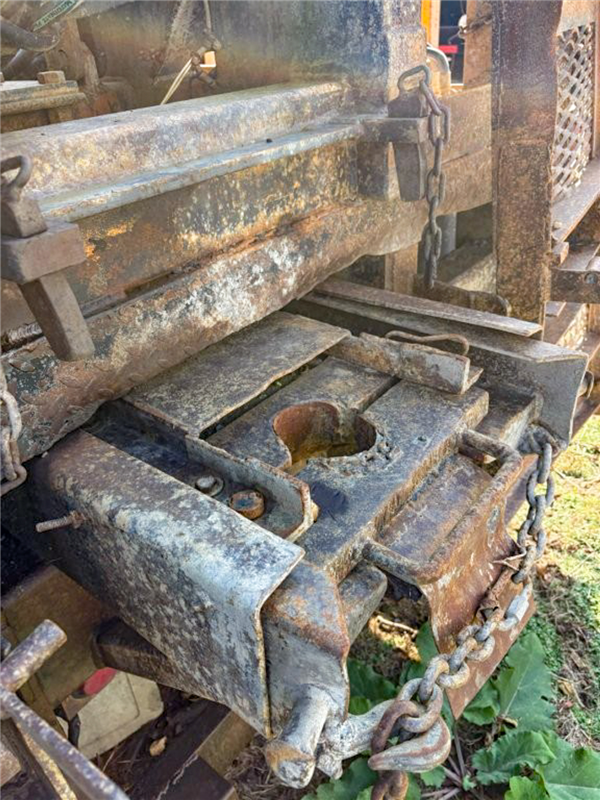

Hydraulic Retractable Table And Flat Wrench:

  • Makes Tool Handling Simpler And Easier.



Hydraulic Breakout Wrench:

  • Mast Mounted
  • Eliminates Manual Breakout Of Tool Joints.

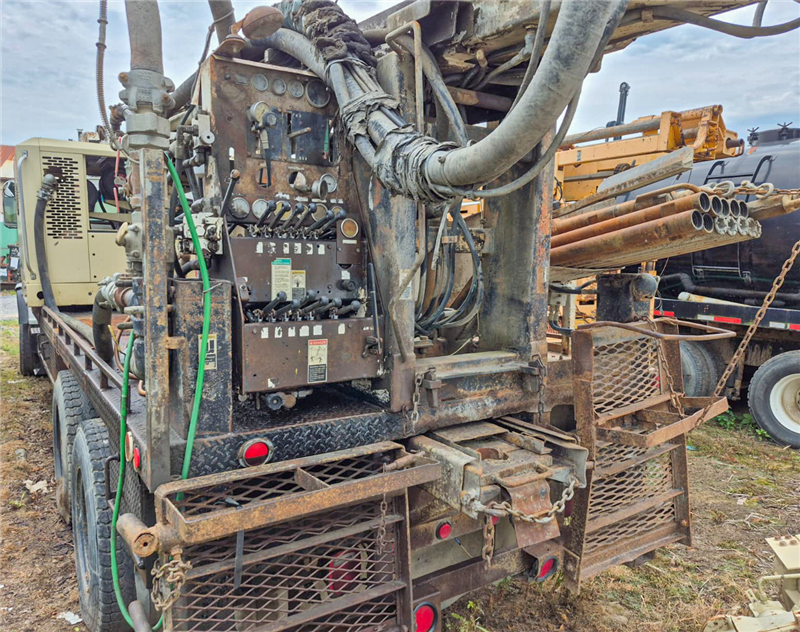

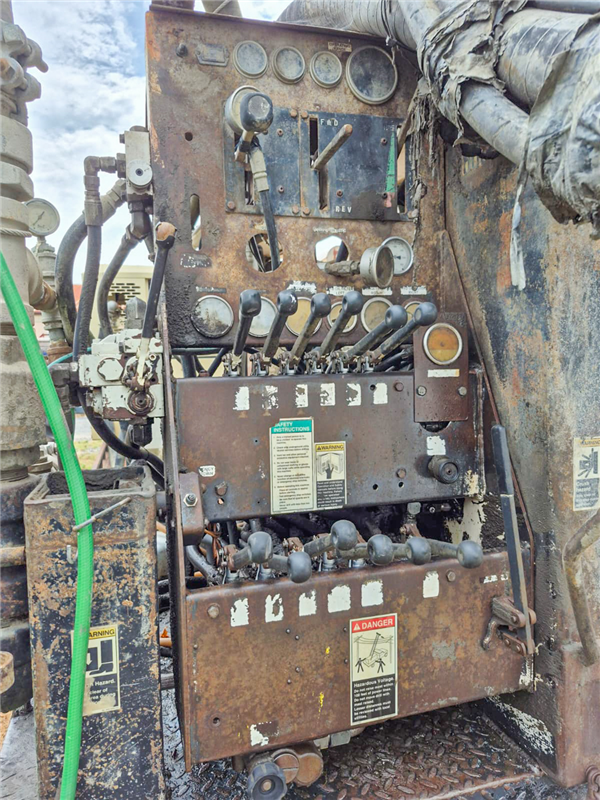

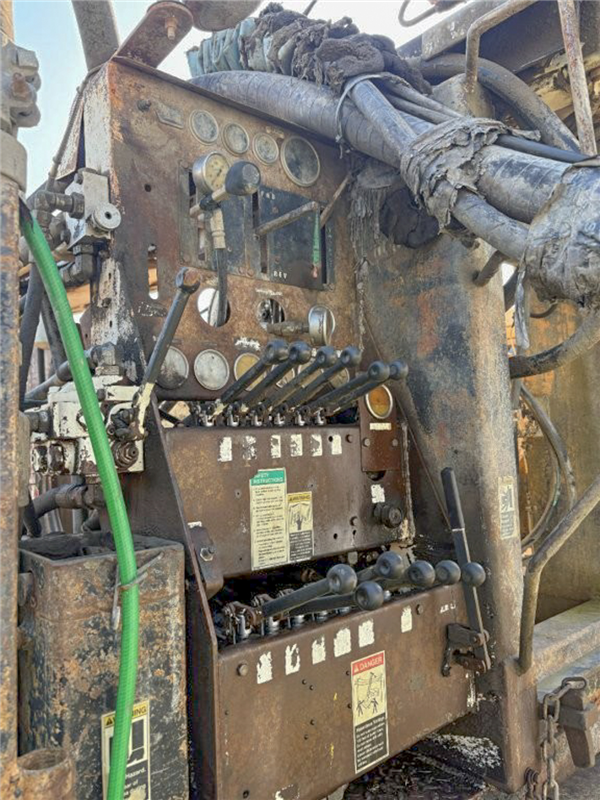

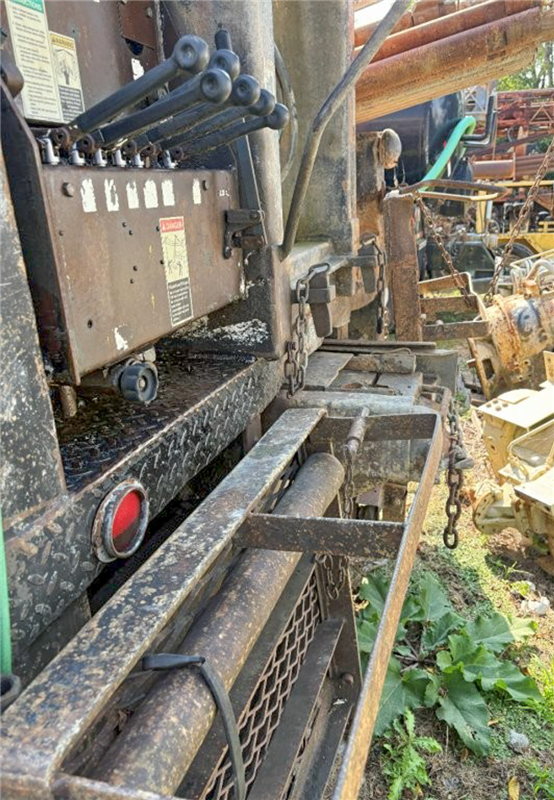

Finger tip hydraulic controls:

  • All Controls Are Conveniently Located
  • Operator Has Complete View Of Work Area;
  • Includes Feed Rate And Bit Pressure Controls.



Heavy Duty Water Swivel:

  • Top Feed Style With 2-1/2" Watercourse.

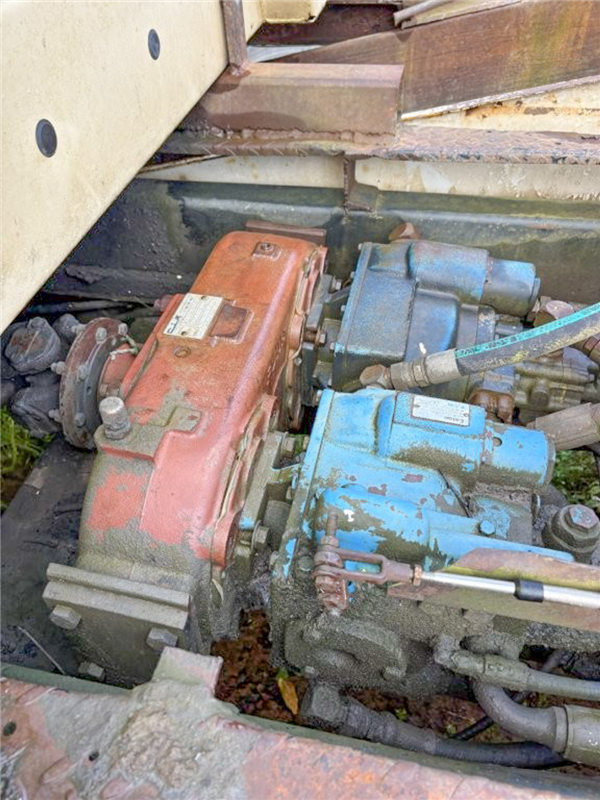

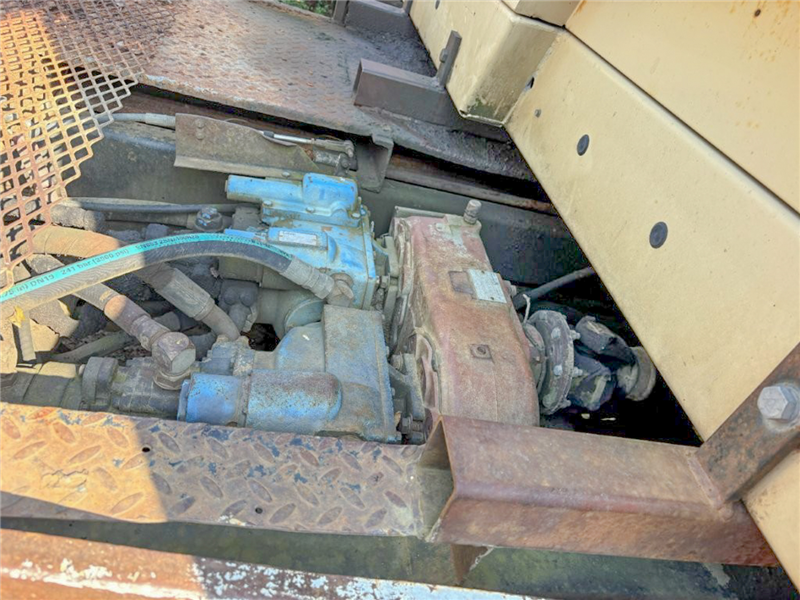

Power Unit:

  • PTO Powered From Truck Engine
  • Ford 7.8L / 473 CID L6 Turbocharged Diesel Engine



Additional Features:

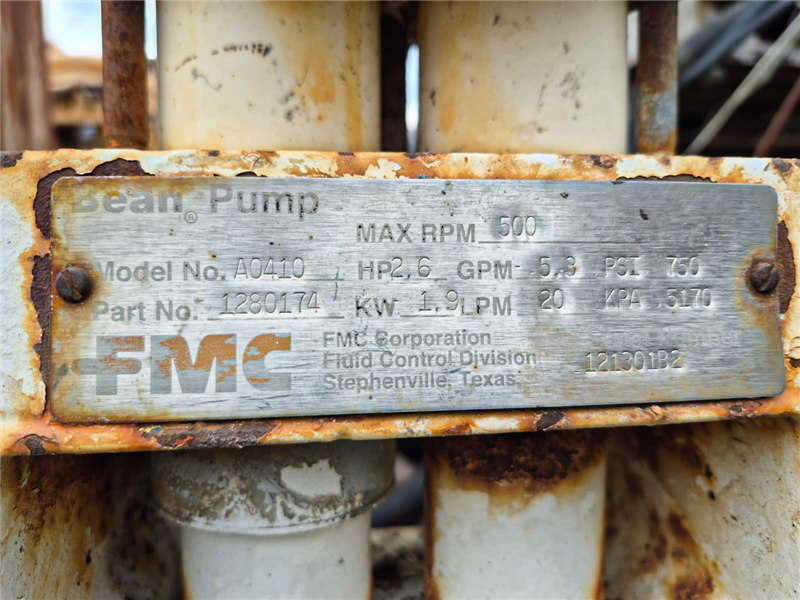

  • FMC A0410 2-Cylinder Water Injection Pump For Dust Control
  • 4 Hydraulic Leveling Jacks
  • Operator Platforms

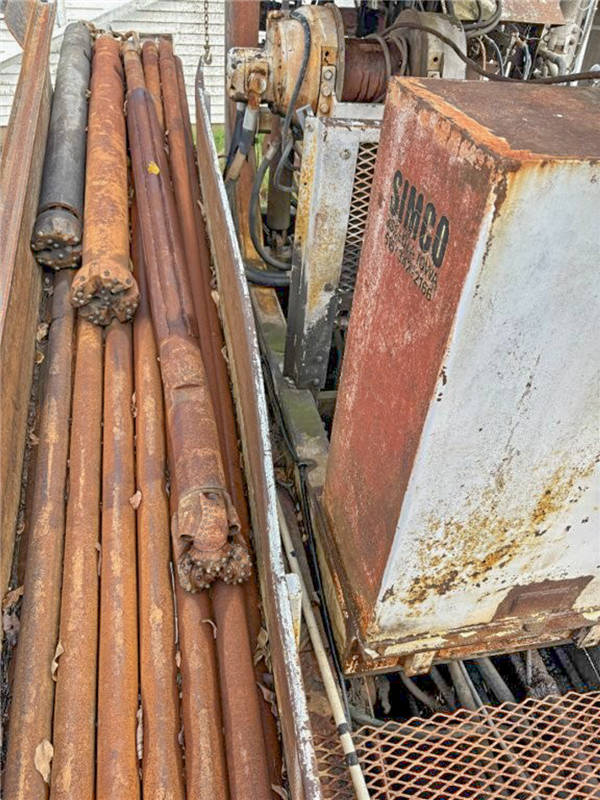

  • Drill Pipe Trough

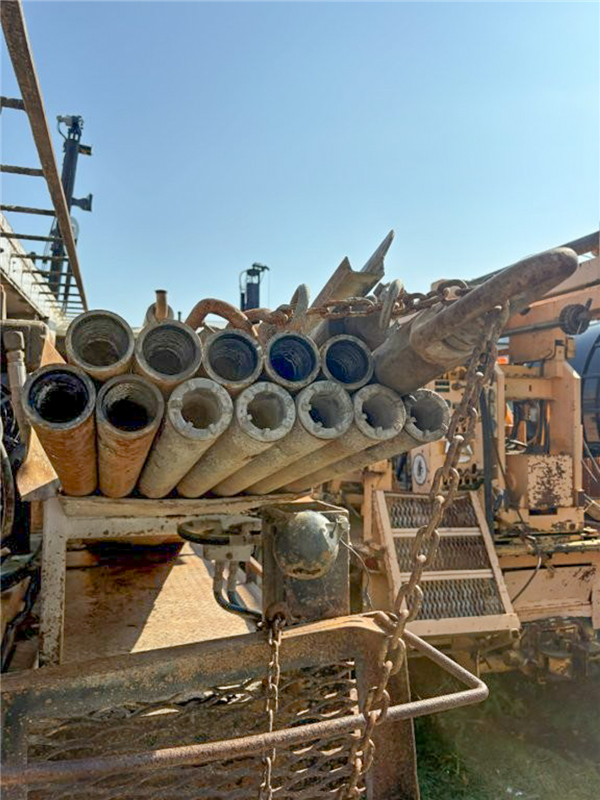

Tooling Included:

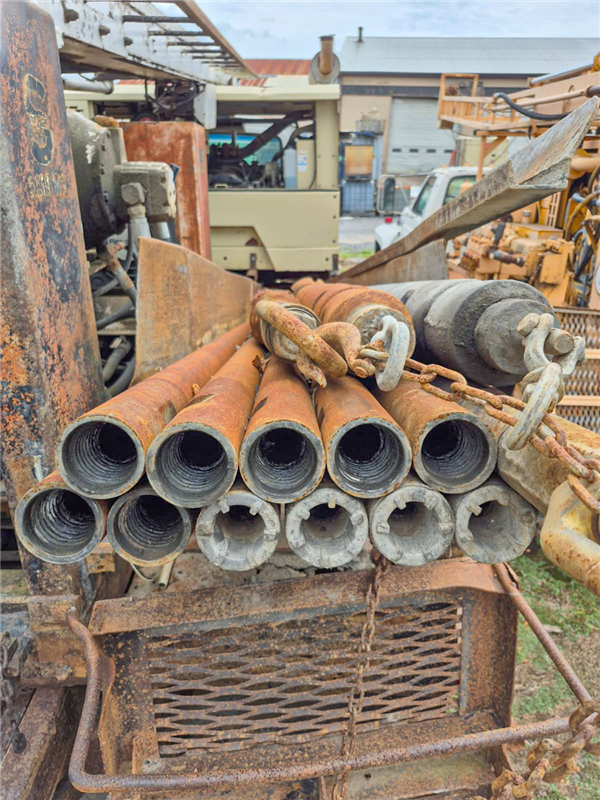

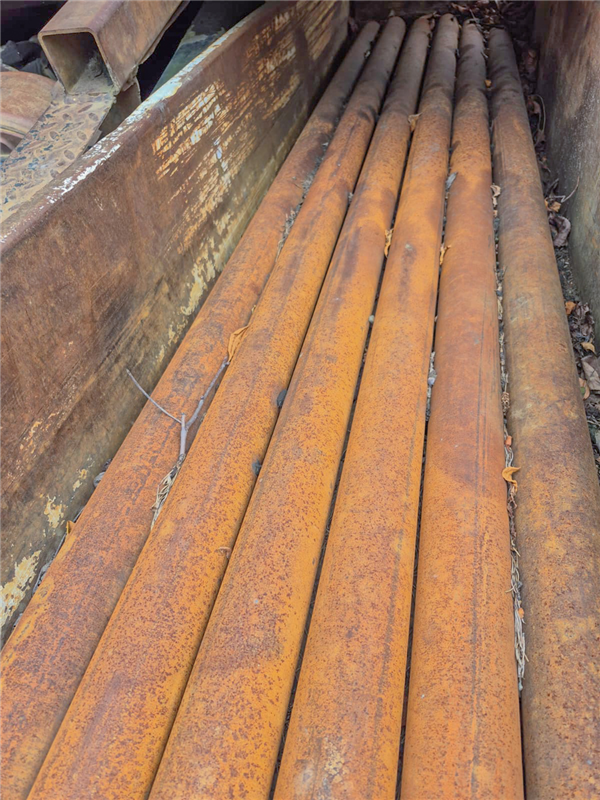

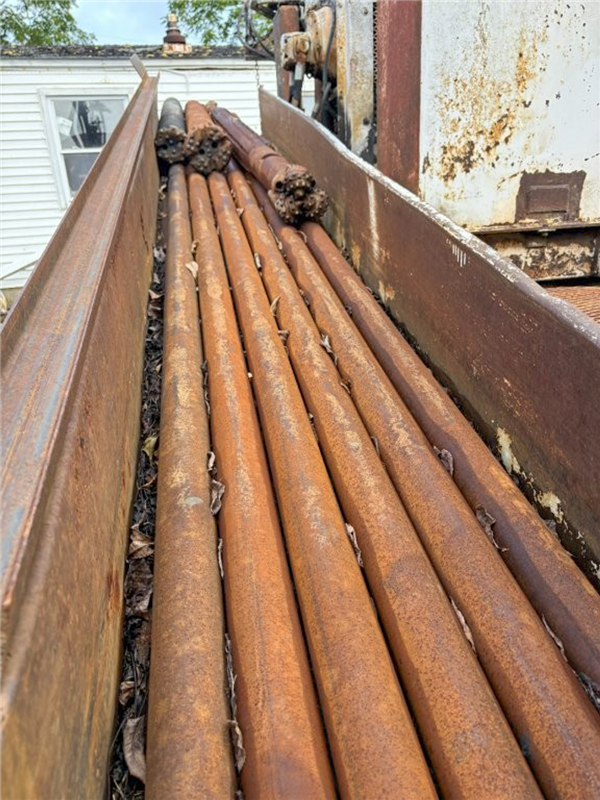

  • Qty. 12 pieces of 20 ft. x 2-3/8” Mayhew Jr. Drill Pipe.
  • Qty. 2 DTH Hammers With Bits.
  • Qty. 3 Lifting Plugs/Bails.
  • Qty. 1 Stabilizer with Tricone Bit.

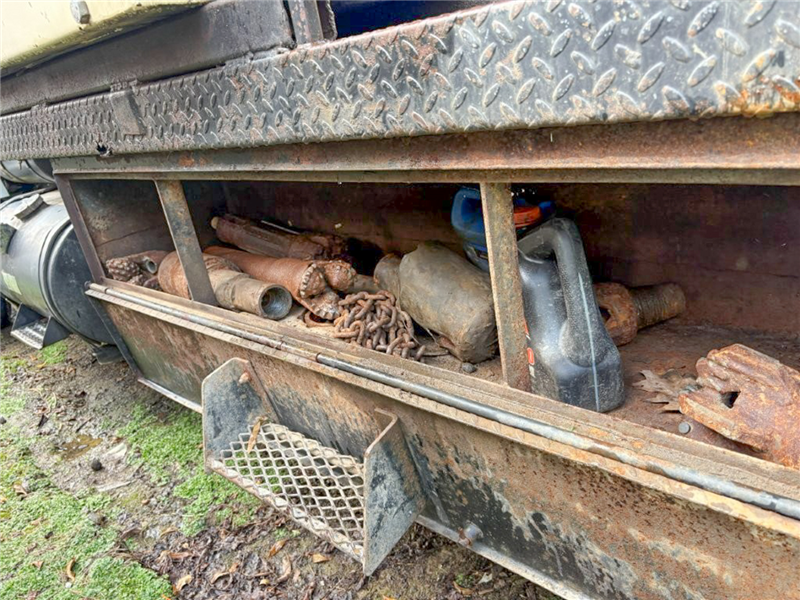

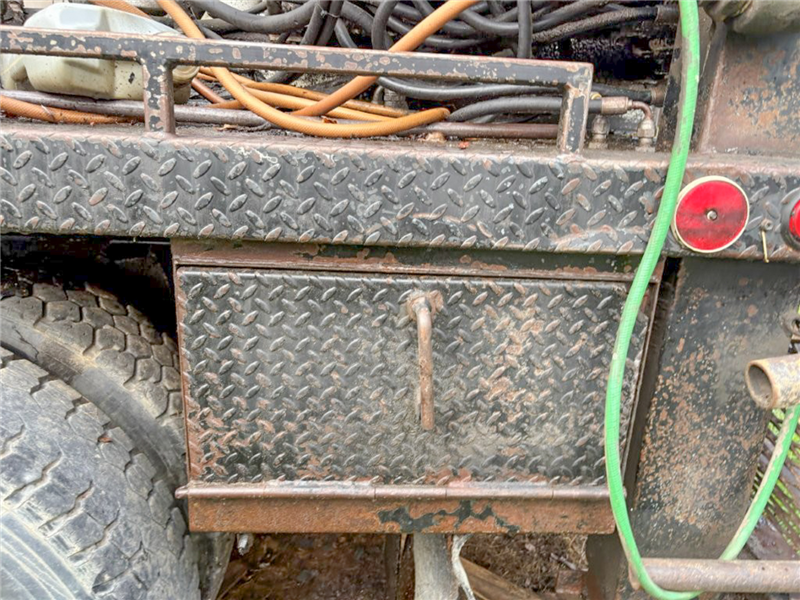

  • Qty. 3 Tool Boxes Under Deck
  • Addition Tricone Bits
  • PDC bit and Sub Adapters in Toolboxes are included.



Condition:

  • Used Drill – Was Previously Working In Upstate New York.
  • The Unit Does Have Some Rust And Likely Has Some Hydraulic Or Other Leaks.
  • EWD Can Complete Repairs In Our Workshop with Additional Cost and Lead Time.



Location:

  • EWD’s facility in Mifflinburg, Pennsylvania (USA).
