2003 Gus Pech 1300 Brat Series Auger Drill

2003 Gus Pech 1300 Brat Series Auger Drill

• Per the Seller: Single Owner, Purchased New From Factory, Rig In Good Working Condition And Ready For Work Immediately, Used Primarily As A Very Powerful Auger For Geotechnical And Environmental Drilling Applications, Also Used For Some Water Well Work
• Mounted To A 2003 Sterling 6 X 4 Truck
• CAT Engine – PTO Driven From Truck Engine
• 13,000 Ft Lbs Torque
• 18,400 Lbs Pulldown
• 24,500 Lbs Pullback
• Rig Has 18,200 Hours – New Engine At 12,900 Hrs – (5300 Hours On Engine)
• 12" Tube Style Mast
• Two Way Cross Top Head Slide
• Planetary Top Head Drive Gp-1300 Hydrostatic Top Head Drive 0-65 Rpm @ 13,000 Ft Lbs., 0-145 Rpm @ 5,828 Ft Lbs Torque
• 24" Stroke, Cable, Hyd Cylinder Actuated Pulldown/Retract Drill System (Pulldown 18,412 Lbs/Retract 24,537 Lbs.)
• Bypass Circuit For Rapid Pulldown/Retract System
• Pulldown/Holdback Feed Control System
• Two Speed Retract
• Dual Hydraulic Pump Drive System With Enlarged Gear Pumps For Increased Speed
• Oil Cooling System
• Standard Lighting (2)
• Tower Tool Carrier For Transportation
• 4 Point Outriggers: 5'X36"X3" Front Behind Cab Hosed Together With One Control And 5'X30"X3" Rear

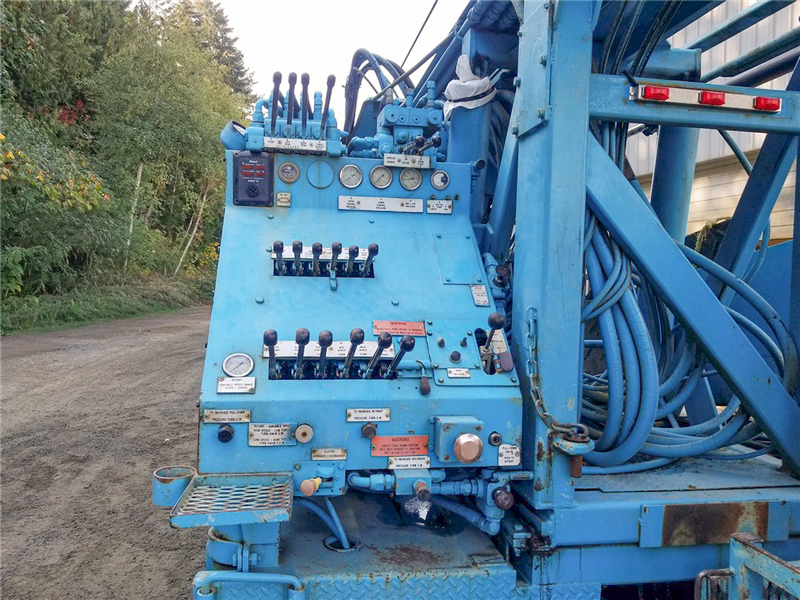

• Operator Controls Including Tachometer, Key Ignition Switch, And Gauges Pertinent To The Operation Of The Drill
• Angle Drilling Lower Tower Supports
• Operator Foot Stand
• Hydraulic Slide Base
• Hydraulic Lowering Brat E Style Foot Guide With Hydraulic Tool Clamp (Enlarged To Handle 8 1/4" Id Augers)
• Hydraulic Swing Around Jib With Hydraulic Extension
• 2,000# (First Layer) Gp Winch, With Large Dia. Drum, With Headache Ball, 1/4" X 150' Cable With Swivel Hook, On Jib
• 12,000# (First Layer) Pullmaster Winch With Rapid Reverse, 1/2" X 200' Cable With Swivel Hook Diedrich Sample Hammer System
• Stationary Drill Rod Rack (10') With Hammer Holder For NWJ (150'-30 Rods)
• Special 5' Rod Rack And 10' Rod Rack For 20 AWJ Rods
• Swing Around Auger Racks (2) Under Both Sides Of Rig
• Swing Around Auger Rack, Rear Mounted As Per Basil Rig
• 2 1/2" U-Joint Attachment With 2" Adapter
• 2 Sets Auger Guide Bushing (8 1/4" Id, Customer Specify)
• Cotta Heavy Duty Transfer Case System
• Located in Western Region
