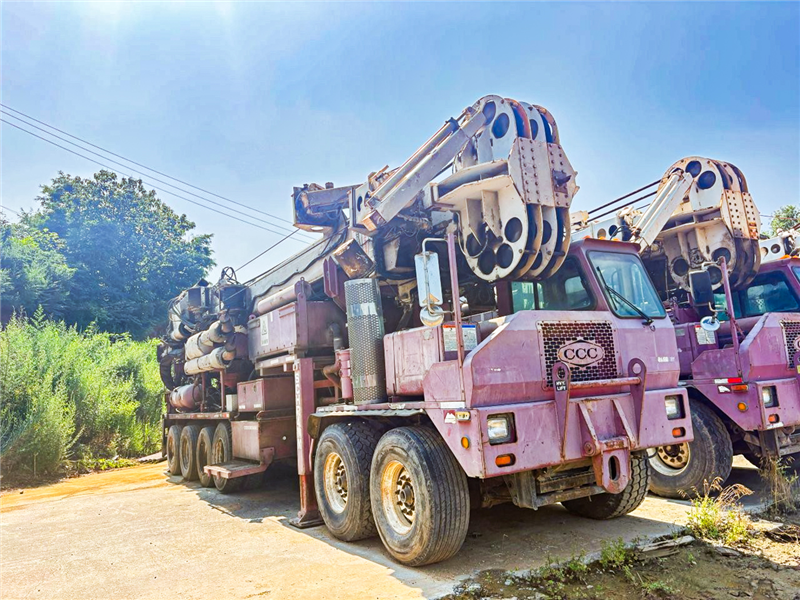

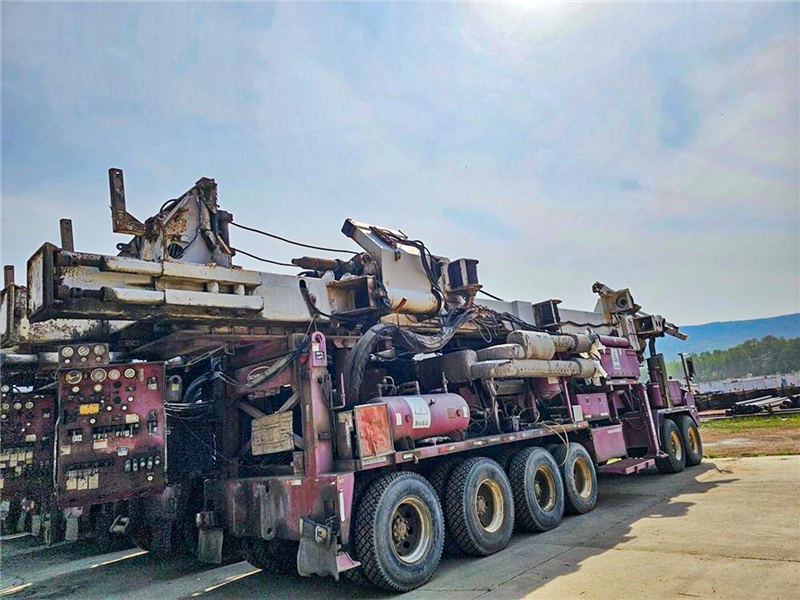

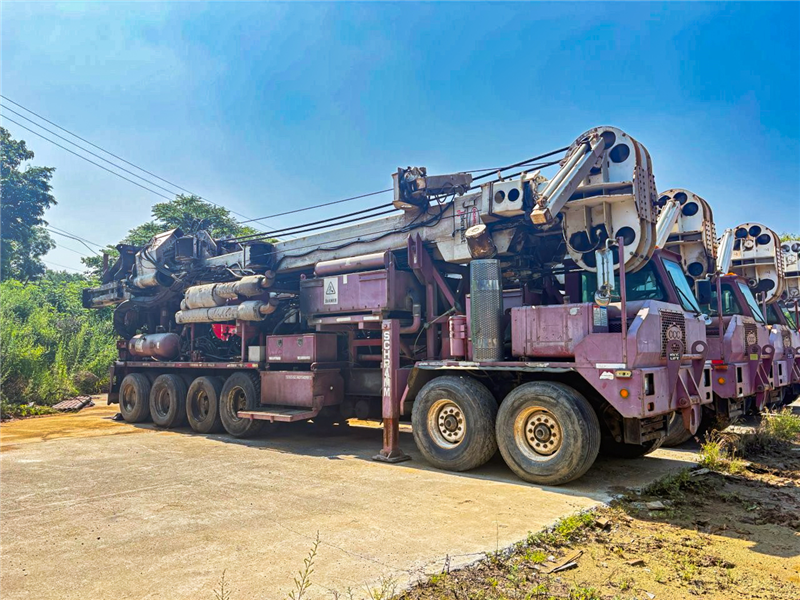

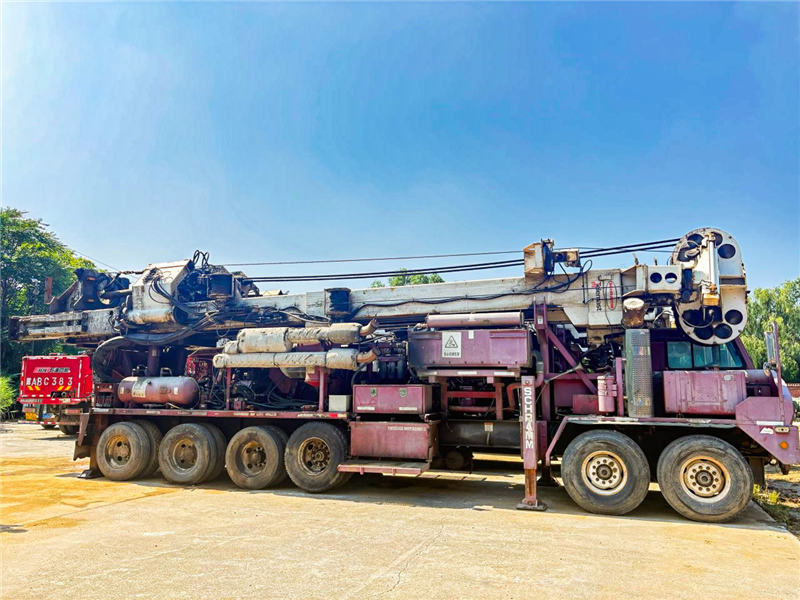

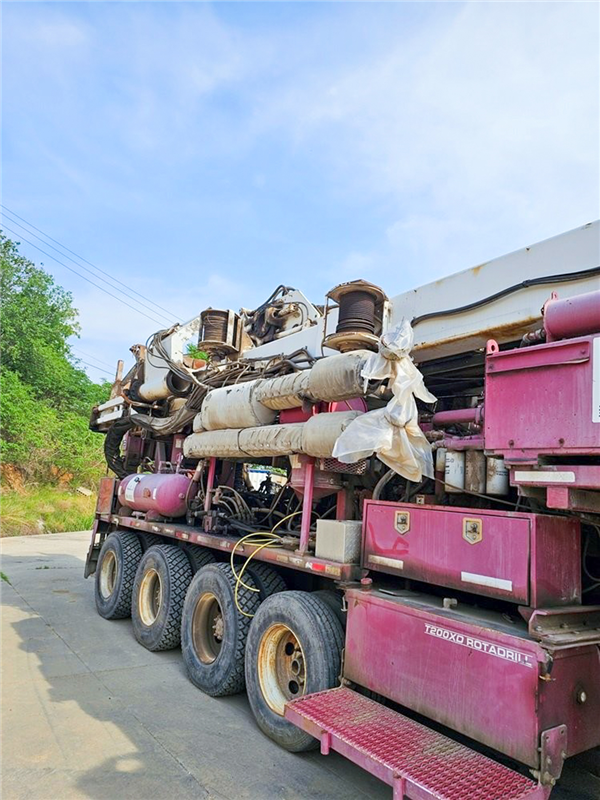

2010 Schramm T200XD Deep Water / Oil & Gas Energy Drill Rig.

2010 Schramm T200XD Deep Water / Oil & Gas Energy Drill Rig.

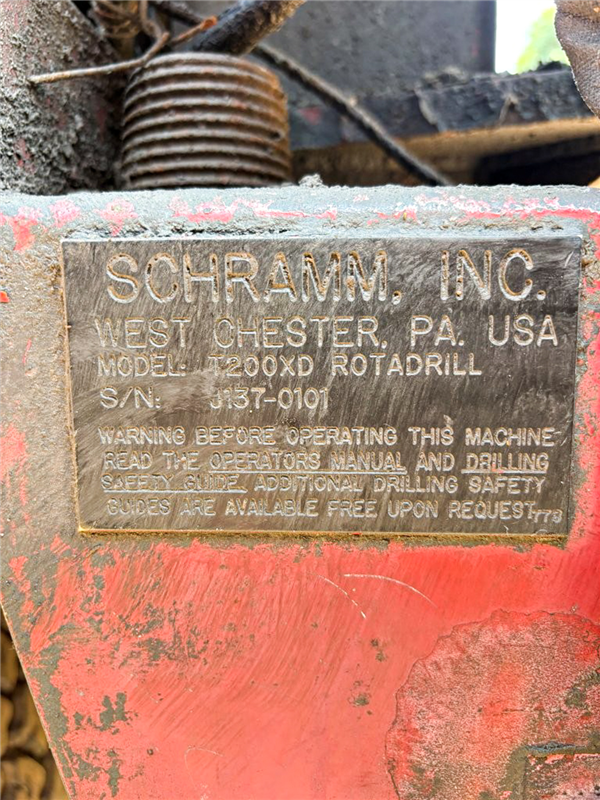

• Serial Number: J137-0101
• Hours: 31,306 hrs
• Includes Original Schramm Iron Roughneck and Original Schramm LoadSafe® Pipe Handling System Mounted On Aspen Trailer.
• Stacked Summer Of 2026
• Up to 200,000 LBF ( 890 kN) Pullback
• Range III Tubular Capability
• Compact 50 ft (15.2 m) Transport Length
• Precise Hydraulic Weight On Bit Control

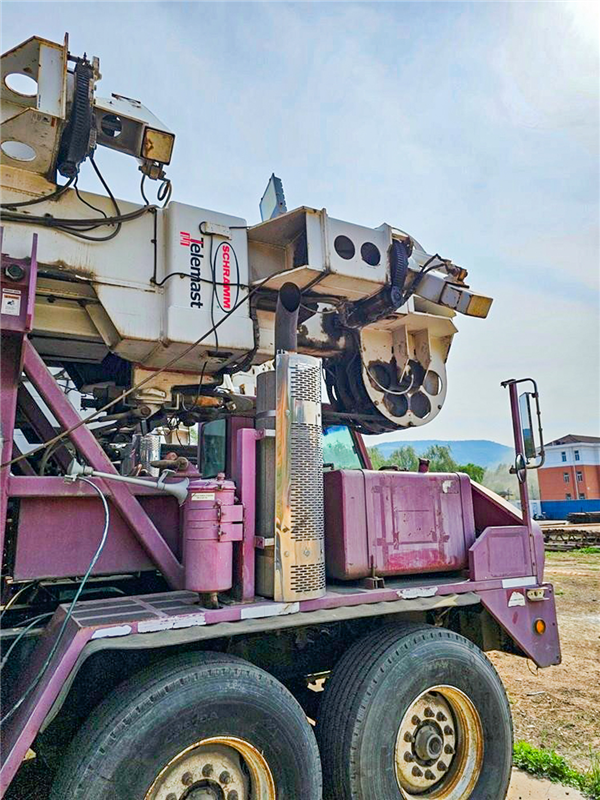

TELEMAST:

• Telescoping Hydraulic Derrick For Easier Transportation While Maintaining Range 3 Casing Capabilities.

DECK ENGINE:

• Detroit Diesel DDC/MTU 12V-2000TA DDEC
• 760 bhp (567 kw) @ 1800 rpm
• 2 X 110 Gallon (415 L) Fuel Tanks
• Electric Start; We Have Videos Of Startup And Running In Early July 2026

COOLING:

• Two Core, Side By Side Heat Exchanger With Variable Speed Cooling Fan
• 130°F (54°C) Ambient Design Temperature

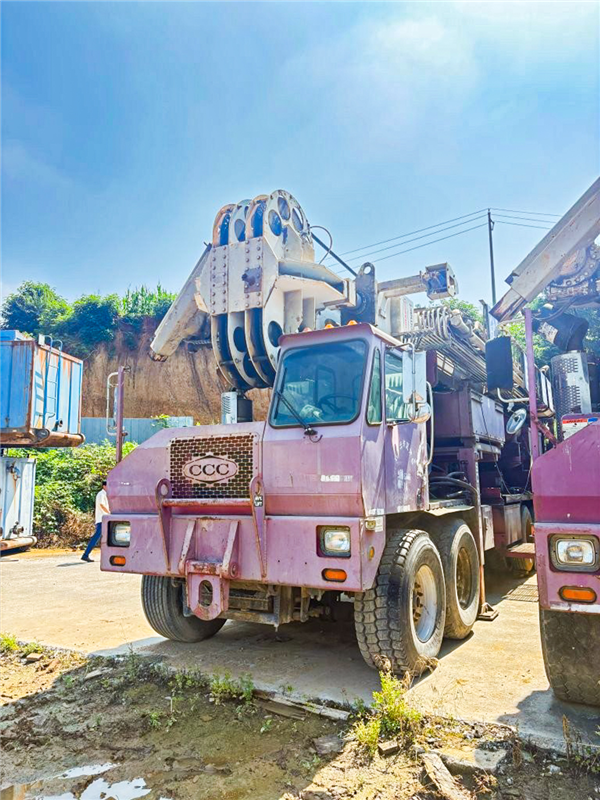

CARRIER:

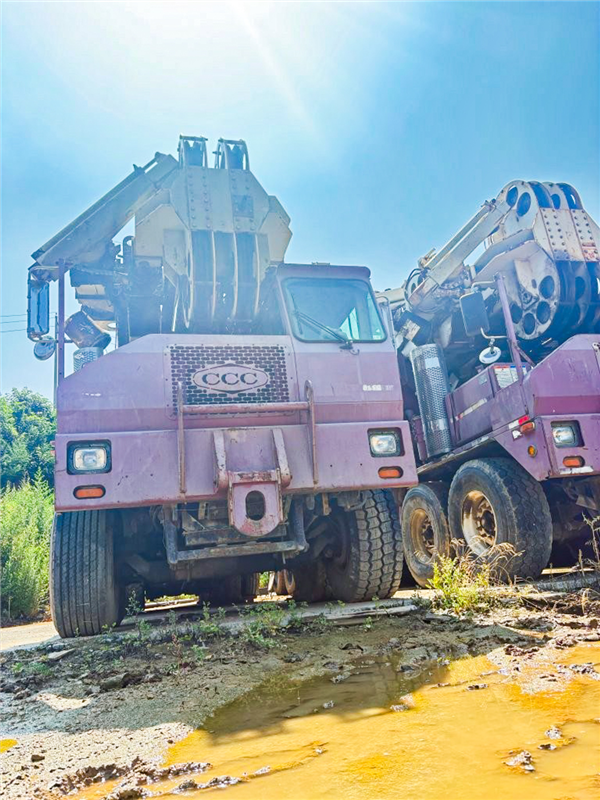

• CCC 12 x 6 Carrier
• Wheel Base 25 Ft (7.6 M)
• Cummins Engine Rated 420 Hp @ 1,900 Rpm
• 44,000 Lb (19,955 Kg) Front Axle
• 23,000 Lb (10,433 Kg) Pusher Axle
• 77,000 Lb (34,927 Kg) Rear Tridem
• 142,500 Lb (64,637 Kg) GVWR

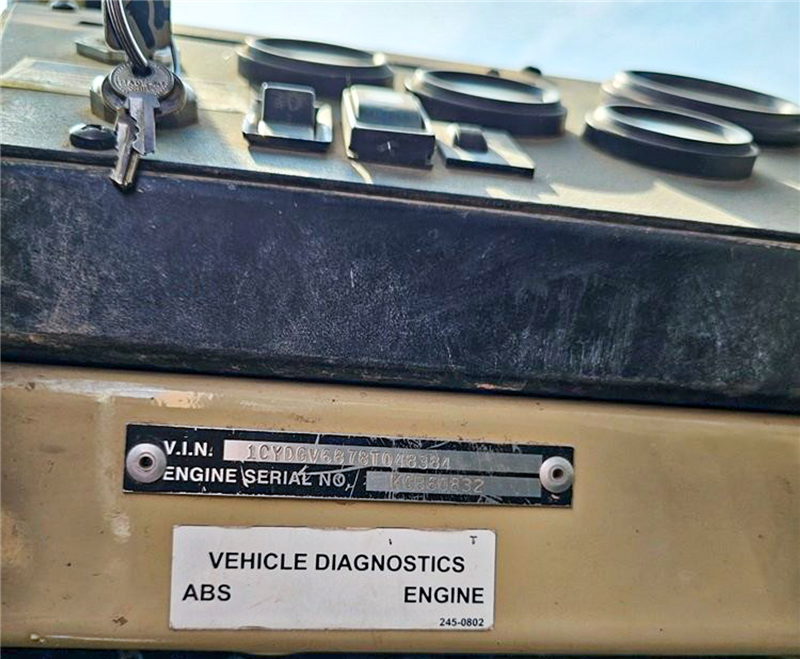

CCC Truck VIN:

• 1CYDGV6878T048384

MAST:

• Telescoping Mast Design Permits Long Head Travel And Working Height, Yet Short Overall Length In Transport Position
• Free-Standing Mast Design
• Hydraulically Operated Adjustable Mast Feet And Slip Box

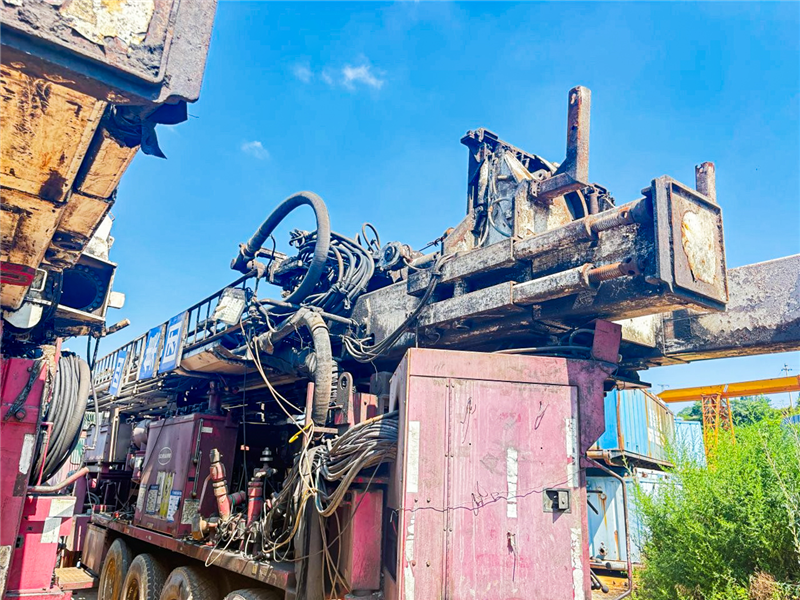

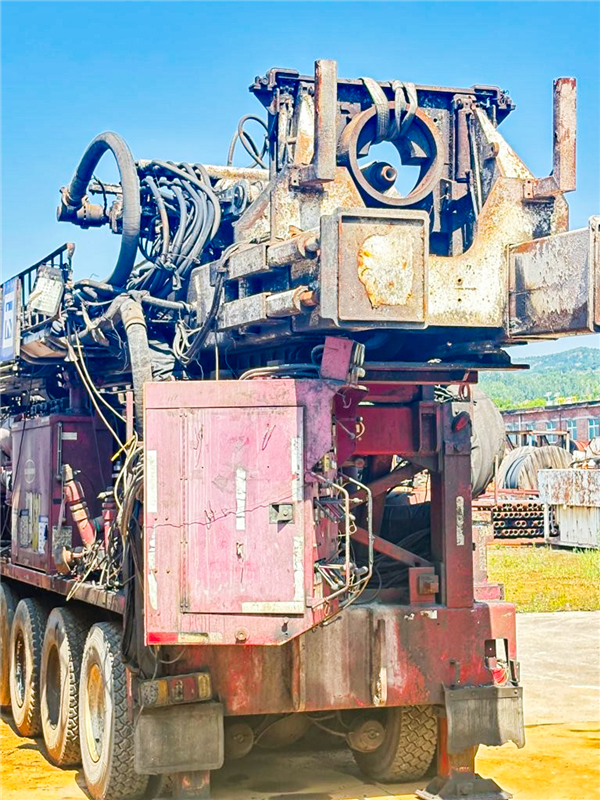

TOP HEAD DRIVE:

• Heavy Duty, Single Reduction Gearbox With 4 Two-Speed Disc Valve Type Hydraulic Motors
• Infinitely Variable Rotation Speed Via HRC Control
• Torque: 0 - 90 RPM @ 17,750 Ft-Lbs (24,066 N-M). 0 - 180 RPM @ 7,670 Ft-Lbs (10,399 N-M)
• Rotation Speed: 0 - 180 RPM
• Maximum Operating Pressure: 3,000 Psi (208 Bar)

FEED SYSTEM:

• 50 Ft (15.24 M) Head Travel
• 200,000 LBF (890 kN) Pullback
• 100 Fpm (30.5 M/Min) Pullback Speed
• 32,000 LBF (142 kN) Pulldown
• 200 Fpm (61 M/Min) Pulldown Speed

DRILL TABLE

• Table Opening: 30 Inches (768 Mm) Diameter With Table Retracted
• Hydraulically Retractable Slip Box

DRILL PIPE AND CASING:

• Range III Tubular Capability
• 30.25 inch (768 mm) Maximum Diameter Through The Slip Box

OUTRIGGERS

• Dual Front - 5 inch (127 mm) bore x 36 inch (0.91 m) stroke
• Dual Rear - 5 inch (127 mm) bore x 41 inch (1.04 m) stroke

WINCH:

• Planetary Design With Spring Applied Hydraulic Release Brake
• 9,600 LBF (42.7 Kn) Bare Drum Line Pull
• 150 FPM (46 M/Min) Bare Drum Line Speed

HYDRAULIC SYSTEM:

• Open Loop Load Sensing System
• 210 Gallon (795 L) System Capacity
• 7 Micron Filtration

ELECTRICAL SYSTEM:

• 24 Volt DC Electrical System

RIG WEIGHT AND DIMENSIONS:

• Note: For General Illustration Only, Varies With Rig Configuration
• OA Length, Transport: 50 ft (15.2 m)
• OA width: 9 ft 6 inches (2.9 m)
• OA Height, Transport: 14 ft (4.27 m)
• Typical: 118,000 lbs (53,524 kg)

STANDARD ACCESSORIES:

• Tool Box, Pipe Handling Sling, Breakout Wrench
• 50 Hour Maintenance Kit

TUBING HANDLING:

IRON ROUGHNECK:

• A Hydraulic Roughneck On The Rig Eliminates Manual Tongs And The Typical Risks Associated With Their Use While Tripping Drill Pipe

SCHRAMM LOADSAFE, BUILT TO HANDLE DRILL PIPE, COLLARS OR CASING SAFELY AND EFFICENTLY:

LoadSafe® automated system is fully integrated into the TXD rig rated at 200,000 lb hoist, and is also

LoadSafe® is fed from hydraulically operated pipe racks set up in the horizontal position, eliminating “crow’s nest” safety concerns found in traditional vertical pipe handling systems.

Drill pipe or Range III casing is lifted from rack position into alignment with the tilting top head of the rig.

Hydraulic breakout-jaw system clamps pipe for quick and safe transition to the top head spindle.

Auto index device is designed to feed one pipe at a time.

Hydraulic racks stow on the loader for ease of transport. Racks can be positioned to load pipe from either side.

Trailer mounted design is easy to transport into tight spaces and can be set up and placed into full operation in a matter of minutes.

• Hands Free Operation
• Range III casing capability up to 47 ft (14.33 m) long
• Tubular range up to 30 inches (760 mm) diameter
• Lift capacity to 5,000 lbs (2,268 kg)
• Single Or Double Sided Pipe Rack Configurations Available At Additional Cost

TRAILER:

• Dedicated Use Tandem Axle Trailer Is Equipped with (8) 275 / 70R22.5 tires (44,400 lb or 20,140 kg rating) on 10 Hole Disc Aluminum Wheels
• 25K Tandem Axle Air Ride Suspension
• ABS Brakes
• DOT Lights
• 12 Volt Electrical System And 2 Inch (51 Mm) King Pin

TUBULAR HANDLING:

• Maximum tubular length 47 ft (14.33 m) Range III
• Maximum weight capacity 5,000 lbs (2,268 kg)
• Tubular diameter up to 30 inches (762 mm) with jaws removed
• Maximum jaw size 17 inches (432 mm)
• Slide travel 8 ft (2.4 m)

SKID MOUNTED HYDRAULIC PIPE RACKS:

• Racks Hydraulically Raise And Lower To Roll Pipe, Collars And Casing Into Feed Or Discharge Position
• Rack Loading Area Width 166 Inches (4.22 M), With Adjustable Height From 47 Inches (1.19 M) To 77 Inches (1.96 M) To Allow Transfer Of Tooling From Standard Pipe Hauling Trailers
• Racks Can Be Positioned Between Pipe Transport Trailers, Flat Bed Trucks Or Staging Racks

WEIGHT AND DIMENSIONS:

• Transport Length 40 Ft (12.19 M)
• Transport Width With Hydraulic Pipe Racks Stowed 10 Ft 2 Inches (3.1 M)
• Weight Of Trailer Only 24,500 Lbs (11,113 Kg) Approximate
• Weight Of Trailer And Racks In Stowed Position 33,500 Lbs (15,195 Kg) Approximate

VIDEOS AND MANY MORE PICTURES AVAILABLE UPON REQUEST.
