2004 Reichdrill T690WS Drill Rig

Item No
17418
Condition
Used
Manufacturer
Reichdrill
Status
Available
Model Year
2004
Model No
T690WS Drill Rig
Quantity
1
Price
Description

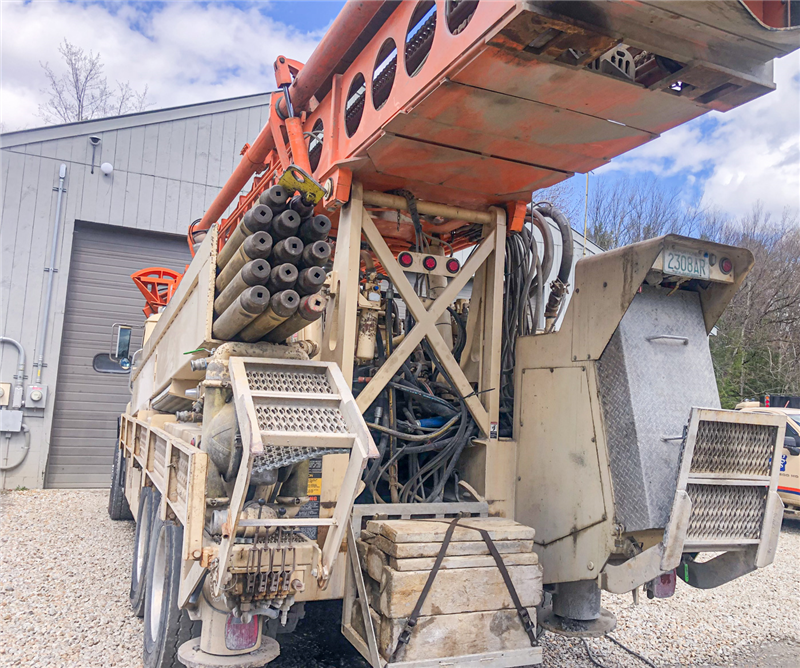

2004 REICHdrill T690WS Drill Rig



Rebuilt In 2020 With Approximately 4,500 Hours Since Rebuild

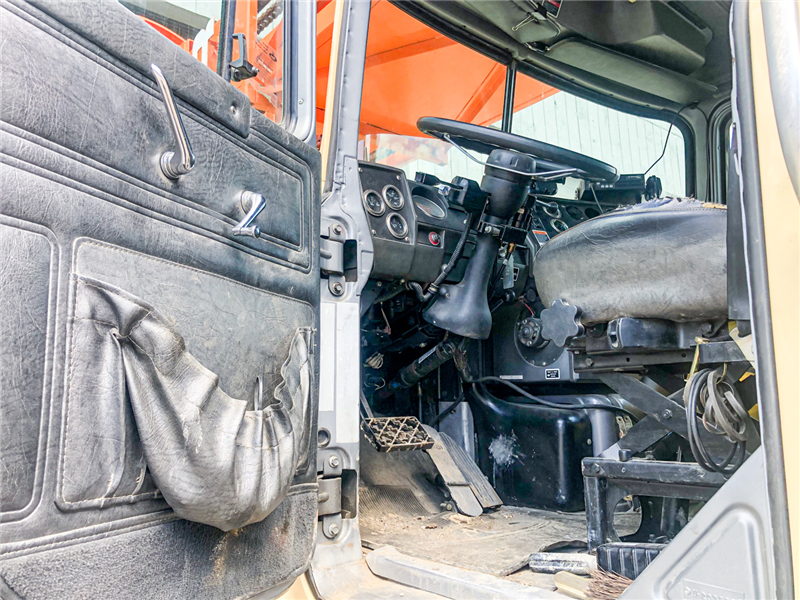

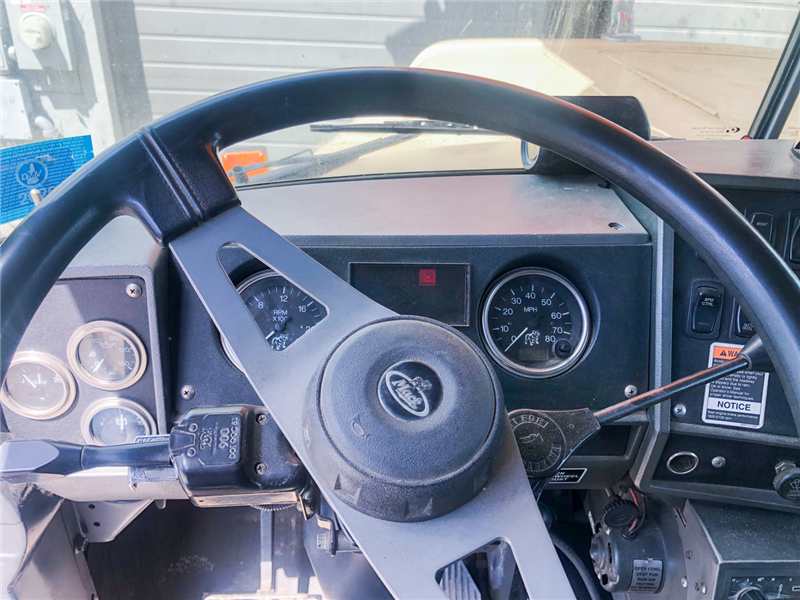

Mounted On A 2004 Mack DM690S Truck:

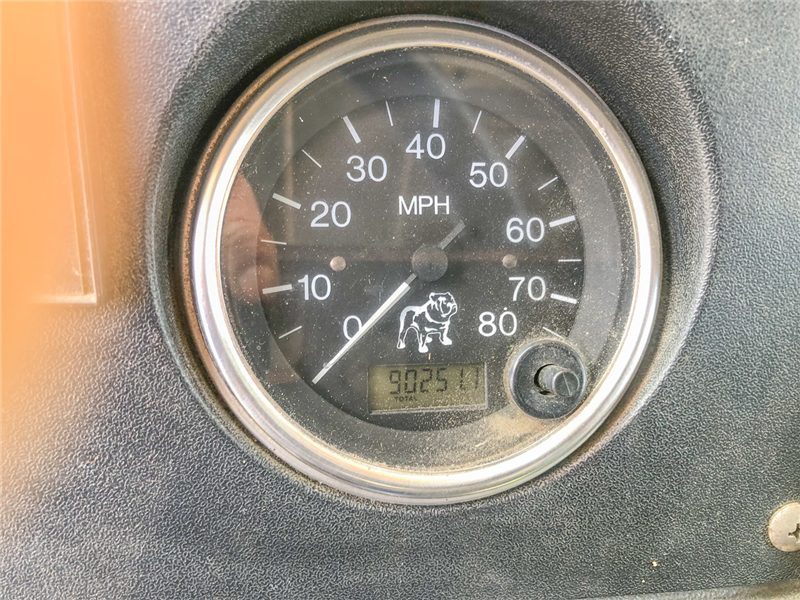

  • Carrier Mileage: 92,200 Miles
  • Drill Rig Frame Hours: 17,000 Hours
  • 300 HP Mack Maxidyne Engine
  • Mack Transmission
  • Jacobs Engine Brake
  • 50,000-Lb. Rear Axles
  • 20,000-Lb. Front Axle
  • Installed Tires in 2025 are in Very Good Condition with Aluminum Rims

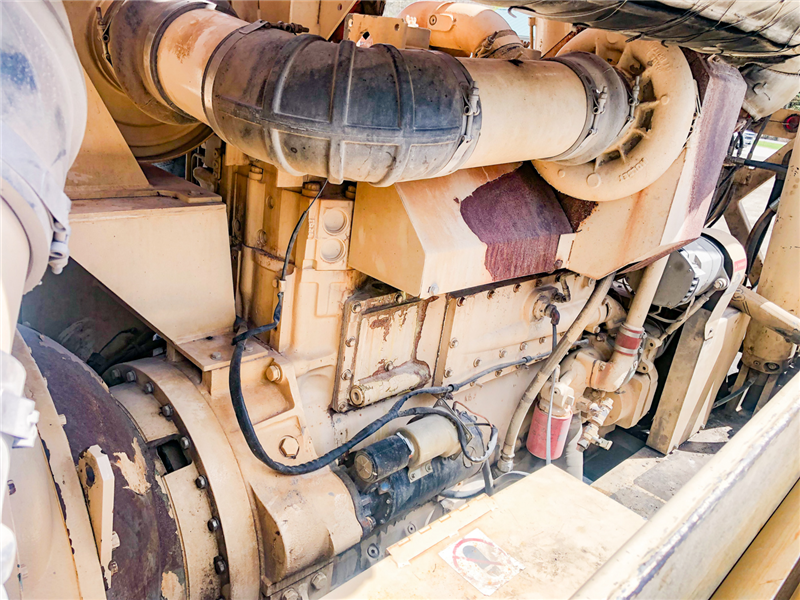

Deck Engine:

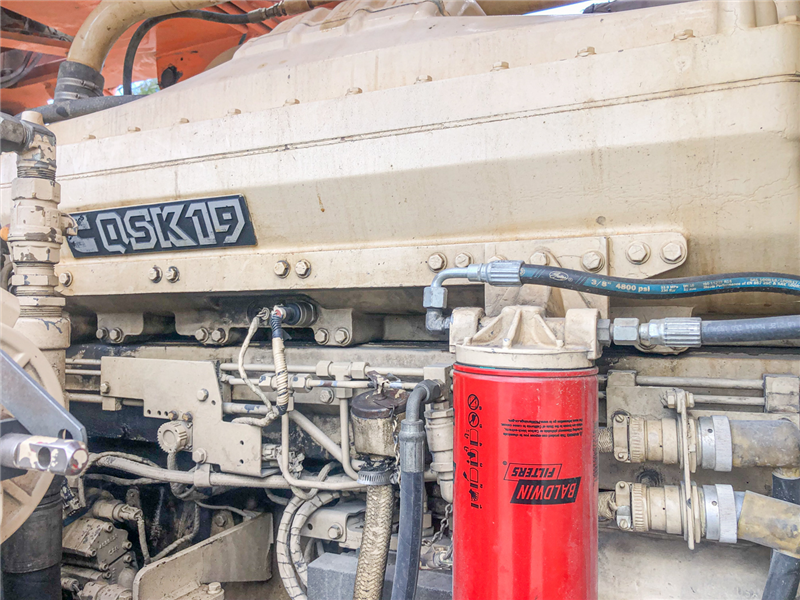

  • Cummins QSK19 Diesel Deck Engine
  • Serial Number: 37209151

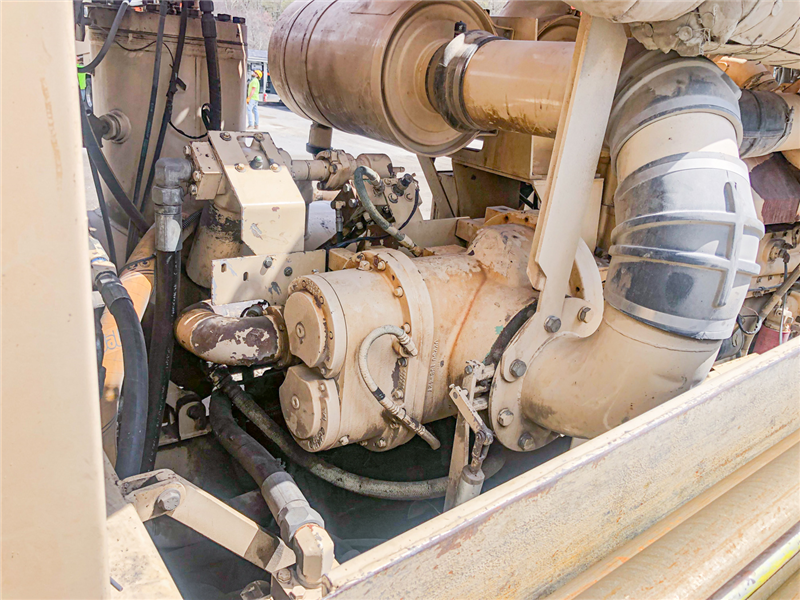

Air Compressor:

  • Sullair Air Compressor
  • 1,085 CFM @ 350 PSI @ 1,800 RPM
  • Rating Verified On Test Stand

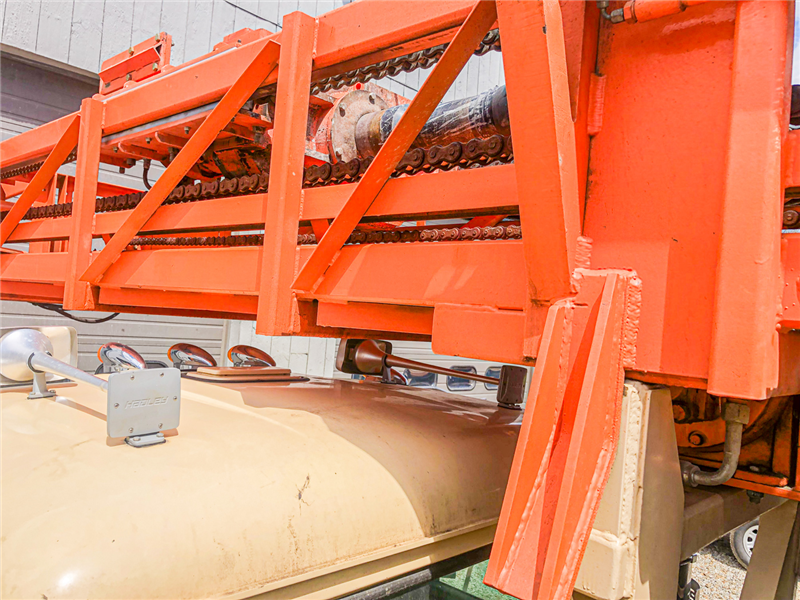

Mast & Rotary:

  • 34-Ft. Mast
  • 28-Ft. Stroke
  • 22-In. Table Opening
  • Table Bushings: 22 In. x 10 In.
  • Head Speed: 0–108 RPM @ 57,500 In.-Lb Torque:.
  • Pulldown Pressure: 35,000 Lbs.
  • Hoist Capacity: 30,000 Lbs.



Rod Handling:

  • 6-Rod Carousel Barrel Loader
  • Designed For 4.5-In. x 20-Ft. CP-Style Drill Pipe
  • Rod Box Capacity: 14 Drill Pipes, 4.5 In. x 20 Ft.
  • Aluminum Block Rack
  • Tool Holders For 8-In. Hammer And Stabilizer On Carousel Side
  • 8-In. Stabilizer Holder In Mast
  • 6-In. Hammer Holder In Mast



Water & Mud Systems:

  • CAT 25 GPM Water Injection Pump
  • Wilden 3-In. Diaphragm Mud Pump Mounted Under Rod Box



Cooling & Hydraulic System:

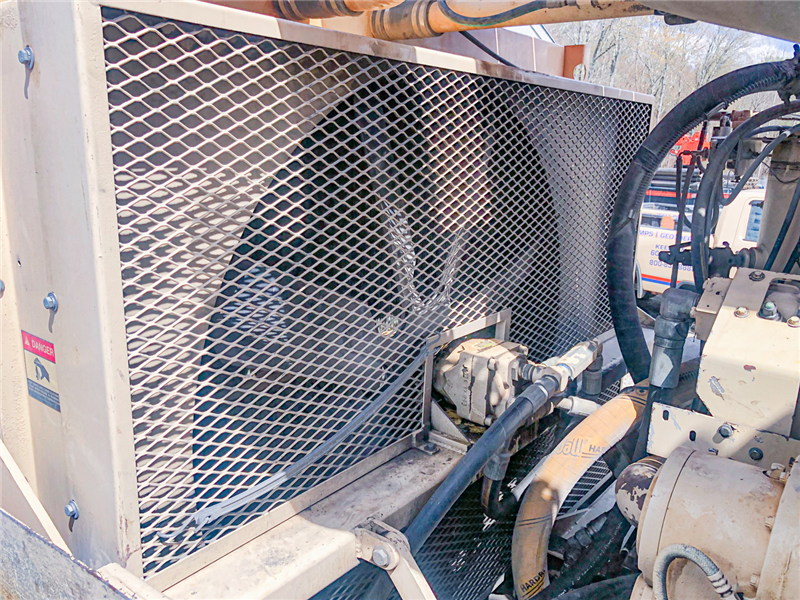

  • MASABI Multicore Cooler For Ambient Temperatures Up To 110°F
  • 55 GPM Main Hydraulic Pump



Hydraulic Oil: CITGO Clarion

Engine Oil: 5W-40 Full Synthetic

Compressor Oil: Full Synthetic



Body & Equipment:

  • Rig Fuel Capacity 285 Gallons
  • Heavy-Duty Leveling Jacks
  • Helper's Platform
  • Hinged Side Box Platform
  • Custom Tool Boxes
  • Heavy-Duty Leveling System
  • High-Clearance Design - 18 In



Location:

Eastern Region, USA
