Trident “Z” Bit; Carbide Button Cable Tool Drill Bit
- Item No
- 17441
- Condition
- New
- Manufacturer
- Trident
- Status
- Pre-Order
- Model Year
- 0
- Model No
- Z” Bit; Carbide Button Cable Tool Drill Bit
- Quantity
- 0
- Price
- Pre-Order
- Description
-
-

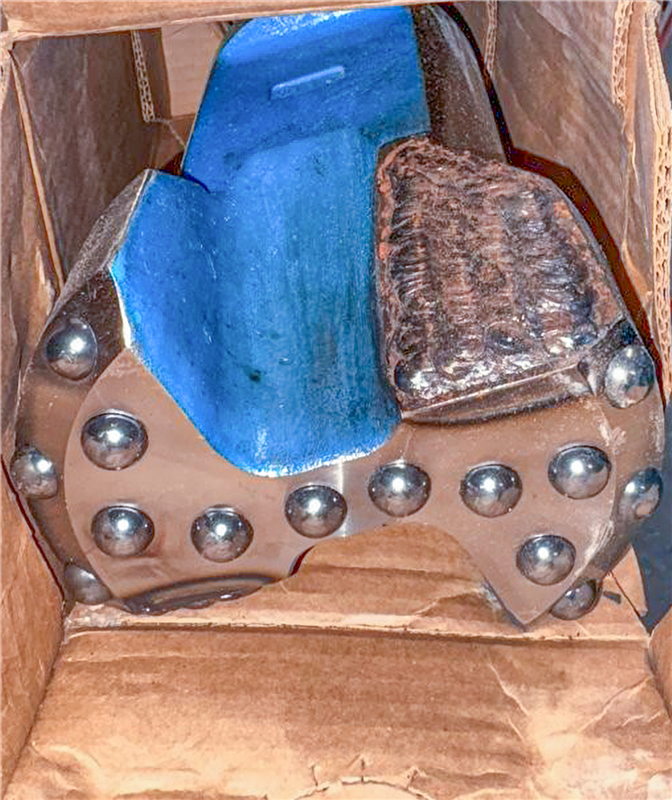

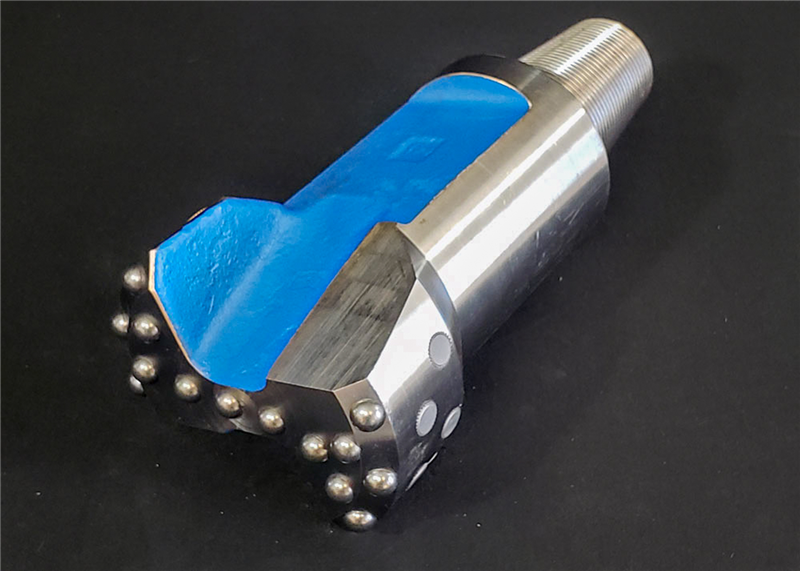

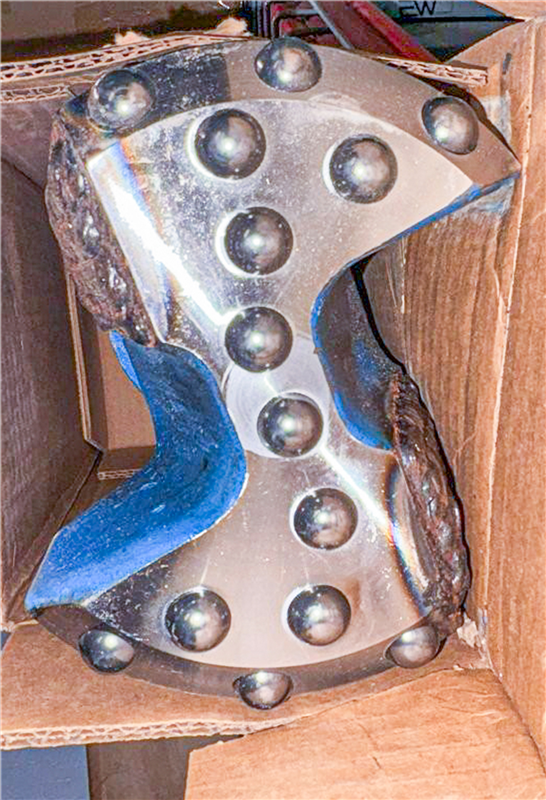

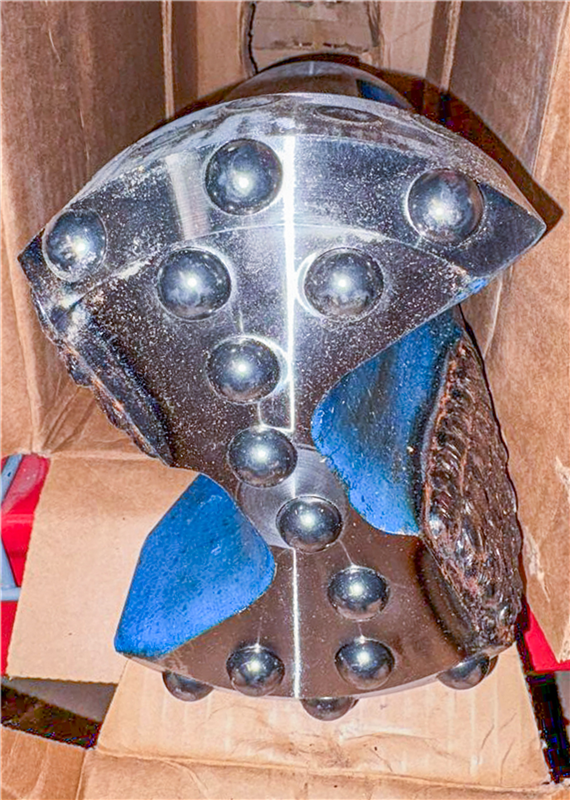

Trident “Z” Bit; Carbide Button Cable Tool Drill Bit
- (7 Threads Per Inch) Pin-Up API Tool Joint Connection
- Made In The USA
Sizes and Part Numbers:
- 8-7/8” Drill Bit, 2-3/4”x3-3/4” Thread — 87875ZD225X325PNM
- 8-3/4” Drill Bit, 2-3/4”x3-3/4” Thread — 875ZD275X375PNM
- 7-7/8” Drill Bit, 2-3/4”x3-3/4” Thread — 7875ZD275X375PNM
- 6-3/4” Drill Bit, 2”x3” Thread — 675ZD2X3PNM
- 3-7/8” Drill Bit, 1-1/2” x 2-1/4” Thread — 3875ZD15X225PNM
- 5” Drill Bit, 2-1/4” x 3-1/4” Thread — 5ZD15X225PNM
Optimized For:
- Gravel And Sandy Rock Formations
- Designed To Improve Cutting Efficiency In Difficult Gravel And Sandy Rock Conditions
Design Features:
- Scooping Action: Leading Edge Creates A Scooping Action To Improve Cutting Efficiency.
- Reduced Shoulder Area: Allows Gravel To Fall Past The Bit Easily, Reducing The Risk Of Material Becoming Wedged Against The Casing.
- Carbide Inserts: Carbide Inserts Fracture Hard Rock Within These Types Of Formations For Enhanced Drilling Performance.
Availability:
- No stock as of 8/25/2026, but available for preorder (estimated 6-week lead time).
Location:
- EWD Facility – Mifflinburg, Pennsylvania, USA
